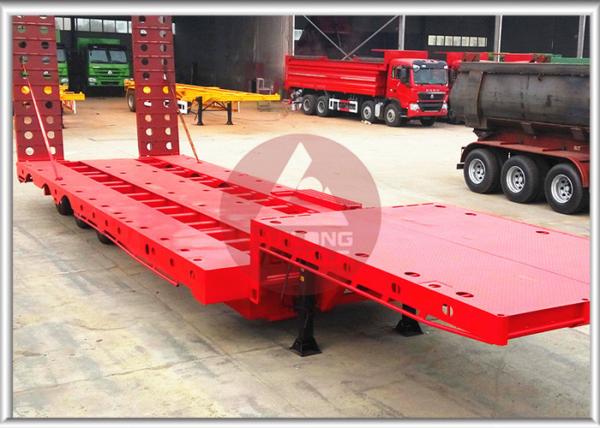

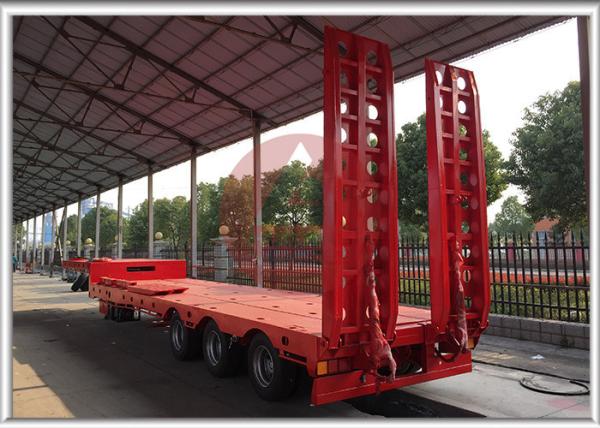

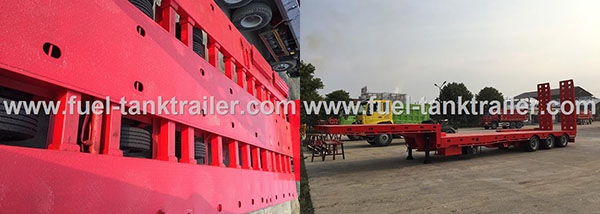

Widener Trailer Low Bed Trailer Anti-skid Widened Plate Carbon Steel
Widener Trailer Low Bed Trailer Anti-skid Widened Plate Carbon Steel
Widener Trailer Low Bed Trailer Anti-skid Widened Plate Carbon Steel
Widener Trailer Low Bed Trailer Anti-skid Widened Plate Carbon Steel
Widener Trailer Low Bed Trailer Anti-skid Widened Plate Carbon Steel
Widener Trailer Low Bed Trailer Anti-skid Widened Plate Carbon Steel
Widener Trailer Low Bed Trailer Anti-skid Widened Plate Carbon Steel
Widener Trailer Low Bed Trailer Anti-skid Widened Plate Carbon Steel
Specifications
Brand Name :
Huilong
Model Number :
Heavy Duty Trailer
Certification :
ISO9001
Place of Origin :
Suizhou, China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
200 units per month
Delivery Time :
4~6 weeks
Packaging Details :
in nude or by wax
Vehicle Dimension :
13000x3000x1550 mm
Axle Producer and Qty :
13 ton , FUWA Brand , 3 units
Tyre and Quantity :
1100R20 , 12 units
Maximum Capacity :
100,000 kg
Braking Chamber Type :
6 Double Air Chamber
Steel Spring Spec :
-10/10/10 leaf spring suspension
Description

Widener Trailer Low Bed Trailer Anti-skid Widened Plate Carbon Steel

Description:

• Main Application

The low bed trailer can transport inseparable facilities used in the industrial field like civil engineering, energy engineering, and mechanical engineering. This widener trailer is an update of the low bed trailer. The working platform can be widened into 3.5M by the hyraulic system.

• Lightening Holes

The height of the main beam and the frame is the same. Lightening holes are punched to greatly decrease the unnecessary dead load in the crossbeam.

• Antiskid and Wear-Resistant

The low bed is welded by 4mm diamond plate which is non-slip and wear-resistant. Thus, the bed is thick and durable.

The Hydraulic System

The hydraulic system is used to extend the trailer in both sides. It is powered by an independent power unit, norally it is small disiel engine.

Advantages:

• Widened Plate and Low Bed

The low bed is produced by widened plate to enlarge the area for loading over-wide devices. The ground clearance of the bed is lower than common flatbed trailer.

• Vehicle Protection

Welded connection is applied to the protection of left and right side. The rear protection is integrated into the vehicle.

• Lock Ring

Lock ring is installed under the both sides of the bed. Ropes can be used to fix the instable cargo.

• Automatic Production

The manual job and time can be reduced. Meanwhile, the damage to the goods and cost of handling operation can be decreased.

Specifications:

Overall Dimension 13000x3000x1550 mm
Curb Weight 9000 kg
Loading Capacity 100,000 kg
Axle Brand and Number 13 ton , FUWA brand , 3 units
Kingpin 2 inch (50mm) or 3.5 inch (90mm)
Landing Gear 28 ton, JOST brand , Double speed
Steel Spring -10/10/10 leaf spring suspension
Suspension System Common mechanical suspension
The Main Beam

The height of the beam is 500mm;

upper plate is 16 mm;

down plate is 18mm;

middle plate is 10 mm
Tyre and Quantity 1100R20 , 12 units
Platform Plate 4 mm diamond plate
Braking System Dual line braking system
Braking Chamber 6 double air chamber
Tool Box 1 set
Spare Tire Carrier 2 sets
Configuration
Widener Trailer Low Bed Trailer Anti-skid Widened Plate Carbon Steel
