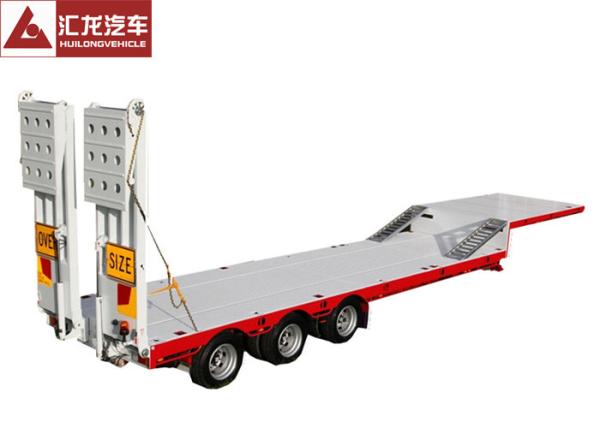

100T Heavy Duty Trailer Double Speed , Gooseneck Flatbed Trailer 13000x3000x1550 Mm
100T Heavy Duty Trailer Double Speed , Gooseneck Flatbed Trailer 13000x3000x1550 Mm
100T Heavy Duty Trailer Double Speed , Gooseneck Flatbed Trailer 13000x3000x1550 Mm
100T Heavy Duty Trailer Double Speed , Gooseneck Flatbed Trailer 13000x3000x1550 Mm
100T Heavy Duty Trailer Double Speed , Gooseneck Flatbed Trailer 13000x3000x1550 Mm
100T Heavy Duty Trailer Double Speed , Gooseneck Flatbed Trailer 13000x3000x1550 Mm
Specifications
Brand Name :
Huilong
Model Number :
Heavy Duty Trailer
Certification :
ISO9001
Place of Origin :
Suizhou, China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
200 units per month
Delivery Time :
4~6 weeks
Packaging Details :
in nude or by wax
Curb Weight :
9000 kg
Bearing Capacity :
100,000 kg
Axle Brand & Number :
13 ton , FUWA brand, 3 units
Tyre and Quantity :
1100R20 , 12 units
Platform Material :
Diamond Plate
Landing Gear :
28 ton
Description

100T Heavy Duty Trailer Double Speed , Gooseneck Flatbed Trailer 13000x3000x1550 Mm

Description:

• Wide Application

The wide trailer is adept in transferring and transporting large facilities used in highway engineering, municipal engineering and constructional engineering (e.g. pavement construction machine, paver, road roller, tracked equipment). The trailer solves difficulties in the cargo handling of large construction machinery, oil field equipment, long metals, tubing, sucker rod.

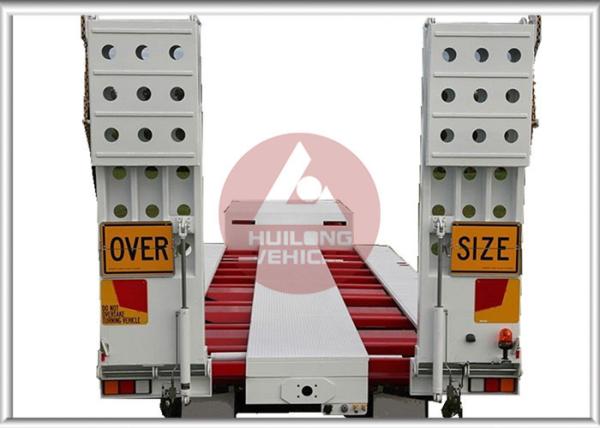

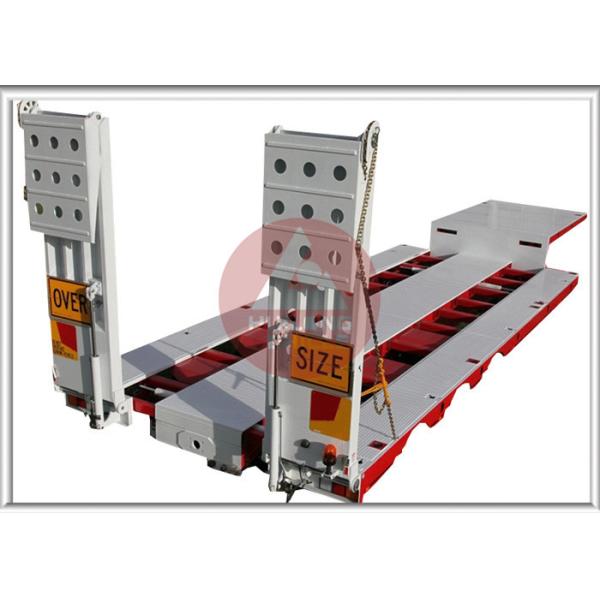

• Automatic Jacking System

The hydraulic pressure increasing rod connected with the ramp can achieve the automatic jacking. All kinds of tracked equipments can crawl on and off the low bed without any help from the lifting equipment and auxiliary tools. Therefore, tracked equipments with different width can be transported.

Advantages:

• Widen Flatbed

The flatbed of the low bed trailer is widened, so the trailer has a larger cargo space and has the ability to carry the wider machinery.

• Balance Suspension

The suspension system can bear the stress equally regardless of the smoothness and bumpiness of the road. Thus, the damage and safety of the vehicle is confirmed during the transportation.

• Non-Slip Strip

Non-slip strip is installed to secure the transported vehicle.

Specifications:

Overall Dimension 13000x3000x1550 mm
Curb Weight 9000 kg
Loading Capacity 100,000 kg
Axle Brand and Number 13 ton , FUWA brand, 3 units
Kingpin 2 inch (50mm ) or 3.5 inch ( 90mm )
Landing Gear 28 ton, JOST brand , Double speed
Steel Spring -10/10/10 leaf spring suspension
Suspension System Common mechanical suspension
The Main Beam

The height of the beam is 500mm;

upper plate is 16 mm;

down plate is 18mm;

middle plate is 10 mm
Tyre and Quantity 1100R20 , 12 units
Platform Plate 4 mm diamond plate
Braking System Dual line braking system
Braking Chamber 6 double air chamber
Tool Box 1 set
Spare Tire Carrier 2 sets
Gallery
100T Heavy Duty Trailer Double Speed , Gooseneck Flatbed Trailer 13000x3000x1550 Mm
