Drop Deck Heavy Duty Flatbed Trailer , 8 Ton Heavy Load Trailer Dual Hydraulic Ramps
Drop Deck Heavy Duty Flatbed Trailer , 8 Ton Heavy Load Trailer Dual Hydraulic Ramps
Drop Deck Heavy Duty Flatbed Trailer , 8 Ton Heavy Load Trailer Dual Hydraulic Ramps
Drop Deck Heavy Duty Flatbed Trailer , 8 Ton Heavy Load Trailer Dual Hydraulic Ramps
Drop Deck Heavy Duty Flatbed Trailer , 8 Ton Heavy Load Trailer Dual Hydraulic Ramps
Drop Deck Heavy Duty Flatbed Trailer , 8 Ton Heavy Load Trailer Dual Hydraulic Ramps
Drop Deck Heavy Duty Flatbed Trailer , 8 Ton Heavy Load Trailer Dual Hydraulic Ramps
Drop Deck Heavy Duty Flatbed Trailer , 8 Ton Heavy Load Trailer Dual Hydraulic Ramps
Specifications
Brand Name :
Huilong
Model Number :
Heavy Duty Trailer
Certification :
ISO9001
Place of Origin :
Suizhou, China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
200 units per month
Delivery Time :
4~6 weeks
Packaging Details :
in nude or by wax
Designed Capacity :
60Ton
Wheel Base :
1310 (mm)
Tyre Setting :
10.00R20 / 12
King Pin Config :
2’ & 3.5’
Tare Weight :
8 Ton
Ramp Qty :
2
Description

Drop Deck Heavy Duty Flatbed Trailer , 8 Ton Heavy Load Trailer Dual Hydraulic Ramps

Description:

• Core Application

Drop deck heavy equipment transport trailer can load oversize and overweight cargoes. The basic type of heavy-duty trailer is single flatbed trailer which is equipped with the connector transferring the horizontal and vertical stress to the tractor. A variety of drop deck structures are used to lower the bearing surface and meet the demand of transporting various goods.

• Flexibility and Steadiness

The trailer has competitive edges below: the height of the cargo bed is changeable; the radius of turning circle is small; the backing is convenient; the trailer body can be adjusted to keep the balance and the steadiness of goods when the trailer is running downhill or uphill.

Advantages:

• Passing Ability

The axle goes through the frame to effectively reduce the ground clearance of the cargo bed and the load of each one is even. The increscent passing ability can load goods with large diameter.

• Special Processing

Pin roll of each joint part is made of alloy steel and is subjected to a special processing technique.

• Hydraulic Ramps

Dual hydraulic ramps are installed at the rear end of the trailer to help the transported vehicle move onto or leave the cargo bed by the power itself. The application of hydraulic ramps automates the retractile system and solves the manual management.

Specifications:

Tare Weight About 8 Ton
Max Loading Capacity 60Ton
Wheel Base 1310 (mm)
Tyre Specifications 10.00R20 / 12
Tyre 12 tyres
Axle 3 Axles
Axle-load 13 Tonnage
King Pin 2’ & 3.5’ changeable
Landing Leg 28ton with 80Tons static capacity
Pieces of Leaf-Spring 10pcs
Suspension Heavy Duty Leaf Spring
Dimensions 12500x2500x1500 (mm)
Material

Q345B manganese plates,

automatic submerged arc welded;

Height 500mm , through cross beams Q235;

Floor, 3mm management plate
Brake System Dual line braking system with automatic air chambers

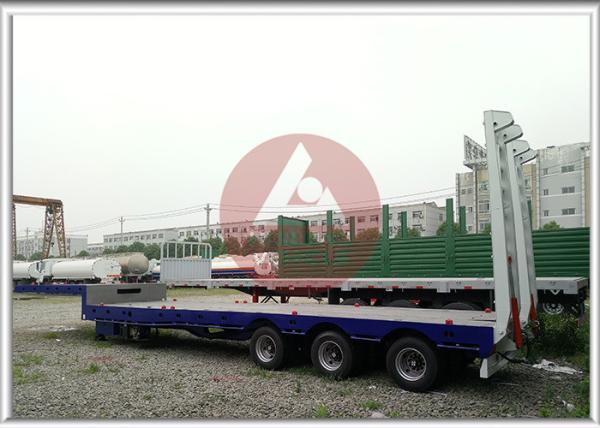

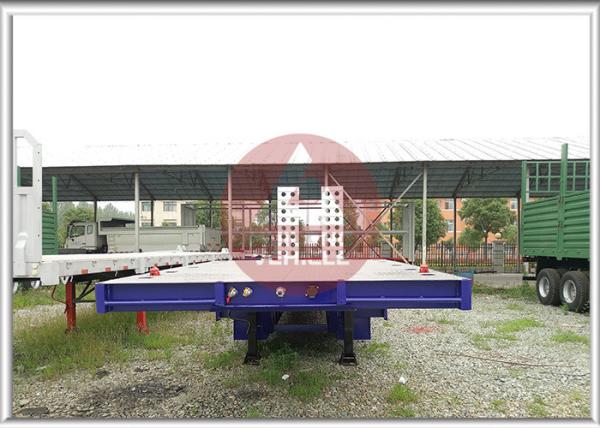

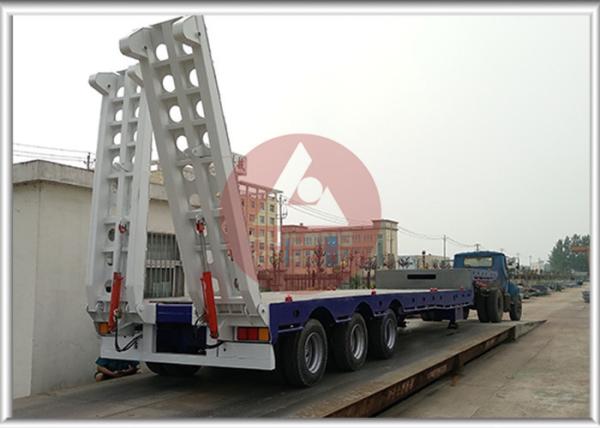

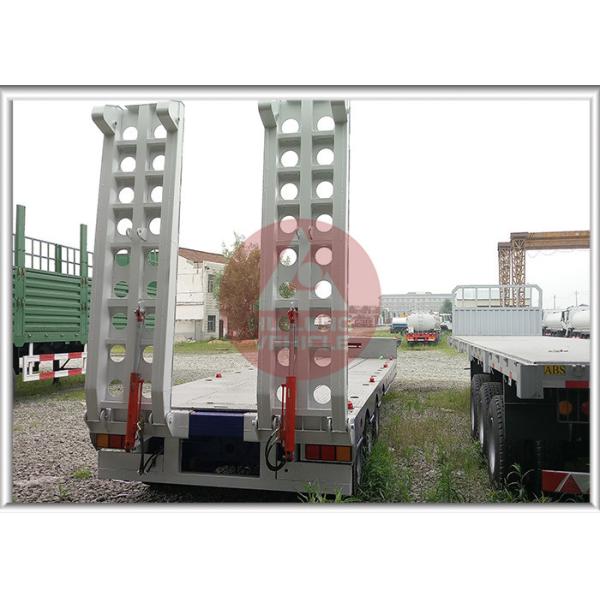

Gallery
Drop Deck Heavy Duty Flatbed Trailer , 8 Ton Heavy Load Trailer Dual Hydraulic Ramps
