Air Suspension Cargo Container Trailer Yellow Color Dynamic Balance With Landing Gear
Air Suspension Cargo Container Trailer Yellow Color Dynamic Balance With Landing Gear
Air Suspension Cargo Container Trailer Yellow Color Dynamic Balance With Landing Gear
Air Suspension Cargo Container Trailer Yellow Color Dynamic Balance With Landing Gear
Specifications
Brand Name :
Huilong
Model Number :
Cargo Container Trailer
Certification :
ISO9001
Place of Origin :
Suizhou, China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
200 units per month
Delivery Time :
4~6 weeks
Packaging Details :
in nude or by wax
Suspension Sys. :
Air Suspension
Metalworking :
Submerged Arc Welding (SAW)
Spring Model :
Leaf Spring / Air Bag
Twist Lock Qty :
12
Payload :
45000KGS
Color :
Yellow
Description

Air Suspension Cargo Container Trailer Yellow Color Dynamic Balance With Landing Gear

Description:

• Wide Application

Flatbed container semi-trailers usually transport most of the goods that can be packed in containers. Heavy duty truck, rail vehicles, mining machinery, forestry machinery, construction machinery and other heavy-duty cargoes can be transported as well.

• Safety and Efficiency

The container trailer is generally designed with concave beam (or # shape) frame. The lower the centre of gravity is, the better the security is. The ability for transporting overhigh cargoes and passing the barrier on the top is stronger.

Advantages:

• Fast Loading and Unloading

The container can be quickly loaded and unloaded through using a container transport trailer. The goods also can be quickly transferred from one vehicle to another.

• Equipped with Air Suspension

This semi-trailer is equipped with an air suspension which can improve comfort of driving. It is suitable for medium and long distance transportation, and transporting vulnerable and fragile goods.

• Dynamic Balance

A mass balancer is equipped between front and rear leaf spring, which can make the deflection equally change and balance evenly the force of front and rear axle.

Specifications:

DIMENSIONS
Tare Weight 7700KGS Payload 45000KGS
Overall Length 12400mm Overall Width 2480mm
Technical Data
Chassis

Heavy duty and extra durability designed I beam;

Opting for high tensile steel Q345;

Welded by automatic Submerged-Arc processes;

Top Flange 14mm, width 140mm;

Middle Flange 6mm;

Bottom Flange 16mm, width 140mm
Axle 3 axles
Brand name: BPW, L1 or FUWA-optional upon choice
Suspension Air suspension
Spring Leaf spring or air bag
King Pin JOST brand 2” Bolt-in King Pin
Landing Gear

JOST brand Two-speed;

manual operating;

heavy duty landing gear
Wheel Rim 8.5-20 ,9.0-20, 8.25-22.5, 9.0-22.5 steel wheel rim
Twist Lock 12 no. of ISO twist lock for 1x20ft, 2x20ft; 1x40ft container
Tyre 11.00R20 , 12.00R20, 11R22.5,12R22.5,315/80R22.5
Spare Tyre One set of spare tire including a carrier
Braking System

WABCO RE 6 relay valve;

T30/30+T30 Spring brake chamber;

40L air tanks
Painting

Complete Chassis sand blasting to clean rust;

1 coat of anticorrosive prime;

2 coats of final paint
Accessories One standard tool box

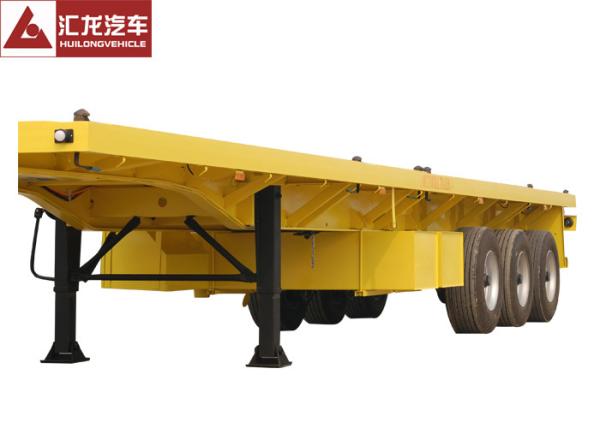

Gallery
Air Suspension Cargo Container Trailer Yellow Color Dynamic Balance With Landing Gear
