Vertical Type Dry Bulk Trailer , Cement Tanker Trailer Mechanical Suspension
Vertical Type Dry Bulk Trailer , Cement Tanker Trailer Mechanical Suspension
Vertical Type Dry Bulk Trailer , Cement Tanker Trailer Mechanical Suspension
Vertical Type Dry Bulk Trailer , Cement Tanker Trailer Mechanical Suspension
Specifications
Brand Name :
Huilong
Model Number :
Dry Bulk Trailer
Certification :
ISO9001
Place of Origin :
Suizhou, China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
200 units per month
Delivery Time :
4~6 weeks
Packaging Details :
in nude or by wax
Vessel Material :
Q235/5mm steel
Tank Type :
Vertical Type
No. of Axle :
2
Quadratic Blow :
1” diameter check valve
Suspension Type :
Common mechanical
Steel Spring :
10/10/10
Description

Vertical Type Dry Bulk Trailer , Cement Tanker Trailer Mechanical Suspension

Description:

• Main Usage

Vertical type dry bulk tank trailer is also one type of dry bulk tank trailer, but the application is wider. It is not only used to transport the powder material, but also different types of particles.

The tank trailer consists of special vehicle chassis, several tanks, pipeline systems, and automatic unloading devices. It is the transportation vehicle often used by cement plants, cement warehouses and large construction sites. A lot of packaging materials and work force can be saved.

• Multipurpose Tank

This product is vertical type dry bulk tank trailer with 2 axles. It has 3 tanks and can be used to hold 1-3 different dry powders. Compared to horizontal tanker, it can transport more kinds of dry powder.

Advantages:

• Sturdy and Durable

The high-strength carbon steel plate with a thickness of 5mm is used for production, so the tank body is sturdy. Advanced welding technology can extend the service life and make the quality more reliable.

• Easy to Discharge

The vertical dry powder tank trailer can be unloaded by gravity, which is more convenient and quicker. Less manpower and resources are involved.

• Bulk Transportation

It can be used for the bulk transportation of various powders and granular materials.

Specifications:

Tare Weight 11000Kg
Loading Capacity 25m3
Axle Weight Load 13T
Main Beam Material Q345 Steel
Height(mm) 500
Middle Plate(mm) 8
Down Plate(mm) 16
King Pin 2” or 3.5” traction pin
Dimensions(L*W*H) 11980*2500*4000mm
Tank Body & End Plate Q235/5mm steel & 6mm steel sheet shape: V type
Discharge Valve & Pipe 4” disc valve & 4” seamless steel tube
Air-charging System 2” main hole
2” check valve
1.5 safe valve
0.4 Mpa. gauge
Quadratic Blow 1” diameter check valve
Suspension Type Common mechanical
Steel Spring 10/10/10
Axle 2 Axle FUWA Brand
Wheel Rim 9.0-22.5 steel wheel rim
Tire

Spec: 12R22.5;

Number of Tire: 8 pieces
Brake Chamber 4 big chamber
Brake Valve KTL Line Brake/WEBCO
Brake System Dual Line Brake system
Tool Box 1 set standard tool box
Light Tail lamp with turn signal, brake light & reflector, side lamp etc.
Spare Tire Carriers 2 pieces
Leading Gear 28T, Manual operating, Heavy duty landing gear
Engine

Diesel engine: Weichai brand model

Power: 4102.44Kw
Gallery

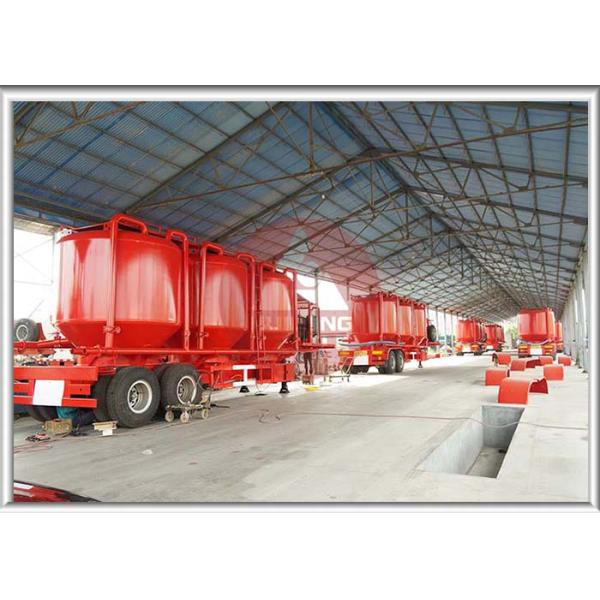

Vertical Type Dry Bulk Trailer , Cement Tanker Trailer Mechanical Suspension
