Heavy Duty Auto Transport Trailer 325HP Diesel Engine Hydraulic Control System
Heavy Duty Auto Transport Trailer 325HP Diesel Engine Hydraulic Control System
Heavy Duty Auto Transport Trailer 325HP Diesel Engine Hydraulic Control System
Heavy Duty Auto Transport Trailer 325HP Diesel Engine Hydraulic Control System
Heavy Duty Auto Transport Trailer 325HP Diesel Engine Hydraulic Control System
Heavy Duty Auto Transport Trailer 325HP Diesel Engine Hydraulic Control System
Specifications
Brand Name :
Huilong
Model Number :
Car Carrier Trailer
Certification :
ISO9001
Place of Origin :
Suizhou, China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
200 units per month
Delivery Time :
4~6 weeks
Packaging Details :
in nude or by wax
Chassis Trademark :
FAW
Driving Style :
4x2
Max. Speed :
110km/h
Valid Cars :
5
Carrier Size :
12000x2550x4000mm
Net Payload :
7500kgs
Description

Heavy Duty Auto Transport Trailer 325HP Diesel Engine Hydraulic Control System

Descriptions:

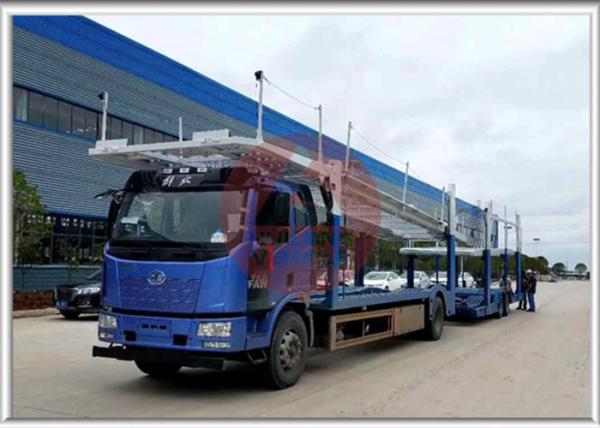

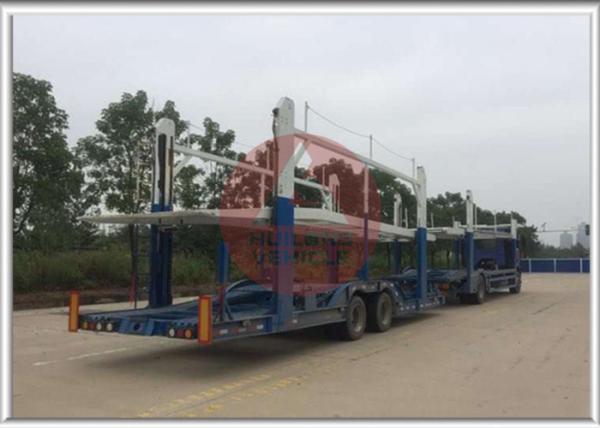

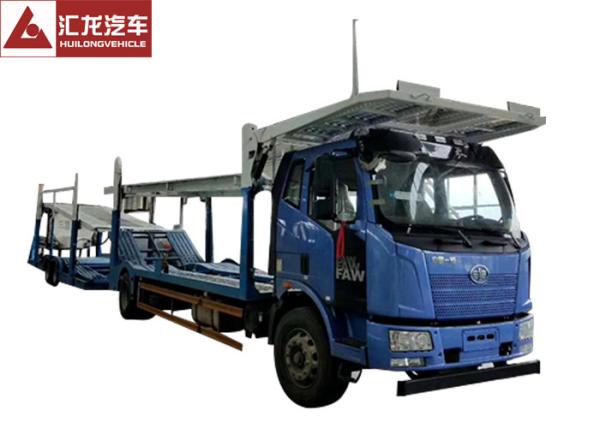

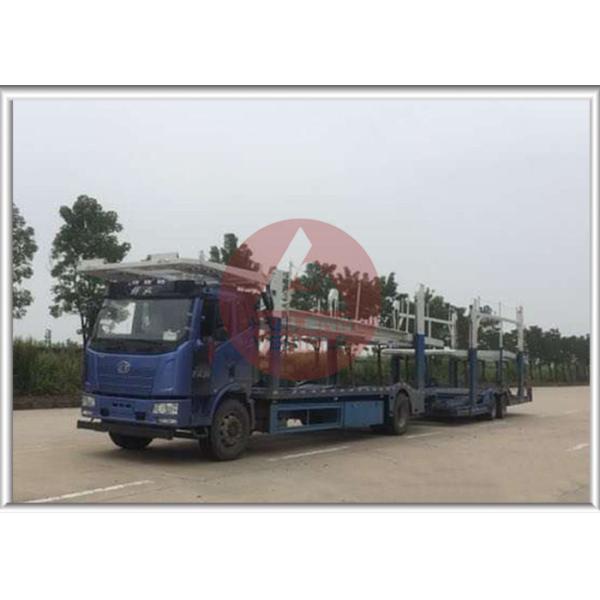

The central axle car carrier trailer normally uses the low truck cabin to suit the double layer structure. With the height limitation of 4 meters, our factory uses the low cabin truck to fabricate this car carrier truck. The mentioned central axle trailer is a FAW 4x2 truck chassis with car carrier body and car carrier trailer. I could load 10 cars in total.

Advantages:

  1. The central axle trailer length is normally about 10m, while the traditional car carrier trailer is about 13m~16m. The turning radius is comparatively shorter and the trailer is more mobile.
  2. Since the central axle car carrier trailer is detachable type from the front car carrier truck, the front car truck could work solely, especially to full fill the task inside the city for the 4S shops.
  3. Because of the design of central axle, most weight of the trailer is borne by itself. The vertical load transmitted to the tractor is small. This feature can guarantee the stable performance of the carrier and the safety.
  4. The car carrier trailer only has one hinge joint and the operation is the same as common semi-trailers. It takes less time for drivers to learn skills and adapt for new conditions. The difference just lies in the driving track caused by the trailer length.

Specifications:

Product Name Car carrier truck
Brand Huilong
Tare Weight 9650kgs
Rated Payload 7500kgs
Overall Dimension 12000x2550x4000mm
Chassis
Brand FAW
Driving Model 4x2
Engine Horse Power Diesel engine, 325HP
Max Speed 110km/h
Tyre 11R22.5, 6 tyres
ABS With ABS
Body Parts
Car Carrier Parts

Car carrier truck for 5 cars

Car carrier trailer for 5 cars
Hydraulic System Hydraulic control system for 2nd layer
