4 Sets Hydraulic Cylinder Auto Carrier Trailer German Suspended Tech Submerged Arc Welding
4 Sets Hydraulic Cylinder Auto Carrier Trailer German Suspended Tech Submerged Arc Welding
4 Sets Hydraulic Cylinder Auto Carrier Trailer German Suspended Tech Submerged Arc Welding
4 Sets Hydraulic Cylinder Auto Carrier Trailer German Suspended Tech Submerged Arc Welding
4 Sets Hydraulic Cylinder Auto Carrier Trailer German Suspended Tech Submerged Arc Welding
4 Sets Hydraulic Cylinder Auto Carrier Trailer German Suspended Tech Submerged Arc Welding
Specifications
Brand Name :
Huilong
Model Number :
Car Carrier Trailer
Certification :
ISO9001
Place of Origin :
Suizhou, China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
200 units per month
Delivery Time :
4~6 weeks
Packaging Details :
in nude or by wax
Chassis Material :
Q345B
Main Construction :
Skeletal Structure
Suspended Tech :
German Design
Cylinder Qty :
4 sets Hydraulic Cylinder
No. of Relay Valve :
6
Metalworking :
Submerged Arc Welding
Description

4 Sets Hydraulic Cylinder Auto Carrier Trailer German Suspended Tech Submerged Arc Welding

Descriptions:

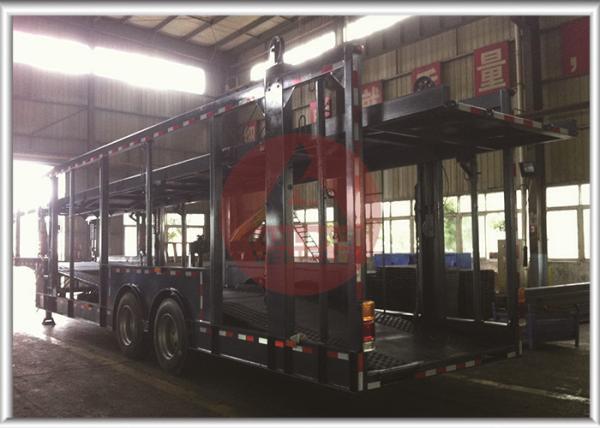

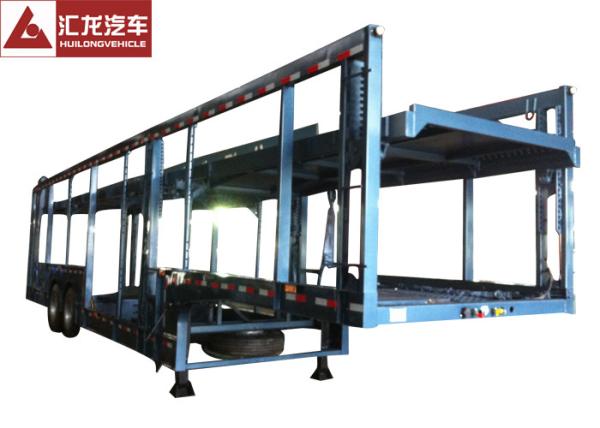

The skeletal type car carrier trailer does not have out side sheet cover. It is lighter, lower cost, and less fuel consumption.

The enclosed type or box type car carrier, it has steel sheet covers in different directions of the trailer. There are also rear doors. This type of car hauler could provide max protection for the cars. However it is heavy, cost higher and consume more fuel.

The 2 axle single tire car hauler has 2 axles, and 4 tires in total. This type car hauler normally has concave floor which is very close to the earth and leave more space for car loading.

The 2 axle double tire car carrier has 2 axles and 8 tires. This trailer chassis is flat type with mechanical suspension. The ground clearance is 1250mm, the loading space is limited but the payload is largely enhanced.

Advantages:

  1. 2 axle skeletal type car carrier concave shape floor, low central gravity and more space for loading.
  2. Super long car hauler trailer for 12 cars.

Specifications:

Product Name Car carrier semi trailer
Brand Huilong
Overall Dimension 14100x3000x4000mm
Chassis
Main Construction

Overall skeletal structure,

Hydraulic lifting double-deck,

Telescope rear ladder
I Beam & Chassis

Overall loading chassis;

Opting for high tensile steel Q345B,

Welded by automatic Submerged-Arc processes.
Axle 2 axles
FUWA 13 ton
Suspension German design mechanical suspension
Hydraulic 4 sets Hydraulic Cylinder
Leaf Spring 8-piece leaf spring.
King Pin JOST brand 2” Bolt-in King Pin
Landing Gear

JOST brand Two-speed,

Manual operating,

Heavy duty landing gear
Wheel Rim 7.0-20 steel wheel rim
Tire 9.00R20 with one spare tire
Spare Tire One sets of spare tire
Braking System

WABCO RE 6 relay valve;

T30/30+T30 Spring brake chamber;

45L air tanks
Painting

Complete Chassis sand blasting to clean rust,

1 coat of anticorrosive prime, 2 coats of final paint
Body Parts
Car Carrier Parts Double layer frame structure for 14 cars
Hydraulic System Hydraulic control system for 2nd layer
Gallery
4 Sets Hydraulic Cylinder Auto Carrier Trailer German Suspended Tech Submerged Arc Welding
