Double Layer Car Carrier Trailer Simple Structure Large Loading Space Double Axle
Double Layer Car Carrier Trailer Simple Structure Large Loading Space Double Axle
Double Layer Car Carrier Trailer Simple Structure Large Loading Space Double Axle
Double Layer Car Carrier Trailer Simple Structure Large Loading Space Double Axle
Double Layer Car Carrier Trailer Simple Structure Large Loading Space Double Axle
Double Layer Car Carrier Trailer Simple Structure Large Loading Space Double Axle
Specifications
Brand Name :
Huilong
Model Number :
Car Carrier Trailer
Certification :
ISO9001
Place of Origin :
Suizhou, China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
200 units per month
Delivery Time :
4~6 weeks
Packaging Details :
in nude or by wax
Loader Dimension :
13700x2550x4000
Cars Qty :
6
Carrier Structure :
Double Layer Structure
Tyre Diameter :
20"
Tyre Structure :
Radial Tire
Tyre Width :
11"
Description

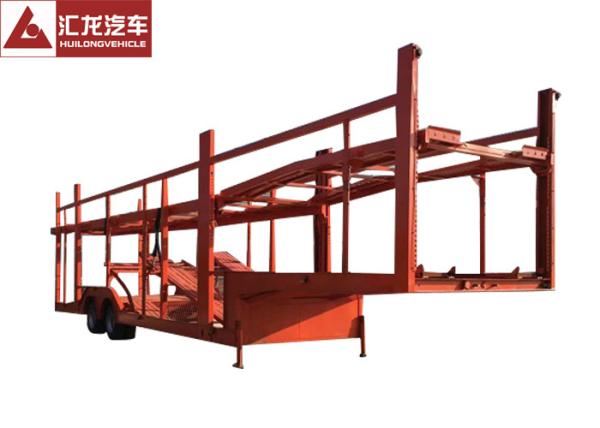

Double Layer Car Carrier Trailer Simple Structure Large Loading Space Double Axle

Descriptions:

The car hauler is a highly customized product and it could be made according to different no. of cars, different length, and different structures. The bottom frame is I beam structure. The whole vehicle adopts the sub-merge automatic welding and the CO2 protection welding. After the welding completion, we will do the sand blasting on the whole trailer to remove the stress, and the rust. We make every step carefully and to keep good quality and beautiful out appearance.

The second floor is normally made by 2 or 3 section. We use the hydraulic cylinder or the chain block to adjust the height of 2nd floor.

The car hauler also equipped with tool box, spare tire carrier.

The car carrier is fixed with ABS to improve the safety standard.

Advantages:

  1. Double layer structure car hauler to load more cars
  2. Less weight, simple structure, easy to load and off load the cars.
  3. Large loading space: The rear axle is the double-axle structure. Two tyres are equipped with each axle. Hence, there are four tyres in all. Due to the small ground clearance, the car hauler with the concave beam has a large loading space.
  4. Professional equipments: Hand chain hoist is used to lift the top frame. The standard configuration is two hand chain hoists with 1 ton, excluding cooling system for wheel hubs. The all-hydraulic vehicle doesn't install hand chain hoist. The bracket assembly-spare wheel is designed with the portal frame and fixed by two bolts.

Specifications:

Product Name Car carrier car loader car transporter semi trailer
Brand Huilong
Tare Weight 7350kgs
Rated Payload 12500kgs
Overall Dimension 13700x2550x4000
Axle 2 axle, 12Ton capacity axle
Wheel Base 7830+1350mm
Tyre 11.00R20, 4pcs tyres
ABS With ABS
Structure Double layer structure for 6 cars
Hydraulic System Hydraulic control system for 2nd layer

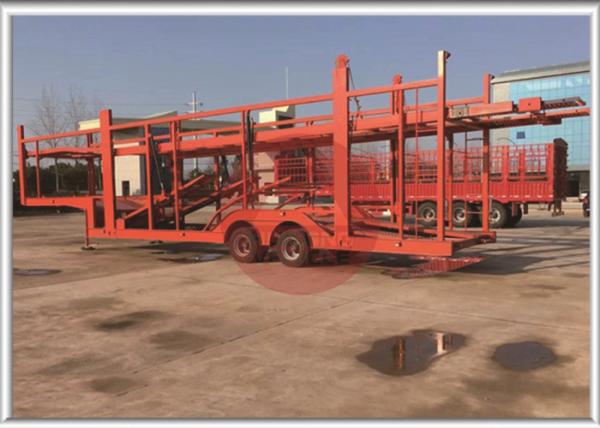

Gallery
Double Layer Car Carrier Trailer Simple Structure Large Loading Space Double Axle
