Specifications
Brand Name :
Huilong
Model Number :
Heavy Duty Trailer
Certification :
ISO9001
Place of Origin :
Suizhou, China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
200 units per month
Delivery Time :
4~6 weeks
Packaging Details :
in nude or by wax
Allowable Payload :
40000kg
Rated G.V.W.R :
47500kg
Landing Gear :
Two speed
Motorcycle Technology :
ABS
Side Beam Material :
Channel Steel
Rim Config :
8.5-20, 12PCS
Description

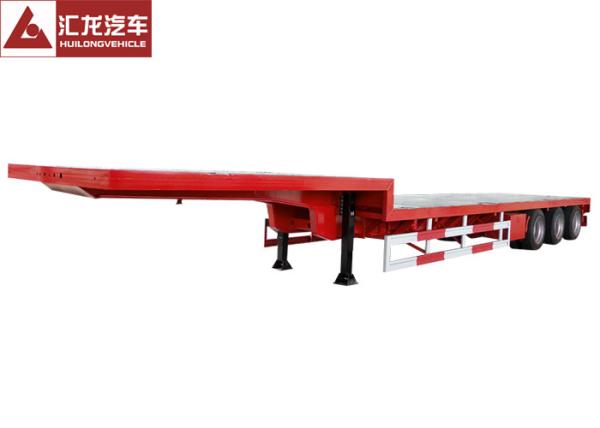

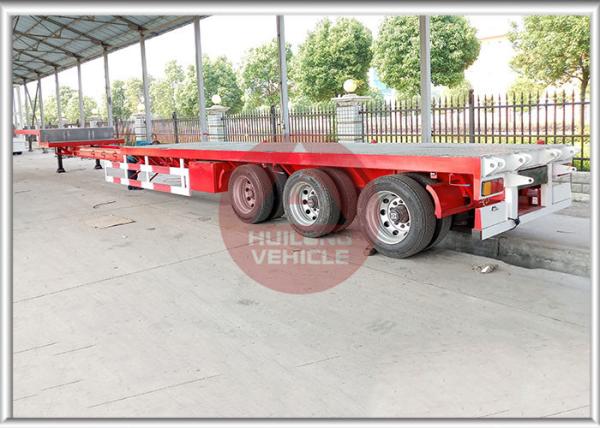

Wind Blade Heavy Equipment Trailer Extendable Drop Deck For Cargo Tranportation

Description:

• Main Usage

The extendable drop deck trailer is designed to transport the rotor blade of wind turbine, or other types of super long items. The low bed structure decreases the height of the gravity center, improves the stabilization and adapts for various road conditions. It also could work as a heavy duty low bed trailer to transport the normal machines and quipments.

• Extendable Body

The extendable body can transport different kinds of rotor blades. The original lenght of the trailer is 13M. It could extend to 17M, 20M, 24M according to different project. There isn't any extra power for the extendable organ. The extendable force comes from the mechanical power when the tractor is moving.

Advantages:

Simple structure, no need of extra power for extendable organ.

Multi function, it could work as a normal container trailer, or low bed trailer for equipment transport.

Specifications:

Dimension 13000×2500×1540(mm)
Kingpin Setting 800(mm)
Kingpin Plate Height 1203(mm)
Wheel Base 7400mm+1310mm+1310mm
Tare Weight 9500kg
Payload 40000kg
G.V.W. 49500kg
Landing Gear Two speed manual operation type
Kingpin 3.5" welded type
Brake System Dual line pneumatic brake system
ABS YES
Brake Chamber Type 30/30 spring brake system on all axles
Suspension Air suspension or mechanical suspension for option
Axle FUWA / BPW axle, 13 ton capacity/set, 3PCS
Tire 12.00R20, 12PCS
Rim 8.5-20, 12PCS
Floor 3mm checked plate
Twist Lock 4 sets
Main Beam 500/14/6/16
Side Beam 16# channel steel
Cross Beam Square tube
Tool Box 1 pcs
Spare Tire Carrier 2 units
Configuration
Wind Blade Heavy Equipment Trailer Extendable Drop Deck For Cargo Tranportation

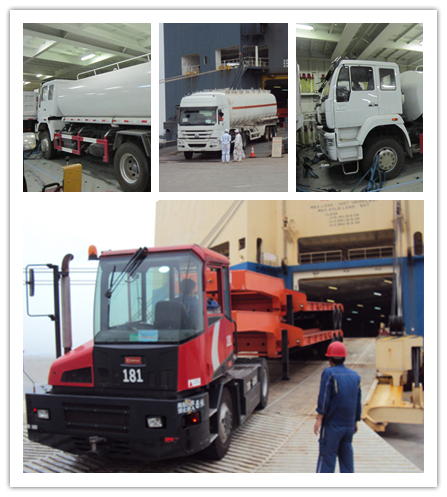

The shipment and delivery

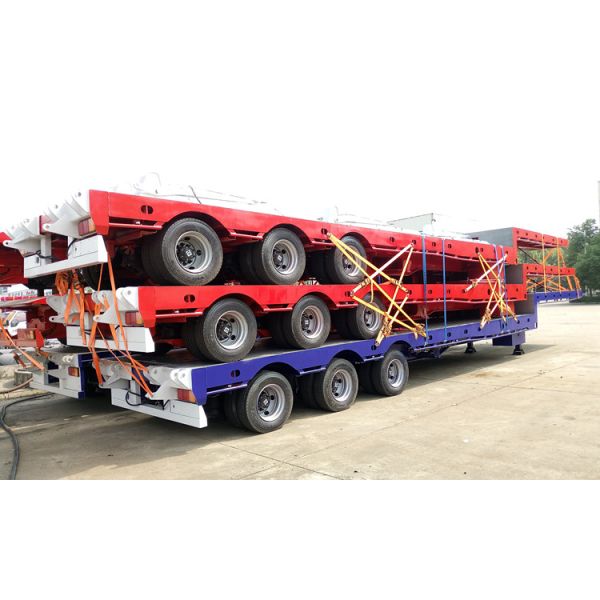

The trailers could be shipped by roro or bulk vessel, 3 units as one package.

In nude or by wax.

Wind Blade Heavy Equipment Trailer Extendable Drop Deck For Cargo Tranportation

Wind Blade Heavy Equipment Trailer Extendable Drop Deck For Cargo Tranportation
