Road Train B Heavy Duty Utility Trailer 30000kg Payload 3mm Checker Plate
Road Train B Heavy Duty Utility Trailer 30000kg Payload 3mm Checker Plate
Road Train B Heavy Duty Utility Trailer 30000kg Payload 3mm Checker Plate
Road Train B Heavy Duty Utility Trailer 30000kg Payload 3mm Checker Plate
Specifications
Brand Name :
Huilong
Model Number :
Heavy Duty Trailer
Certification :
ISO9001
Place of Origin :
Suizhou, China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
200 units per month
Delivery Time :
4~6 weeks
Packaging Details :
in nude or by wax
Trailer Qty :
dual
Trailer Type :
Road Train
Max Payload :
30000kg
Trailer Size :
B-Double
Tyre Scope :
11.00-20, 12.00-20, 11.00R20; 12.00R20, 11R22.5, 12R22.5
Floor Config :
3mm checker plate
Description

Road Train B Heavy Duty Utility Trailer 30000kg Payload 3mm Checker Plate

Description:

• Chief Application

B double trailer is help to connect different trailers together to make a road train trailer. Road train normally consists of one tractor head and several trailers. It is normally used in wild and open area.

• Train Structure

For B double trailer, there is a fifth wheel on the rear part of the trailer. The fifth wheel is used to connect the trailers behind. By this structure, the trailers could be connected one by one to be a road train.

Advantages:

Simple connection to connect each other.

To full fill the tast of heavy loading, large qty or large volume transport

Specifications:

DIMENSIONS
Tare Weight 9000kg Payload 30000kg
Overall Length 12000mm Overall Width 2480mm
Technical Data
Chassis

Heavy duty and extra durability designed I beam;

Opting for high tensile steel Q345B;

Welded by automatic Submerged-Arc processes;

Top Flange 14mm, width 140mm;

Middle Flange 6mm;

Bottom Flange 16mm, width 140mm
Axle 3 axles
Brand Name: BPW, L1, or FUWA
Suspension Mechanical suspension or air suspension
Floor 3mm checker plate
Leaf Spring Leaf spring or air bag
King Pin 2” Bolt-in King Pin
Landing Gear Two-speed, manual operating, heavy duty landing gear
Wheel Rim 8.5-20, 8.25-22.5, 9.0-22.5
Tyre

11.00-20, 12.00-20, 11.00R20;

12.00R20, 11R22.5, 12R22.5
Twist Lock

12 nos. of ISO twist lock for 1x20ft, 2x20ft, 1x40ft container;

The retractable central locks can be laid down
Spare Tire One set of spare tire including a carrier
Braking System

WABCO RE 6 relay valve;

T30/30+T30 Spring brake chamber;

45L air tanks
Painting

Complete Chassis sand blasting to clean rust;

1 coat of anticorrosive prime, 2 coats of final paint
Accessories One standard tool box

Gallery

Road Train B Heavy Duty Utility Trailer 30000kg Payload 3mm Checker Plate

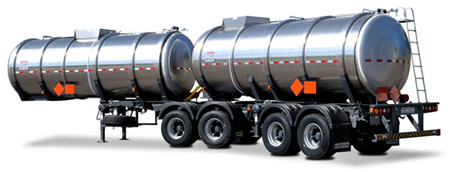

B double fuel tankers

Road Train B Heavy Duty Utility Trailer 30000kg Payload 3mm Checker Plate
