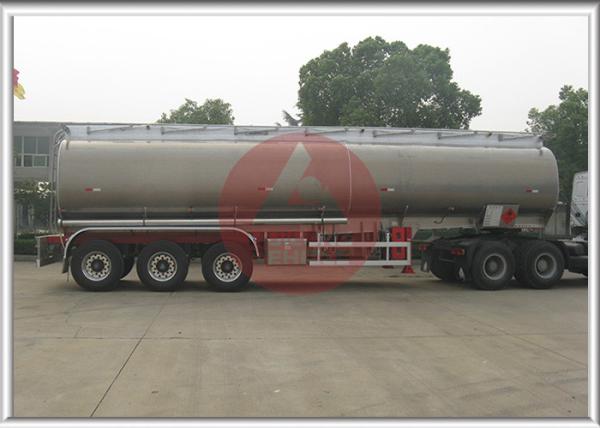

Bottom Loading Petroleum Tank Trailer Vapor Recovery System Equipped With A Pump

Description:

• Main Application

The aluminum fuel tank trailer is to transport the fuel, oil, lubricates, palm oil, edible oil etc. They are widely used for transporter, logistic company, oil field. Even though the price of aluminum fuel tank trailer is much higher than the carbon steel tank trailer, it is still widely accepted by the customer because of their lower operation cost. It is much more economic than the carbon steel tank in fuel consumption, and it could load more fuel because of the lower tare weight.

• Bottom Loading

There are 2 types of fuel loading method, one is from the manhole cover, oil factory or station could load the fuel directly though the manhole cover. Though the manhole loading, people have to climb up to the trailer and then operate. The other way is the bottom loading method. People could easily connect the trailer and the oil factory oil station and load the fuel.

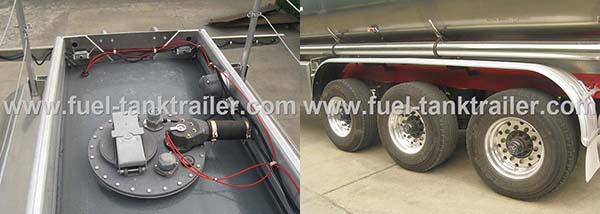

The bottom loading system mainly includes the bottom loading valve/discharge valve, vapor recovery system, optical sensor, and emergency cut bottom.

Advantages:

• Superior Product

Our company pays attention to the production of fuel tanks. We have many years of experience and good reputation in the production of tank trailers. The quality of our products is absolutely reliable and all quoted prices are ex-factory prices.

• Vapor Recovery System

A vapor recovery system is equipped with to prevent oil and gas from being emitted into the air, protecting the environment and reducing potential safety hazards.

• Equipped with a Pump

In order to improve the efficiency of our products, our fuel tank trailer is equipped with a pump. It will take the power from the engine of the tractor, and then pump the fuel out.

Specifications:

Kerb Mass (kg)	7450
Gross Weight(kg)	42500
External Dimensions(mm)	11980x2500x3550
Wheelbase(mm)	7200+1310+1310
Loading Capacity (Liter)	45000
Material	Aluminum Alloy: thickness is 5-7mm.
Axle	13Ton x 3 axle, FUWA brand
Suspension	air bag suspension, BPW brand
Landing Gear	JOST brand two-speed; manual operating; heavy duty landing gear
King pin	JOST Brand
Tire	385/65R22.5
ABS	Wabco brand
Configuration
