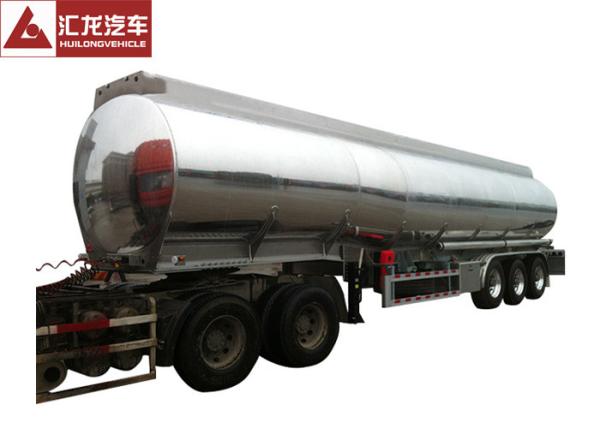

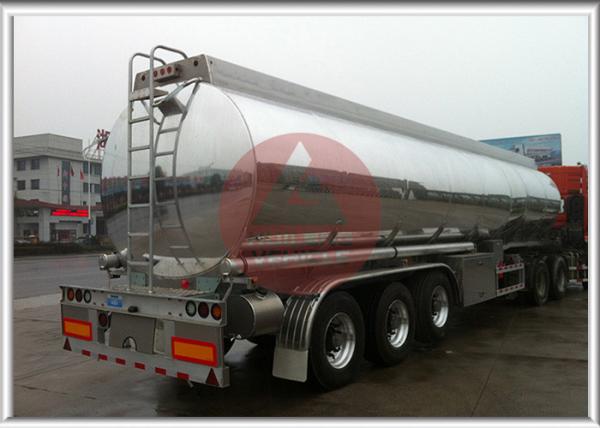

ADR Standard Fuel Tank Trailer Polished 4" Seamless Steel Tube Air Bag Suspension​

Description:

• Main Application

Aluminum alloy tank trailer has the advantage of light tare weight, shinny out appearance; low operation cost and high recycle value. It is very much popular for fuel transporters. The main application is the same as traditional carbon steel fuel tankers, to load and transport the fuel in short or long distance transport or distribution.

Because of the lower tare weight, the aluminum alloy tank trailer has a lower operation cost which saves money a lot for the transporter. Owing to the weight control policy on road, the 3 axle aluminum tank could load more than 3 axle carbon steel tank. This makes aluminum tank trailer superior advantages and preferred by our customer.

• Appealing Style

This aluminum alloy tank is made of aluminum alloy 5454H polished plate which appears mirror surface. The surface looks pretty good, what’s more, this shinny surface could reflect more sunlight, so less heat on tankers. This tank is especially suitable in hot and dusty area. We have different aluminum plates for tankers. Aluminum 5083 and aluminum 5454 are normally used for tankers. Aluminum 6061 which has a better strength performance is used for trailer chassis.

• ADR Standard

This aluminum alloy fuel tank is designed and made according to ADR standard. Before production, the drawing is designed by our experienced engineer according to ADR regulation and details. And the drawing is check and confirmed by TUV agent. After the production, the tanks is checked according to ADR inspection list and approved by ADR.

Advantages:

• Excellent Quality and Reasonable Price

Our company has a proficient team specializing in the production of aluminum fuel trailers. They have rich experience and mature technology. So our product quality is reliable and the price is reasonable.

• Longer Service Life

The longer service life allows extended term of service compared to other products.

Specifications:

Overall Dimension(mm)	12100 x 2500 x 3600
Volume	40000 liters
Material	Aluminum alloy
Compartments	1 - 8 for option
Manhole	500mm manhole with breath valve
Safety Valve	same quantity with compartments

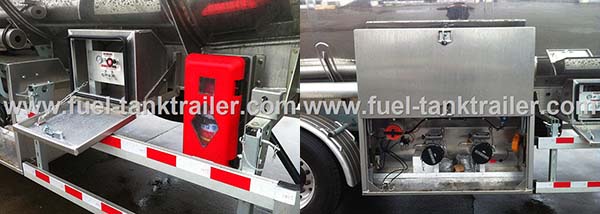

Discharge Valve	API valve CIVOCAN brand
Vapor Recovery System	Whole set of vapor recovery system
Main Beam	Carbon Steel	6061 aluminum plate
	Height	500mm
	Middle Plate	10mm
	Down Plate	18mm
Discharge Pipe	4" seamless steel tube
Suspension System	Mechanical or air bag suspension
Axle	FUWA, BPW, L1 , etc
Tire	12R22.5, 385/65R22.5, 11.00R20
Kingpin	JOST brand 2.5 inch or 3.5 inch
Landing Gear	JOST brand 28 ton landing gear
Configuration
