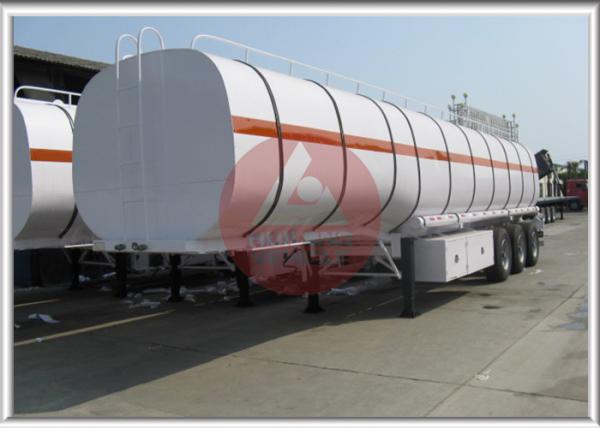

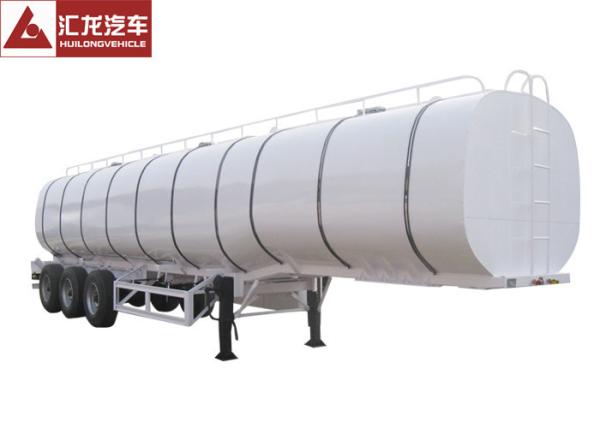

Double Layer Chemical Tanker Truck Thermal Insulation 3 Axle 40000l Net Capacity
Double Layer Chemical Tanker Truck Thermal Insulation 3 Axle 40000l Net Capacity
Double Layer Chemical Tanker Truck Thermal Insulation 3 Axle 40000l Net Capacity
Double Layer Chemical Tanker Truck Thermal Insulation 3 Axle 40000l Net Capacity
Specifications
Brand Name :
Huilong
Model Number :
Chemical Tank Trailer
Certification :
ISO9001
Place of Origin :
Suizhou, China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
200 units per month
Delivery Time :
4~6 weeks
Packaging Details :
in nude or by wax
Vessel Forming :
Monoblock
Net Capacity :
40000L
Thermal Insulation :
Dual Layer
Manhole Standards :
API
Kingpin Size :
2 Inches
Axle Assembly :
3 Axle
Description

Double Layer Chemical Tanker Truck Thermal Insulation 3 Axle 40000l Net Capacity

Description:

• Main Application

The double layer thermal insulation tank trailer made of carbon steel is qualified for transporting a variety of non-corrosive chemical liquid, since the inner and outer of the tank is painted with anti-corrosion coatings. Usually, the tank is fixed on the chassis by the steel belt.

Advantages:

• Trailer Protection

The side and rear protective devices are made by Q235A. Side protective devices are coupled with the trailer by screw bolts, while the coupling between rear protective devices and the frame is completed by welding.

• Insulation Material

50mm fiber glass or polyurethane is used for heat insulating.

Fiber glass is the inorganic non-metallic material and has many advantages like superior insulativity, heat resistance, corrosion-proof, high compressive strength.

Radical groups in the polyurethane macromolecule are polar groups. Moreover, polyether or polyester flexible chain is involved in the macromolecule. Polyurethane has the following features:

1) high compressive strength, oxidation stability

2) high flexibility, elastic resilience

3) oil resistance, solvent resistance, water resistance, fire resistance

Specifications:

Dimension
Overall Dimension 12800x2500x3650mm
Tare Weight 12600KGS
Tank
Shape Monoblock shape tank
Total Volume 40000L
Tank Body Material Carbon steel 5mm
Tank End Plate Carbon steel 6mm
Compartment Single compartment
Insulation Material and Thickness Fiber glass / polyurethane, 50mm
Outside Sheet 1.2mm steel sheet
Manhole Cover

Aluminum alloy API manhole cover

500mm, 2 sets with 2 breath valve
Bottom Valve 1 set aluminum pneumatic bottom valve
Discharging Valve 2 sets 100mm discharging valves
Discharging Pipe 4” rubber hose, 2 pcs, 6m long
Heating System Optional
Trailer Chassis
Main Beam Special design I beam
Axle BPW axle
Landing Gear JOST landing gear
Kingpin JOST kingpin 2 inches
Suspension Mechanical suspension
Braking System T30/30 air chamber, WABCO relay valve
Tire 12R22.5
Wheel Rim 9.0-22.5
Accessories Tool box, spare tire carrier
Gallery
Double Layer Chemical Tanker Truck Thermal Insulation 3 Axle 40000l Net Capacity
