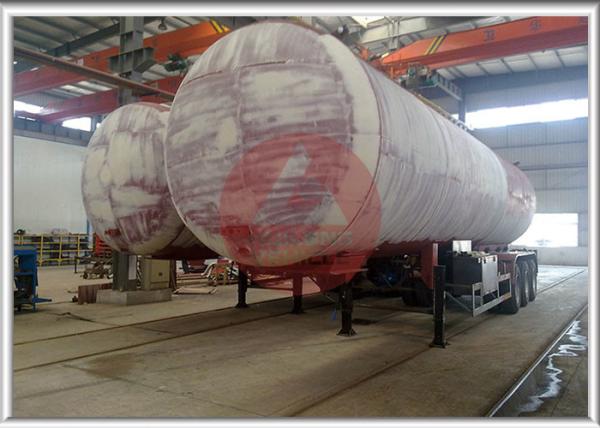

3 Axle LPG Tank Semi Trailer High Pressure Vessel Hydraulic Operating
3 Axle LPG Tank Semi Trailer High Pressure Vessel Hydraulic Operating
3 Axle LPG Tank Semi Trailer High Pressure Vessel Hydraulic Operating
3 Axle LPG Tank Semi Trailer High Pressure Vessel Hydraulic Operating
3 Axle LPG Tank Semi Trailer High Pressure Vessel Hydraulic Operating
3 Axle LPG Tank Semi Trailer High Pressure Vessel Hydraulic Operating
Specifications
Brand Name :
Huilong
Model Number :
LPG Tank Trailer
Certification :
ISO9001
Place of Origin :
Suizhou, China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
200 units per month
Delivery Time :
4~6 weeks
Packaging Details :
in nude or by wax
Gas Vessel :
54.76CBM
Payload :
23000KGS
Design Pressure :
1.77Mpa
Design Temperature :
50°
Corrosion Allowance :
1.0mm
Axle Qty :
3
Description

3 Axle LPG Tank Semi Trailer High Pressure Vessel Hydraulic Operating

Description:

The 3 axle LPG tank trailer is a kind of pressure vessel, the tank capacity is 54.76CBM. It is used to load the liquid petroleum gas which the main component is propane. The density of the LPG is about 0.42ton/cbm, depending on the degree of purity. So this 54.76CBM gas tank is about to load the 23ton LPG. The running gear consists of the 3pcs BPW axle, 13ton capacity, German type heavy duty mechanical suspension with tubeless tyre. The tank thickness is 14mm to bear the pressure inside. All welding seams are carefully checked by nondestructive testing to ensure 100% safety of the tankers.

Main Application

The 3 axle LPG tank trailer is used to transport the LPG from different station and gas depot. It is an important vehicle for the LPG on road transport. The gas station owner or professional gas transporter normally owns different types of LPG trailers and LPG trucks.

Advantages:

  1. Big volume to load and transport the LPG
  2. High standard of fabrication and quality.

Specifications:

Dimension
Overall Dimension 12600x2500x3900mm
Tare Weight 16800kgs
Tank
Tank Volume 54.76CBM
Payload 23000KGS
Tank Material 16MnR
Tank Design Pressure 1.77Mpa
Tank Design Temperature 50°
Corrosion Allowance 1.0mm
Hydraulic Test Pressure 2.66Mpa
Tank Parts
Loading Valve and Unloading Valve

Gas phase: DN25

Liquid phase: DN50
Emergency Shut Off Device

Gas phase: DN25

Liquid phase: DN50

Operating by hydraulic

Closing time: less than 10 sec
Safety Valve

Nominal diameter: DN80

Nominal pressure: PN2.5MPa

Open pressure: 1.86~1.94MPa

Closing pressure: 1.49~1.55MPa
Indicator Gauge

Rotary type

Surveying range: 0~2400mm

Precision: 2.5 Grade
Other Parts Pressure gauge, temperature meter
Trailer Chassis
Axle FUWA 13T axle
Suspension Mechanical suspension
Tyre 12R22.5
Wheel Rim 9.0-22.5
Accessory One standard tool box
Configuration
3 Axle LPG Tank Semi Trailer High Pressure Vessel Hydraulic Operating
