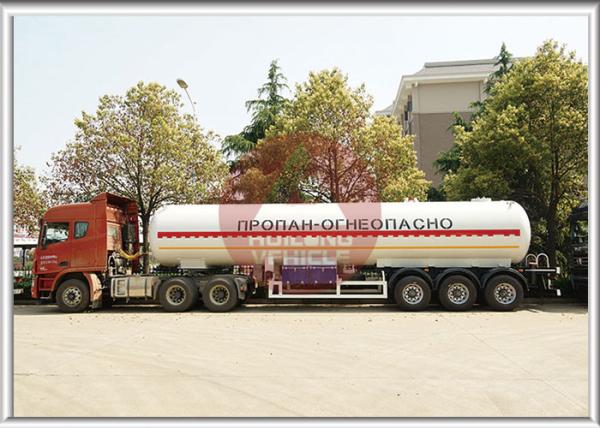

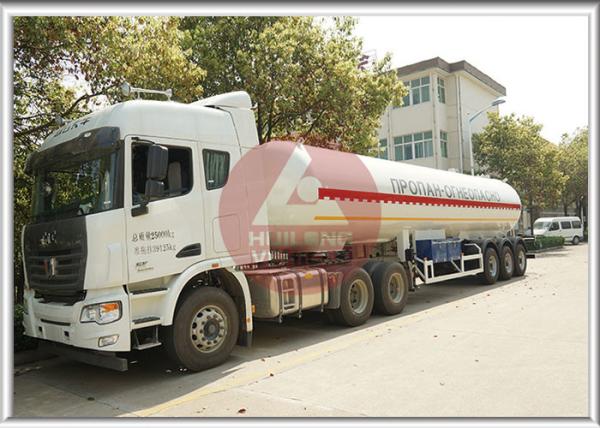

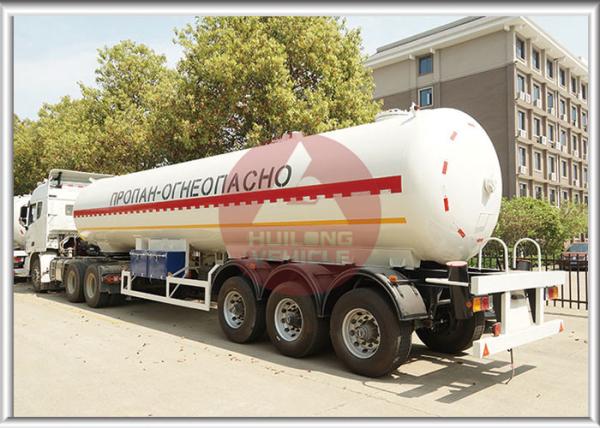

ASME Standard Aluminum LPG Tank Trailer Durable Long Life Span Large Sized
ASME Standard Aluminum LPG Tank Trailer Durable Long Life Span Large Sized
ASME Standard Aluminum LPG Tank Trailer Durable Long Life Span Large Sized
ASME Standard Aluminum LPG Tank Trailer Durable Long Life Span Large Sized
ASME Standard Aluminum LPG Tank Trailer Durable Long Life Span Large Sized
ASME Standard Aluminum LPG Tank Trailer Durable Long Life Span Large Sized
ASME Standard Aluminum LPG Tank Trailer Durable Long Life Span Large Sized
ASME Standard Aluminum LPG Tank Trailer Durable Long Life Span Large Sized
Specifications
Brand Name :
Huilong
Model Number :
LPG Tank Trailer
Certification :
ISO9001
Place of Origin :
Suizhou, China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
200 units per month
Delivery Time :
4~6 weeks
Packaging Details :
in nude or by wax
Vol. of Gas Container :
52CBM
Payload :
23000KGS
Surveying Range :
0~2400mm
Working Pressure :
1.77Mpa
Working Temperature :
50°
Tank Standard :
ASME Standard
Description

ASME Standard Aluminum LPG Tank Trailer Durable Long Life Span Large Sized

Description:

The ASME is American Society of Mechanical Engineers. It regulates the standards and criteria of different manufacturing industries. It is widely accepted and acknowledged in more than 90 countries. The ASME also has fabrication standard about the pressure vessel which includes the LPG tank trailer. This ASME standard LPG tank trailer consists of the pressure tank, tank parts, trailer chassis and running gear. The tank parts are all ADR or DOT approved tank parts, including the gas phase valve for gas flow, the liquid phase valve for liquid flow, the emergency shut down valve for gas phase and liquid phase.

Main Application

The ASME standard LPG tank trailer is to load and transport the LPG on road from different gas station and gas depot. In some modernized, the LPG is mainly transport by the pressure tubes beneath the ground. However, for the delivery between cities to cities, cities to towns, the road transportation by LPG trailer or LPG truck is still the main mean.

Advantages:

  1. The ASME has high standard and criteria about the fabrication of pressure vessel.
  2. Heavy duty trailer chassis and durable running gear.

Specifications:

Dimension
Overall Dimension 12200x2500x3800mm
Tare Weight 16200kgs
Tank
Tank Volume 52CBM
Payload 23000KGS
Tank Material 16MnR
Tank Design Pressure 1.77Mpa
Tank Design Temperature 50°
Corrosion Allowance 1.0mm
Hydraulic Test Pressure 2.66Mpa
Tank Parts
Loading Valve and Unloading Valve

Gas phase: DN25

Liquid phase: DN50
Emergency Shut Off Device

Gas phase: DN25

Liquid phase: DN50

Operating by hydraulic

Closing time: less than 10 sec
Safety Valve

Nominal diameter: DN80

Nominal pressure: PN2.5MPa

Open pressure: 1.86~1.94MPa

Closing pressure: 1.49~1.55MPa
Indicator Gauge

Rotary type

Surveying range: 0~2400mm

Precision: 2.5 Grade
Other Parts Pressure gauge, temperature meter
Trailer Chassis
Axle FUWA 13T axle
Suspension Mechanical suspension
Tyre 12R22.5
Wheel Rim 9.0-22.5
Accessory One standard tool box
Gallery

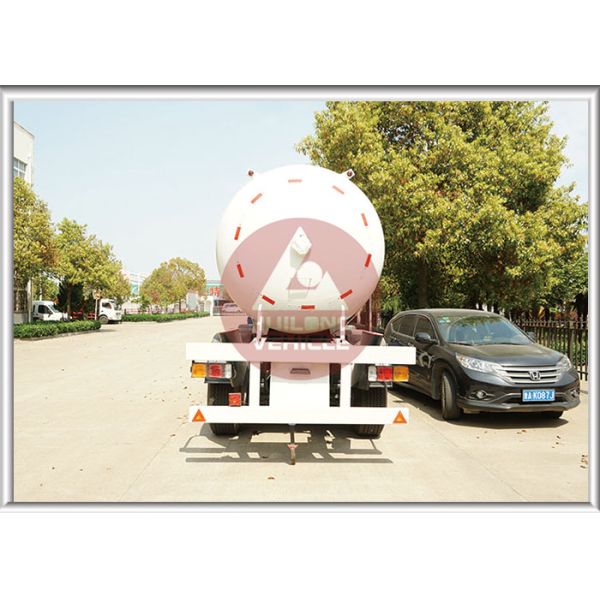

ASME Standard Aluminum LPG Tank Trailer Durable Long Life Span Large Sized
