Specifications
Brand Name :
Huilong
Model Number :
LPG Tank Trailer
Certification :
ISO9001
Place of Origin :
Suizhou, China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram, D/P, D/A
Supply Ability :
200 units per month
Delivery Time :
4~6 weeks
Packaging Details :
in nude or by wax
Vol. of Gas Vessel :
54.76CBM
Payload :
23000KGS
Gas Phase :
DN25
Liquid Phase :
DN50
Nominal Diameter :
DN80
Nominal Pressure :
PN2.5MPa
Application :
Liquefied Petroleum Gas
Description

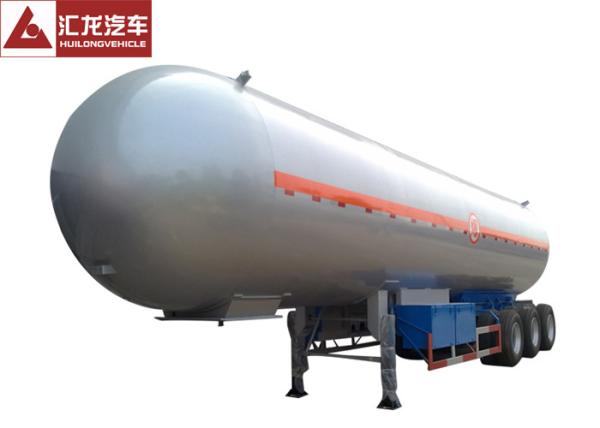

23 Ton LPG Transport Trailer Truck Mount Bobtail End Plate Low Inner Impact

Description

The 23ton LPG tank trailer is to load the liquid petroleum gas and named LPG transporting semi-trailer. The trailer consists of the pressure vessel tank, trailer chassis, trailer running gear. The gas tank is bobtail type tank with designed pressure 2.66Mpa, tank thickness 14mm. Hence, the minimum shrinkage ratio and the maximum size stability can be kept at a low temperature. The trailer chassis is heavy duty I beam, up flange 14mm, bottom flange 16mm, middle flange 8mm. The running gear is 3 axle BPW axle, mechanical suspension and tubeless double tyres.

Main Application

The LPG is a clean energy for burning. After thoroughly burning, it becomes into water and CO2, without dust and particles into the air. Families use it for daily cooking. Industries use it to provide power. The LPG trailer is to load and distribute the LPG into different location. Other liquefied gases can be also loaded, e.g.: propane, propylene, methoxymethane, liquid ammonia, methylamine, acetaldehyde.

Advantages:

  1. ASME standard, high fabrication level, high safety standard.
  2. Bobtail end plate to absorb the inner impact.

Specifications:

Dimension
Overall Dimension 12600x2500x3900mm
Tare Weight 16800kgs
Tank
Tank Volume 54.76CBM
Payload 23000KGS
Tank Material 16MnR
Tank Design Pressure 1.77Mpa
Tank Design Temperature 50°
Corrosion Allowance 1.0mm
Hydraulic Test Pressure 2.66Mpa
Tank Parts
Loading Valve and Unloading Valve

Gas phase: DN25

Liquid phase: DN50

Emergency Shut Off Device

Gas phase: DN25

Liquid phase: DN50

Operating by hydraulic

Closing time: less than 10 sec

Safety Valve

Nominal diameter: DN80

Nominal pressure: PN2.5MPa

Open pressure: 1.86~1.94MPa

Closing pressure: 1.49~1.55MPa

Indicator Gauge

Rotary type

Surveying range: 0~2400mm

Precision: 2.5 Grade

Other Parts Pressure gauge, temperature meter
Trailer Chassis
Axle FUWA 13T axle
Suspension Mechanical suspension
Tyre 315/80R22.5
Wheel Rim 9.0-22.5
Accessory One standard tool box
Gallery

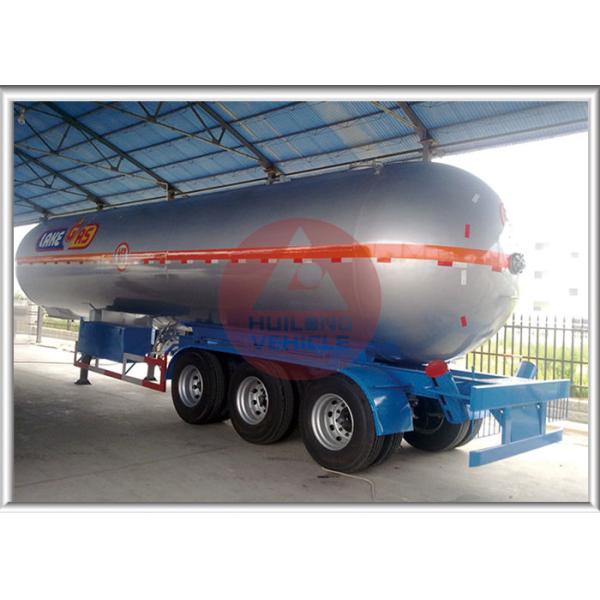

23 Ton LPG Transport Trailer Truck Mount Bobtail End Plate Low Inner Impact LPG Tank Semi-Trailer

Shipping picture:

23 Ton LPG Transport Trailer Truck Mount Bobtail End Plate Low Inner Impact LPG Tank Semi-Trailer

23 Ton LPG Transport Trailer Truck Mount Bobtail End Plate Low Inner Impact LPG Tank Semi-Trailer

FAQ:

1. Can I buy a sample of this trailer to test the quality?
Yes, you could buy one and test the trailer, our MOQ is 1 sets.

2. What is the date of delivery
The time of delivery is within 30 working days after we receive your advance payment.
For mass production, it may takes 40~45 days.

3. Can you supply some easy worn spare parts?
Yes, we can provide you with some easy worn spare parts at the factory price, such as traction pin, balance beam and , suspension parts, turntable, trailer brake pads, brake discs, bearings, etc..

4. What are the terms of payment?
T / T 30% as deposit, before shipment by wire transfer or by L / C payable at sight

5. Do you have used trailers or trucks for sale?
We have some trailers or trucks for stock selection but brand new, from 2010-2017, price in discount.

6.Is it all right to make customer's own brand name?
Yes, we accept OEM business.

7. Are you a manufactuer or trading company?
We are a manufacturer, factory located in Suizhou, Hubei Province of China, welcome to visit us at any time.

8. Can you do the design for us?
We have experienced engineer to make design for you according to your requirement and local road regulation.

9. Where is your loading port?
Any China main port is acceptable, mostly we use Shanghai, Tianjin port.

10. Does your product have warranty service?
We provide one year warranty period of the tank body, running gear and tank fittings.
