Specifications
Brand Name :
Huilong
Model Number :
Chemical Tank Trailer
Certification :
ISO9001
Place of Origin :
Suizhou, China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
200 units per month
Delivery Time :
4~6 weeks
Packaging Details :
in nude or by wax
Available Capacity :
30000L
Insulation Material :
Fiber Glass
Outside Sheet :
Steel Sheet
Heating System :
Diesel / Electric / Coal Heating
Pumping System :
Gear / Screw
Tare Weight :
10600KGS
Description

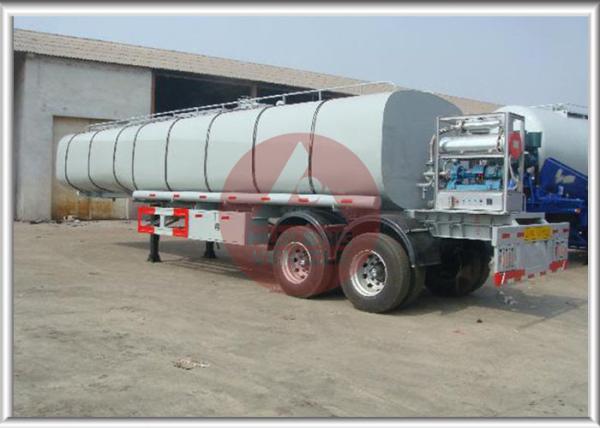

Bitumen Liquid Tank Trailers , Bulk Chemical Tanks With Burner Heating System

Description:

The bitumen transportation truck is to transport the bitumen, asphalt. The bitumen tank trailer is a double layer steel tank with insulation material to keep temperature and a burner to provide heating to the tank. Since the bitumen is in the state of liquid after heating, and it turns into solid if it keeps normal temperature. So it needs a burner to work on it.

The heating system consists of the burner and the heating tubes inside the tank. There is diesel type burner, electronic burner and coal burner. The tubes are fixed inside the tank with high temperature to keep the bitumen warm.

The tank is 2 layer structure, inside tank is carbon steel one or tubeless one, out side is a steel sheet. Between the 2 layers, there is insulation material. There are different types of insulation material with different cost, like fiber glass, polyurethane.

Advantages:

  1. Double layer structure to keep the temperature stable
  2. High efficiency burner to provide continuous heating and save energy.

Specifications:

Dimension
Overall Dimension 12600x2500x3350mm
Tare Weight 10600KGS
Tank
Shape Monoblock shape tank
Total Volume 30000L
Tank Body Material Carbon steel 5mm
Tank End Plate Carbon steel 6mm
Compartment Single compartment
Insulation Material and Thickness Fiber glass, 50mm
Outside Sheet 1.2mm steel sheet
Heating System

Diesel heating, electric heating,

coal heating optional upon requirement
Pump In and Out System Gear type screw type optional upon requirement
Trailer Chassis
Main Beam Special design I beam
Axle BPW axle
Landing Gear JOST landing gear
Kingpin JOST kingpin 2 inches
Suspension Mechanical suspension
Braking System T30/30 air chamber, WABCO relay valve
Tire 12R22.5
Wheel Rim 9.0-22.5
Accessories Tool box, spare tire carrier
Configuration
Bitumen Liquid Tank Trailers , Bulk Chemical Tanks With Burner Heating System
