98% Sulfuric Acid Chemical Tank Trailer 21000L 11800x2500x3000mm Special Design V Beam
98% Sulfuric Acid Chemical Tank Trailer 21000L 11800x2500x3000mm Special Design V Beam
98% Sulfuric Acid Chemical Tank Trailer 21000L 11800x2500x3000mm Special Design V Beam
98% Sulfuric Acid Chemical Tank Trailer 21000L 11800x2500x3000mm Special Design V Beam
98% Sulfuric Acid Chemical Tank Trailer 21000L 11800x2500x3000mm Special Design V Beam
98% Sulfuric Acid Chemical Tank Trailer 21000L 11800x2500x3000mm Special Design V Beam
Specifications
Brand Name :
Huilong
Model Number :
Chemical Tank Trailer
Certification :
ISO9001
Place of Origin :
Suizhou, China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
200 units per month
Delivery Time :
4~6 weeks
Packaging Details :
in nude or by wax
Container Shape :
V shape
Actual Volume :
21000L
Main Beam :
V Beam
Valve Material :
Stainless Steel
Compartment Qty :
1
Air Chamber :
T30/30
Description

98% Sulfuric Acid Chemical Tank Trailer 21000L 11800x2500x3000mm Special Design V Beam

Description:

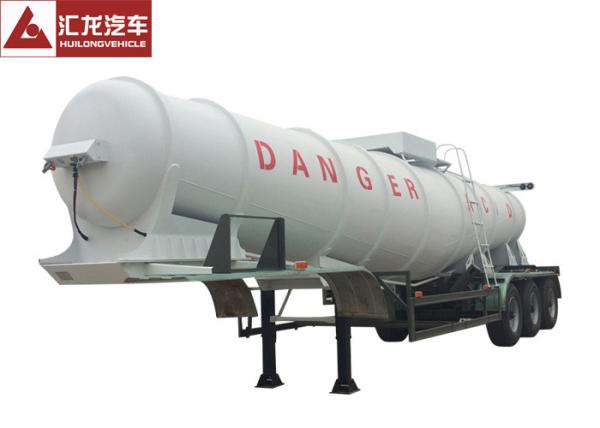

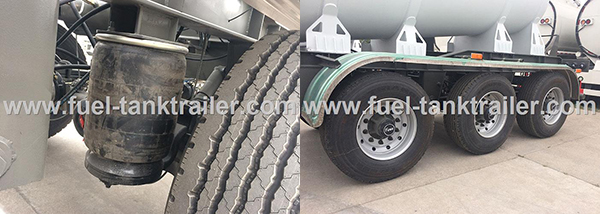

This 3 axle V shape tank trailer is for 98% sulfuric acid transportation. The tank could be made by stainless steel or carbon steel. The 98% sulfuric acid is a kind of toxic, dangerous liquid, but non-corrosive for steel. So the carbon steel tank is more economic. The tank is designed into V shape for better discharging. All tank parts are stainless steel one which is anti-corrosive and long life span. The running gear is 3 axle BPW brand with air suspension and tubeless tyres.

Main Application

The sulfuric acid tank trailer is normally service for the mining areas or the chemical factories. Since the material it loaded is highly toxic and dangerous, it requires safety loading and discharging.

Advantages:

Our factory Hubei Huilong Special Vehicle company mainly concentrates on different types of tankers and semi trailers. The chemical tanker we made is in different materials and shapes to suit for different chemicals. The chemical tank we made has the advantages below:

  1. Customized tank. We design the tank according to chemical features to ensure the highest level of safety loading.
  2. Air suspension for better protection of the whole trailer.

Specifications:

Dimension
Overall Dimension 11800x2500x3000mm
Tare Weight 10500KGS
Tank
Shape V shape tank
Total Volume 21000L
Tank Body Material Carbon steel
Tank End Plate Carbon steel
Compartment Single compartment
Manhole Cover Steel manhole cover
Bottom Valve Stainless steel valve
Discharge Valve Stainless steel valve
Trailer Chassis
Main Beam Special design V beam
Axle BPW axle
Landing Gear JOST landing gear
Kingpin JOST kingpin 2 inches
Suspension Mechanical suspension
Braking System T30/30 air chamber, WABCO relay valve
Tire 12R22.5
Wheel Rim 9.0-22.5
Accessories Tool box, spare tire carrier
Configuration
98% Sulfuric Acid Chemical Tank Trailer 21000L 11800x2500x3000mm Special Design V Beam
