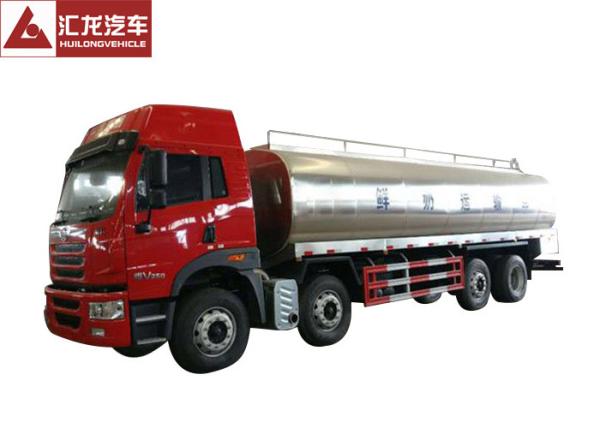

FAW Insulated Tanker Trailers 220 Horse Power Strong Power Fresh Keeping Structure
FAW Insulated Tanker Trailers 220 Horse Power Strong Power Fresh Keeping Structure
FAW Insulated Tanker Trailers 220 Horse Power Strong Power Fresh Keeping Structure
FAW Insulated Tanker Trailers 220 Horse Power Strong Power Fresh Keeping Structure
Specifications
Brand Name :
Huilong
Model Number :
Milk Tank Trailer
Certification :
ISO9001
Place of Origin :
Suizhou, China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
200 units per month
Delivery Time :
4~6 weeks
Packaging Details :
in nude or by wax
Chassis Manufacturer :
FAW
Steering :
Left Hand Drive
Gearbox :
6-speed by manual
Engine Horsepower :
220hp
Driving Mode :
6x2
Security Control :
ABS
Description

FAW Insulated Tanker Trailers 220 Horse Power Strong Power Fresh Keeping Structure

Description:

• Main Usage

Currently, special milk truck is the main vehicle for transporting milk and solves how to retain freshness. The heat preservation system can control the temperature variation and ensure the original quality of the milk.

• FAW Chassis

The transportation truck is modified by FAW chassis whose drive mode is 6x2. The load capacity of is up to 20000L, so it can transport much liquid food at a time.

The truck cruises at a low speed to improve the operation efficiency and reduce the labour intensity of the driver.

The strengthened frame and suspension facilitate the transportation and handling operation.

Advantages:

• Gearbox

Six gears are set in the gearbox. The mechanical synchronizer is used to control 2-6 gear. There are six forward gears and 1 backward gear. The shift between gears is flexible.

• Strong Power

The engine is equipped with an enhanced PTO to increase the nominal power. Moreover, the failure rate, noise and vibration of the engine are very low.

• Fresh-Keeping Structure

The milk tanker is designed with the integral thermal insulation structure. The exterior of the tank is protected by polyurethane material and stainless steel cladding. The temperature of storing milk can be held and is suitable for fresh-keeping.

• High Value

The milk truck is certified by international standards and main components are purchased with famous brands.

Specifications:

Overall Length 10800mm
Overall Width 2500mm
Overall Height 3150mm
External Size of Tank 8000*2360*1590mm
Internal Size of Tank 7800*2160*1390mm
Tank Capacity 20000L
Tank Material stainless steel 304-2B
Tank Shell Thickness 4mm
Tank Insulation Layer Thickness 10mm
Chassis Brand FAW
Drive Type 6*2
Steering left hand drive
Wheelbase 1900+4500mm
Front/Rear Suspension 1400/2800
Tyre Size 10.00R20
Gearbox 6-speed by manual
Engine Model BF6M2012-22E4
Engine Displacement/Power 6060ml/165kw
Engine Horsepower 220hp
Emission Standard Euro IV
ABS With
Air Conditioner With
