Isuzu Fire Fighting Vehicle , 3.5t Foam Fire Rescue Vehicles 20 L / S Flow Capacity
Isuzu Fire Fighting Vehicle , 3.5t Foam Fire Rescue Vehicles 20 L / S Flow Capacity
Isuzu Fire Fighting Vehicle , 3.5t Foam Fire Rescue Vehicles 20 L / S Flow Capacity
Isuzu Fire Fighting Vehicle , 3.5t Foam Fire Rescue Vehicles 20 L / S Flow Capacity
Isuzu Fire Fighting Vehicle , 3.5t Foam Fire Rescue Vehicles 20 L / S Flow Capacity
Isuzu Fire Fighting Vehicle , 3.5t Foam Fire Rescue Vehicles 20 L / S Flow Capacity
Isuzu Fire Fighting Vehicle , 3.5t Foam Fire Rescue Vehicles 20 L / S Flow Capacity
Isuzu Fire Fighting Vehicle , 3.5t Foam Fire Rescue Vehicles 20 L / S Flow Capacity
Specifications
Brand Name :
Huilong
Model Number :
Fire Fighting Vehicle
Certification :
ISO9001
Place of Origin :
Suizhou, China
MOQ :
1 unit
Price :
Negotiable
Supply Ability :
200 units per month
Delivery Time :
4~6 weeks
Packaging Details :
in nude or by wax
Payment Terms :
L/C, T/T
Chassis Brand :
ISUZU
Driving Type :
4x2
Displacement/Power :
2999cc/96kw
Flow Capacity :
20L/s
Horse Power(hp) :
120
Braking System :
Air brake
Description

Isuzu Fire Fighting Vehicle , 3.5t Foam Fire Rescue Vehicles 20 L / S Flow Capacity

Description:

• Wide Application

Foam fire engines are mainly equipped with fire pumps, water tanks, foam mixing systems, foam guns, guns and other firefighting equipment. It is especially suitable for fighting oil fires such as oil and its products, and can also supply water and foam mixture to fire sites. It is a necessary firefighting vehicle for petrochemical enterprises, oil terminals, airports and urban professional fire brigades.

• High Reliability

This product adopts the ISUZU chassis to carry on the modification. The quality is more reliable. The tank can hold 3.5 tons of water and foam. The framework of our product is reasonable. The vehicle is suitable for all kinds of fire scene.

Advantages:

• Overview

The price of the product is low. The quality is high. The function and the equipment are comprehensive. Hence, it is deeply liked by the customer.

• Suitable for Small and Medium Fire

Our products can hold 3.5 tons of water and foam. They are suitable for small and medium firefighting work and can reduce waste of resources.

• OEM Products

We accept OEM products if our customers submit the request.

Specifications:

Product

Parameter

 Name ISUZU 3.5T Foam Fire Truck
Brand JDF
Model JDF5070GXFSG20Q
Total Mass(kg) 9730
Curb Mass(kg) 4140
Rated Mass(kg) 3500
Overall dimension (L*W*H/mm) 6730*1980*2785
Wheelbase(mm) 3615
Approaching/Departure Angle(°) 24/13
Front/Rear Thread(mm) 1504/1452
Front/Rear Suspension(mm) 1015/1900
Front/Rear Axle Load(kg) 2010/4505
Leaf Spring No. 8/6+5
Axles No. 2
Chassis Brand ISUZU
Model NKR77PLLWCJAY
Transmission 6 forward gear,1 reverse gear, manual mechanical type
Clutch dry clutch, hydraulic control system
Braking System Air brake
Drive Type 4*2
Tyre 7.50-15,7.50R15,7.00-16,7.00R16
Tyre No. 6
Cabin doule row,6 passengers
Engine Brand ISUZU
Model 4KH1-TC

Displacement(cc)

/Power(kw)

2999

/96
Horse Power(hp) 120
Emission Standard Euro4
Special Function Fire Pump Model

BS20

(ordinary pressure pump)
Flow Capacity 20L/s
Pressure 1.0MPa
Fire Monitor Model SP20
Shot Range ≥48m

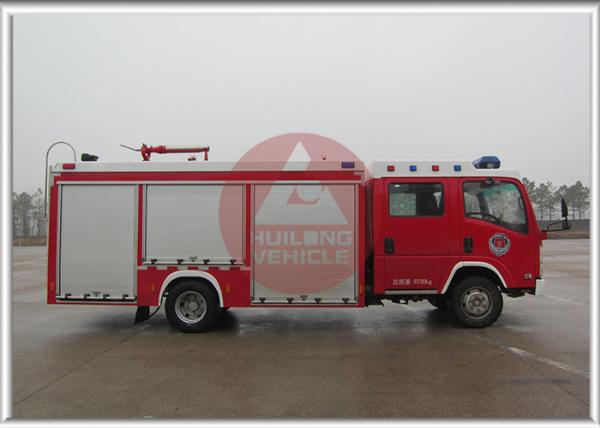

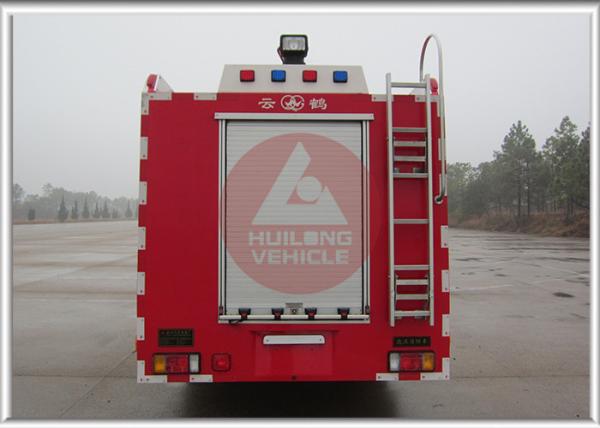

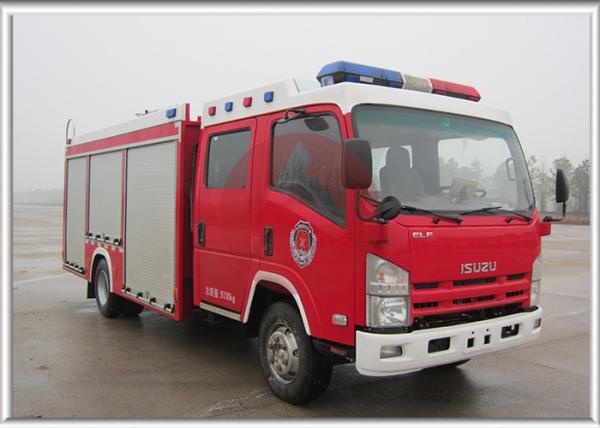

Gallery
Isuzu Fire Fighting Vehicle , 3.5t Foam Fire Rescue Vehicles 20 L / S Flow Capacity
