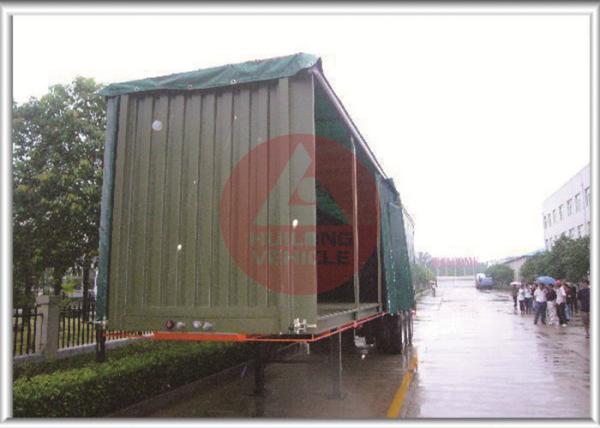

Aluminum Rails Curtain Side Trailer π Hook Shape Water - Proof Covering Material
Aluminum Rails Curtain Side Trailer π Hook Shape Water - Proof Covering Material
Aluminum Rails Curtain Side Trailer π Hook Shape Water - Proof Covering Material
Aluminum Rails Curtain Side Trailer π Hook Shape Water - Proof Covering Material
Aluminum Rails Curtain Side Trailer π Hook Shape Water - Proof Covering Material
Aluminum Rails Curtain Side Trailer π Hook Shape Water - Proof Covering Material
Aluminum Rails Curtain Side Trailer π Hook Shape Water - Proof Covering Material
Aluminum Rails Curtain Side Trailer π Hook Shape Water - Proof Covering Material
Specifications
Brand Name :
Huilong
Model Number :
Curtain Side Trailer
Certification :
ISO9001
Place of Origin :
Suizhou, China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
200 units per month
Delivery Time :
4~6 weeks
Packaging Details :
in nude or by wax
Tarpaulin Material :
PVC
Curtain Structure :
Hermetic Curtain
Hook Shape :
Π shape
Fixing Device :
Buckle
Relay Valve Supplier :
WABCO
Trailer Dimension :
14000X2500X3850
Description

Aluminum Rails Curtain Side Trailer π Hook Shape Water - Proof Covering Material

Description:

• Wide Application

The curtain sliding trailer can adapt for various weathers. The eco-friendly trailer also protects against rain, thermo, and dust. It is applied in the palletized transport of many industries e.g.: tobacco and wine, drink, textile, medicine, household electrical appliances and clothes.

Advantages:

• Hermetic Curtain

There are many holes on the side beam, which are used for fixing goods. The seal gland is brush structure and set on the holes. The brush structure includes the handle and the bifurcate body. The handle is fixed in the side beam. The bifurcate body fits with the side beam and covers the hole. The sealed structure can reduce the volume of the curtain.

• Simple Assembly

Both sides of the side beam are equipped with Π shape hook, which can handily fix goods. The carriage is coupled by screw bolts and it is easy for customers to finish the assembly.

Specifications:

Dimension
Overall Dimension 14000X2500X3850
Tare Weight 8600KGS
Running Gear
Chassis

Heavy duty and extra durability designed I beam

by high tensile steel Q345B;

Welded by automatic submerged arc processes;

Top flange 14mm, width 140mm, middle flange 6mm;

bottom flange 16mm, width 140mm.
Axle 3 axle, FUWA brand, 13Ton capacity
Suspension Mechanical suspension
Spring Leaf spring
King Pin JOST kingpin, 2 inches
Landing Gear JOST landing gear, manual operation, 2 speed
Wheel Rim Steel wheel rim 9.0-22.5
Tire Tubeless tire 12R22.5
Braking System

WABCO RE 6 relay valve;

T30/30+T30 spring brake chamber;

40L air tanks
Painting

Complete chassis sand blasting to clean rust;

1 coat of anti-corrosive prime, 2 coats of final paint
Curtain Parts
Curtain Material PVC curtains, fitted with buckles
Slide Rails Aluminum alloy double slide rails

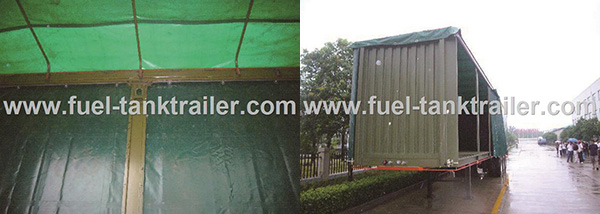

Configuration
Aluminum Rails Curtain Side Trailer π Hook Shape Water - Proof Covering Material
