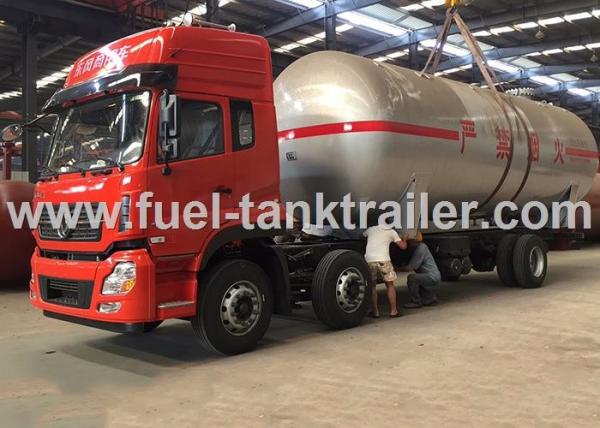

Water Cooled Red Color 6x4 Lpg Tanker Trailer 2.22MPa Hydrostatic Pressure
Water Cooled Red Color 6x4 Lpg Tanker Trailer 2.22MPa Hydrostatic Pressure
Water Cooled Red Color 6x4 Lpg Tanker Trailer 2.22MPa Hydrostatic Pressure
Water Cooled Red Color 6x4 Lpg Tanker Trailer 2.22MPa Hydrostatic Pressure
Specifications
Brand Name :
Huilong
Model Number :
LPG Tank Trailer
Certification :
ISO9001
Place of Origin :
Suizhou, China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
Negotiable
Delivery Time :
4~6 weeks
Packaging Details :
in nude or by wax
Hydrostatic Pressure :
2.22MPa
Design Temperature :
-19～50℃
Gauge Accuracy :
2.5
Chassis Series :
DONGFENG KL
Measurement Scale :
50-3100mm
Wheel Config :
6x4
Description

Water Cooled Red Color 6x4 Lpg Tanker Trailer 2.22MPa Hydrostatic Pressure

LPG Storage Tank

Description:

• Key Application
The LPG storage tank truck can transport all kinds of oil and fuel, covering liquid ammonia, carbon disulfide, epoxyethane, petrol, butane, propane, propylene etc. The truck can finish the mobile supply of LPG. The design strictly follows all technical regulations. Mandatory requirements on reliability, security and environmental protection are met.

Advantages:

• Cryo-insulation Vessel
The LPG storage tank is a vacuum powder cryo-insulation pressure vessel which consists of double layers. The inner pot is made of stainless steel. Q235B or 16MnR is applied in the outer pot. Meanwhile, rapid setting liquid paint is used.

• Safety Operation
Active and passive safety emergency protection devices are equipped to offer the hermetioally sealed cargo work. Thus, the evaporation is very low and the operation is safe.

Specifications:

Tank Model Horizontal
Type Chemical Tank
Applicable Material LPG
Design Pressure(MPa) 1.77
Max. Operating Pressure(MPa) 1.61
Hydrostatic Pressure(MPa) 2.22
Air Tight Pressure(MPa) 1.77
Corrosion Allowance 1.0mm
Design Temperature -19～50℃
Shell Thickness 18.47mm
Cap Thickness 18.42mm
Heat Treatment Overall
Tank Material 16MnR
Medium Density 420kg/m3
Other Parts

Thermometer

Pressure Gauge

Valve Box

Vent Valve

Handle

Soft Tightwire

Hose
Level Gauge Nominal Pressure 2.5MPa
Measurement Scale 50-3100mm
Accuracy 2.5
Safety Valve Nominal Diameter DN80
Breakout Pressure (BP) 1.68-1.76MPa
Reseating Pressure ≥BPx0.8
Cargo Handling Nominal Diameter Liquid Inlet Pipe DN50
Liquid Outlet Pipe DN80
Gas Inlet Pipe DN50
Drain DN80
Vent DN80
Chassis Brand DONGFENG KL
Engine Power 270HP
Engine Model Cummins ISD270
Max. Speed 90KM/h
Engine Type

Water-cooled;

inline six cylinder turbocharged and inter cooled;

high pressure common rail diesel engine
Nominal Power 198kw
Transmission 9 speed forward, 1 speed reverse, manual operation
Braking System ABS
