Air Suspension 3 Axle LPG Tank Trailer , Lpg Transport Trailers Big Effective Capacity
Air Suspension 3 Axle LPG Tank Trailer , Lpg Transport Trailers Big Effective Capacity
Air Suspension 3 Axle LPG Tank Trailer , Lpg Transport Trailers Big Effective Capacity
Air Suspension 3 Axle LPG Tank Trailer , Lpg Transport Trailers Big Effective Capacity
Air Suspension 3 Axle LPG Tank Trailer , Lpg Transport Trailers Big Effective Capacity
Air Suspension 3 Axle LPG Tank Trailer , Lpg Transport Trailers Big Effective Capacity
Specifications
Brand Name :
Huilong
Model Number :
LPG Tank Trailer
Certification :
ISO9001
Place of Origin :
Suizhou, China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
200 units per month
Delivery Time :
4~6 weeks
Packaging Details :
in nude or by wax
Gross Weight :
40000(kg)
Effective Capacity :
61.9CBM
Urgency Switch Valve :
Gas / Liquid Phase
Axle Layout :
3 pcs
Optional Suspension :
Air Suspension
Curb Weight :
14000(kg)
Description

3 Axle LPG Tank Trailer

Description:

• Main Application
LPG tank trailer is the professional vehicle for storing liquefied petroleum gas. The main composition is propane which accounts for over 95%. The rest is butane. LPG has been used for the fuel of light vehicles for many years.

Advantages:

• Verified Tank
The tank is checked according to standards like "supervision regulation on safety technology for stationary pressure vessel" and "static vacuum insulated cryogenic pressure vessel". Crack detection, hydrostatic test and pneumatic test are also conducted.

• Optimized Design
During design, finite element method(FEM) and miscellaneous configurations achieve the light weight of the trailer. The optimization of the structure improves the universalization and multiple uses of components. The compact structure covers less space.

• Customized Trailer
Spatial utilization of the tank is improved by means of optimizing running gear, operative box and each accessory. The regular operation and maintenance are facilitated as well. In consideration of diversified demand of users, the tanker has the potential of modular modification based on the standard type. Modular components can be added to monitor the status of the vehicle in real time. The centralized control simplifies the operation. The comprehensive solution is offered to the scientific and effective management of vehicles.

Specifications:

Dimension
Overall Dimension 13590×2550×3995(mm)
Gross Weight 40000(kg)
Rated Load 26000(kg)
Curb Weight 14000(kg)
Tank
Tank Volume 61.9CBM
Urgency Switch Valve

Gas phase DN25

Liquid phase DN50
Ball Valve

Gas phase DN25

Liquid phase DN50
Other Parts

Thermometer

Pressure gauge

Drain

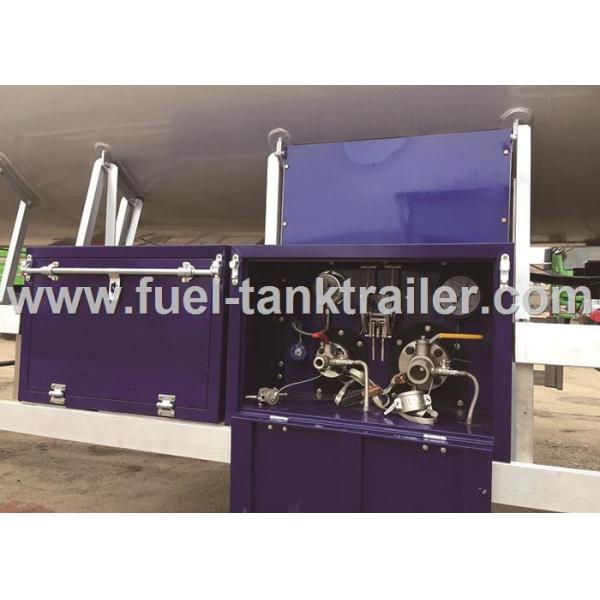

Valve box

Vent valve

Handle

Soft tightwire

Hose
Trailer Chassis
Axle 3pcs
Wheelbase 7010+1310+1310(mm)
Suspension (Optional) Air suspension
Tyre Spec 11.00R20-12PR,12R22.5-12PR
Tyre Qty 12
ABS Available
