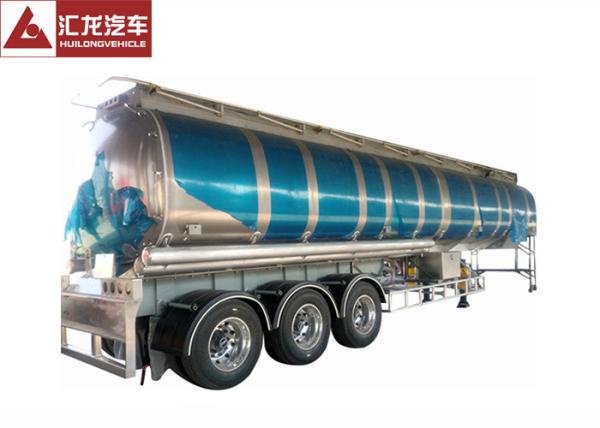

3 Axle 42000 L Fuel Transfer Tank Trailer / Tanker Trailer Large Carrying Capacity
3 Axle 42000 L Fuel Transfer Tank Trailer / Tanker Trailer Large Carrying Capacity
3 Axle 42000 L Fuel Transfer Tank Trailer / Tanker Trailer Large Carrying Capacity
3 Axle 42000 L Fuel Transfer Tank Trailer / Tanker Trailer Large Carrying Capacity
3 Axle 42000 L Fuel Transfer Tank Trailer / Tanker Trailer Large Carrying Capacity
3 Axle 42000 L Fuel Transfer Tank Trailer / Tanker Trailer Large Carrying Capacity
Specifications
Brand Name :
Huilong
Model Number :
Fuel Tank Trailer
Certification :
ISO9001
Place of Origin :
Suizhou, China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
200 units per month
Delivery Time :
4~6 weeks
Packaging Details :
in nude or by wax
Total Volume(m3) :
42000L
Manhole Diameter :
Φ500mm
Axle :
BPW 13 Ton x3
Compartment :
6
Suspended Type :
Air Suspension
Rim Config :
11.75-22.5; x 7
Description

3 Axle Aluminium Fuel Tank Trailer 42000L

Description:

• Core Application
Fuel tank trailer is the special tank trailer transporting fuel oils. Its flexibility is capable of performing the emergent or short-haul oil transportation. Modern oil tankers are also equipped with hydraulic pumps to improve the efficiency of discharging.

Advantages:

• Leading Components
General machineries in this trailer have the advantages of rapid pumping, purified filtration and well-sealed structure. The chassis has a large carrying capacity and strong gradeability.

• Efficient Transport
The 42000L oil tank trailer enables a higher efficiency transport. Without packaging materials, the loss of crude oil in storage and transportation is low. It is easy to realize the automatic loading of liquid cargo.

Specifications:

Dimension
Tare Weight 6900KGS
Overall Length 12000mm
Total Height 3650mm
Overall Width 2500mm
Tank Body
Shape Monoblock Cylinder
Total Volume(m3) 42CBM(11400mmx2480mmx1900mm)
Tanker Body Material 6mm aluminium alloy
End Plate 7mm aluminium alloy
Manhole Cover

aluminium alloy API manhole cover;

Φ500mm;

6 sets with 6 breather valves
Bottom Valve 6 sets of pneumatic bottom valve
Compartment 6
Discharging Valve 6 sets Φ100mm discharging valves
Discharging Pipe 4” rubber hose, 2pcs, 6m long
Vapor collecting system Standard
Anti-overflow device Standard
Chassis
Main Beams

Special design carbon steel I beam;

Connected by bolts and nuts with tanker body;

Removable from tanker for separate transportation
Axle BPW 13 Ton x3
Landing Gear JOST brand Two-speed, manual operating, heavy duty
King Pin JOST brand 2” bolt-in
Suspension Non-liftable air suspension
Pneumatic Braking System

WABCO RE 6 relay valve;

T30/30+T30 Spring brake chamber;

40L air tanks
Wheel Rim 11.75-22.5 aluminium alloy, 7 pieces
Tire 385/65R22.5 super single tubeless tire with one spare tire, 7 pieces
Painting

Sand blasting to clean rust;

1 coat of anticorrosive prime;

2 coats of final paint
Accessories Tool box
Gallery

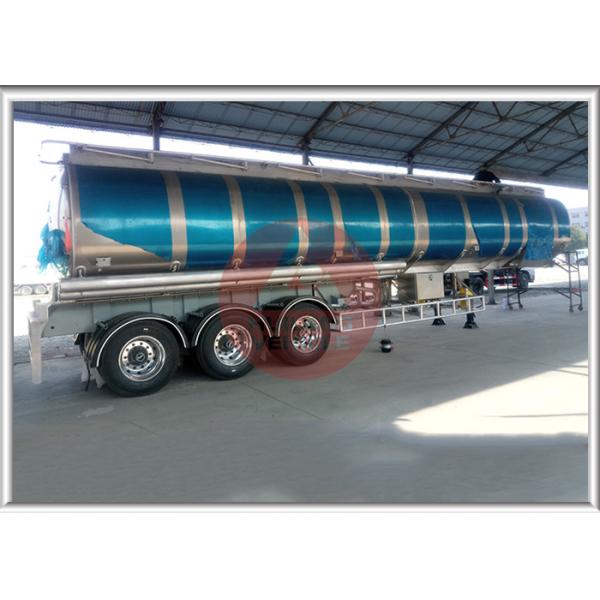

3 Axle 42000 L Fuel Transfer Tank Trailer / Tanker Trailer Large Carrying Capacity
