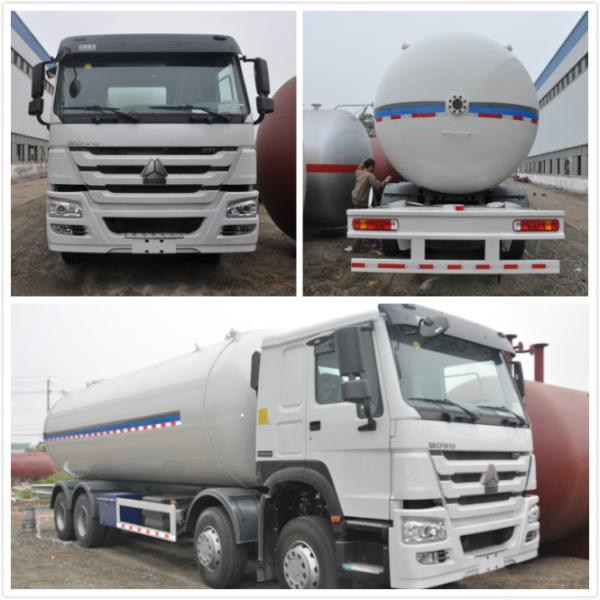

White Color Pressure Vessel LPG Tank Trailer , Stainless Steel Lpg Tank
White Color Pressure Vessel LPG Tank Trailer , Stainless Steel Lpg Tank
White Color Pressure Vessel LPG Tank Trailer , Stainless Steel Lpg Tank
White Color Pressure Vessel LPG Tank Trailer , Stainless Steel Lpg Tank
White Color Pressure Vessel LPG Tank Trailer , Stainless Steel Lpg Tank
White Color Pressure Vessel LPG Tank Trailer , Stainless Steel Lpg Tank
White Color Pressure Vessel LPG Tank Trailer , Stainless Steel Lpg Tank
White Color Pressure Vessel LPG Tank Trailer , Stainless Steel Lpg Tank
Specifications
Brand Name :
Huilong
Model Number :
LPG Tank Truck
Certification :
ISO9001
Place of Origin :
Suizhou, China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
Negotiable
Delivery Time :
4~6 weeks
Packaging Details :
in nude or by wax
Tank Pressure :
Design pressure 1.7Mpa, working pressure <=1.6Mpa
Tank Design Temperature :
Working and design temperature <=50 degree
Overall Dimension :
11700*2500*3000mm
Engine :
WD615.47
Tank MaterialScale :
Q345R 14mm for tank body
Horse Power :
371HP
Description

White Color Pressure Vessel LPG Tank Trailer , Stainless Steel Lpg Tank

Description:

• Key Application

LPG Tank Truck is mainly used to transport LPG (liquefied petroleum gas), including propane, isobutane, etc. It belongs to Pressure vessel category, it need good quality and high safety. High quality LPG tank and safe accessory is mounted on the reliable HOWO chassis

Advantages:

• Strong and reliable

LPG tank is a double-layer structure tank, with stainless steel inside and 16MnR outside. The material is hard and reliable, so the tank made is also solid and reliable.

• Anti-corrosion

LPG storage tank is coated with multi-layer anti-corrosion quick drying paint to protect the tank from other substances, so the tank has strong anti-corrosion performance.

Specifications:

Product Name

LPG Tank Truck

Type

Special vehicle
Place of Origin

Suizhou, China

Chassis

Sinotruk, HOWO

Transportation Object

Liquid petroleum gas

Payload

15000KGS

Curb Weight

16000KGS

Overall Dimension

11700*2500*3000mm

Tank Material

Q345R 14mm for tank body

Wheel Base

4300+1350mm

Engine

Model WD615.47,

6 cylinders in line, 4 strokes,

Turbo charged,

Water cooled diesel engine,

371HP,

Displacement: 9276ml,

Emission standard: Euro II,

Gearbox

HW19710, 10 speed forward, 2 speed reverse

Axle

Front axle HF7, rear axle HW16

Tank Pressure

Design pressure 1.7Mpa, working pressure <=1.6Mpa

Tank Design Temperature

Working and design temperature <=50 degree

Loading & Unloading Valves

Gas phase DN25mm, Liquid phase DN50mm

Other Parts

One set of urgent shut-off device,

one safety valve, one indicator gauge

White Color Pressure Vessel LPG Tank Trailer , Stainless Steel Lpg Tank
