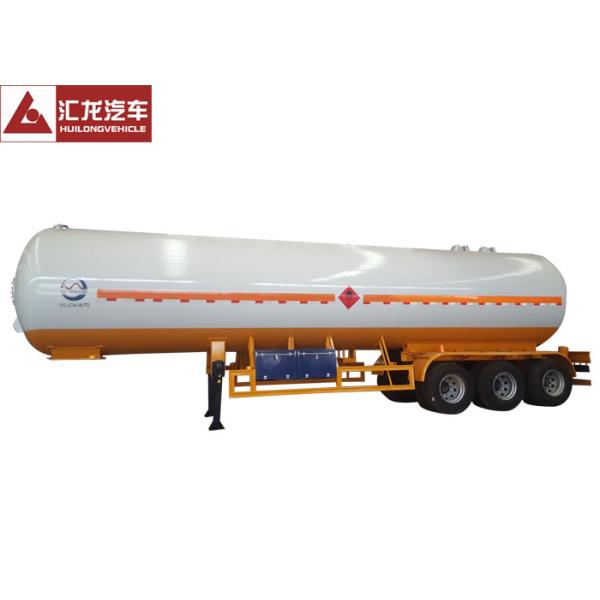

80 CBM Large Volume LPG Tank Trailer 18mm Shell With Stable Performance
80 CBM Large Volume LPG Tank Trailer 18mm Shell With Stable Performance
80 CBM Large Volume LPG Tank Trailer 18mm Shell With Stable Performance
80 CBM Large Volume LPG Tank Trailer 18mm Shell With Stable Performance
80 CBM Large Volume LPG Tank Trailer 18mm Shell With Stable Performance
80 CBM Large Volume LPG Tank Trailer 18mm Shell With Stable Performance
80 CBM Large Volume LPG Tank Trailer 18mm Shell With Stable Performance
80 CBM Large Volume LPG Tank Trailer 18mm Shell With Stable Performance
80 CBM Large Volume LPG Tank Trailer 18mm Shell With Stable Performance
80 CBM Large Volume LPG Tank Trailer 18mm Shell With Stable Performance
80 CBM Large Volume LPG Tank Trailer 18mm Shell With Stable Performance
80 CBM Large Volume LPG Tank Trailer 18mm Shell With Stable Performance
Specifications
Brand Name :
Huilong
Model Number :
LPG Tank
Certification :
ISO9001
Place of Origin :
Suizhou, China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
Negotiable
Delivery Time :
4~6 weeks
Packaging Details :
in nude or by wax
Tank Pressure :
Design pressure 1.7Mpa, working pressure <=1.6Mpa
Tank Design Temperature :
Working and design temperature <=50 degree
Tank Volume :
100CBM
Shell :
18mm
Head :
18mm
Overall Dimension :
13016*3236*3826mm
Material :
Steel, Q345R, steel carbon Q345B
Description

good price 80 CBM big volume LPG tank pressure vessel tank for sale

Description:

• Key Application

LPG storage tank is used to load the propane, liquid nitrogen, dimethyl ether.The LPG storage tank could be divided into underground tank and the ground tank.After the gas tank is completed, it will be heated to reduce the welding stress. All the welding seam is tested. The A and B level welding seam is 100% tested by X-ray. The C and D level welding seam is 100% tested by magnetic powder inspection.Our welder has the National Welder Certificate and ASME welder certificate.

Advantages:

• Good material

LPG storage tank is lined with stainless steel, and the outer lining is Q235B or 16MnR, which is solid, reliable and of high quality, so its service life is longer.

• Easy maintenance

LPG tank is simple in structure and compact in shape, so its maintenance is very simple and does not take too much time.

Specifications:

Product Name LPG Tank Truck
Type Special vehicle
Place of Origin Suizhou, China
Chassis Sinotruk, HOWO
Transportation Object Liquid petroleum gas
Payload 15000KGS
Curb Weight 16000KGS
Overall Dimension 11700*2500*3000mm
Tank Material Q345R 14mm for tank body
Wheel Base 4300+1350mm
Engine

Model WD615.47,

6 cylinders in line, 4 strokes,

Turbo charged,

Water cooled diesel engine,

371HP,

Displacement: 9276ml,

Emission standard: Euro II,
Gearbox HW19710, 10 speed forward, 2 speed reverse
Axle Front axle HF7, rear axle HW16
Tank Pressure Design pressure 1.7Mpa, working pressure <=1.6Mpa
Tank Design Temperature Working and design temperature <=50 degree
Loading & Unloading Valves Gas phase DN25mm, Liquid phase DN50mm
Other Parts

One set of urgent shut-off device,

one safety valve, one indicator gauge

80 CBM Large Volume LPG Tank Trailer 18mm Shell With Stable Performance

80 CBM Large Volume LPG Tank Trailer 18mm Shell With Stable Performance
