12015791 1 Hole 2 Way Female Connector / Tower Waterproof Electrical Connectors
12015791 1 Hole 2 Way Female Connector / Tower Waterproof Electrical Connectors
12015791 1 Hole 2 Way Female Connector / Tower Waterproof Electrical Connectors
12015791 1 Hole 2 Way Female Connector / Tower Waterproof Electrical Connectors
12015791 1 Hole 2 Way Female Connector / Tower Waterproof Electrical Connectors
12015791 1 Hole 2 Way Female Connector / Tower Waterproof Electrical Connectors
12015791 1 Hole 2 Way Female Connector / Tower Waterproof Electrical Connectors
12015791 1 Hole 2 Way Female Connector / Tower Waterproof Electrical Connectors
12015791 1 Hole 2 Way Female Connector / Tower Waterproof Electrical Connectors
12015791 1 Hole 2 Way Female Connector / Tower Waterproof Electrical Connectors
Specifications
Brand Name :
YBADDVANCE
Model Number :
12015791
Certification :
ISO9001
Place of Origin :
China(mainland)
MOQ :
100 units
Price :
Negotiation
Payment Terms :
T/T, Western Union,PayPal , credit card
Supply Ability :
50,000 units/moth
Delivery Time :
About 5-8 work days
Packaging Details :
Inside packing :100 units / lot put into bags.Outside packing :carton 5 layer
P/N :
12015791
Martial :
PBT/PA66
HS code :
8536909000
Gender :
Female
Color :
Black
Type :
Sealed connector
Feature :
Waterproof
WARRANTY :
1 year
Way :
1 hole
PLACE OF ORIGIN :
Shaanxi,China
Description

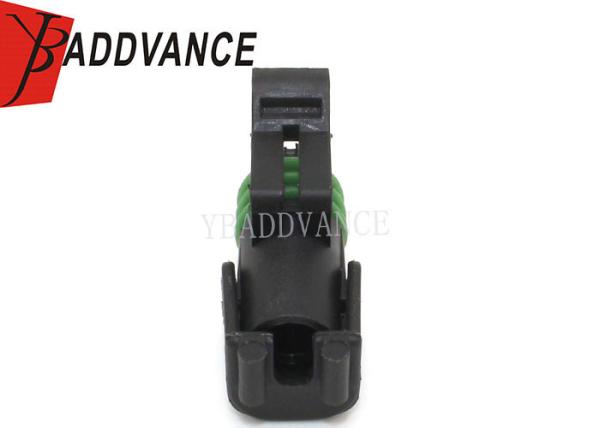

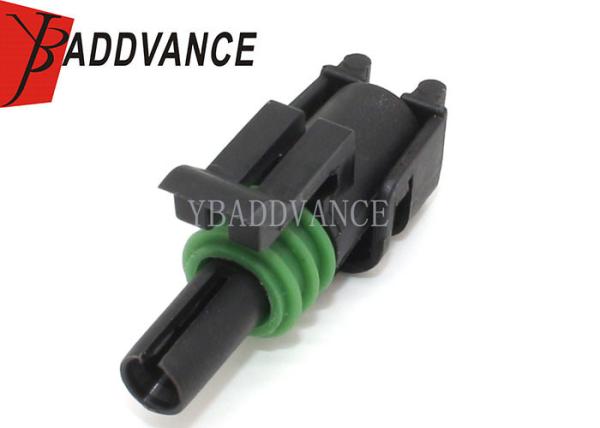

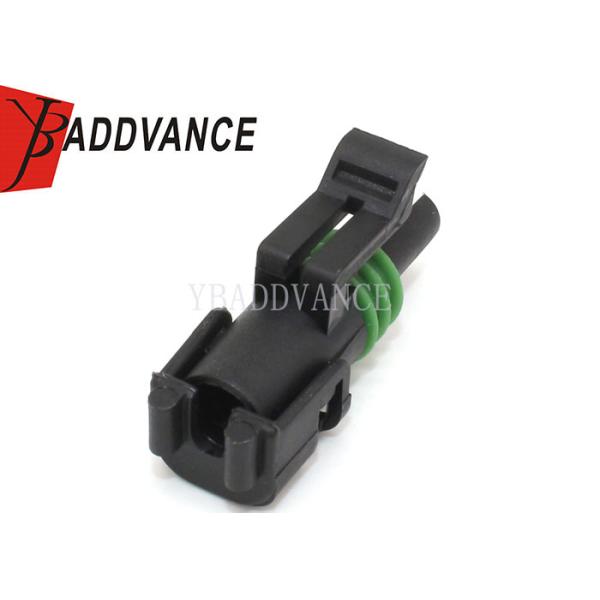

12015791 1 Hole Female Weather Pack Tower Waterproof Connector

Description

1 Hole Female Weather Pack Tower Waterproof Connector

Depth:40.5 mm
Height:20.8 mm
Width: 13.6 mm

Each connection requires a male and female terminal, a seal for each terminal, and a male and female housing.

Pick terminals that match your wire size, then choose a housing that offers the number of connections you'd like to make.

All terminals work with all housings, regardless of wire size.

Terminals require two crimps (terminal to wire strands, terminal to seal to wire insulation). A proper crimping tool is required.

Specification

Item name

12015791 1 Hole Female Weather Pack Tower Waterproof Connector
P/N 12015791

Wire Size

 18-22AWG

Operating Temperature range

 -40℃~125℃

Insulation resistance

 100M Min.

MOQ

 100 units/lot
Key words

1 pin Sealed Connector
Design Tooling

Sending us samples or drawing to design it
Delivery Time

About 5-8 work days
Sealed/Unsealed

sealed

Leak current

 Initial50kPa Min.after durability tests30kPa Min.
The number of hole 1 way
Color Black
Warranty 1 year
Application Automoive Motorcycles

Product Picture Details

12015791 1 Hole 2 Way Female Connector / Tower Waterproof Electrical Connectors

12015791 1 Hole 2 Way Female Connector / Tower Waterproof Electrical Connectors

12015791 1 Hole 2 Way Female Connector / Tower Waterproof Electrical Connectors
