6 Position Male TE Connectivity Deutsch Connectors DTM04-6P Grey Color
6 Position Male TE Connectivity Deutsch Connectors DTM04-6P Grey Color
6 Position Male TE Connectivity Deutsch Connectors DTM04-6P Grey Color
6 Position Male TE Connectivity Deutsch Connectors DTM04-6P Grey Color
6 Position Male TE Connectivity Deutsch Connectors DTM04-6P Grey Color
6 Position Male TE Connectivity Deutsch Connectors DTM04-6P Grey Color
6 Position Male TE Connectivity Deutsch Connectors DTM04-6P Grey Color
6 Position Male TE Connectivity Deutsch Connectors DTM04-6P Grey Color
6 Position Male TE Connectivity Deutsch Connectors DTM04-6P Grey Color
6 Position Male TE Connectivity Deutsch Connectors DTM04-6P Grey Color
6 Position Male TE Connectivity Deutsch Connectors DTM04-6P Grey Color
6 Position Male TE Connectivity Deutsch Connectors DTM04-6P Grey Color
Specifications
Brand Name :
YBADDVANCE
Model Number :
DTM04-6P
Certification :
ISO9001
Place of Origin :
China(mainland)
MOQ :
100 units
Price :
Negotiation
Payment Terms :
T/T, Western Union,PayPal , credit card
Supply Ability :
50,000 units/moth
Delivery Time :
About 5-8 work days
Packaging Details :
Inside packing :100 units / lot put into bags.Outside packing :carton 5 layer
Color :
Grey
P/N :
DTM04-6P
Type :
6 pin deutsch connector
Gender :
Male
Feature :
Waterproof
Way :
6 hole
Martial :
PBT/PA66
HS code :
8536909000
PLACE OF ORIGIN :
Shaanxi,China
Description

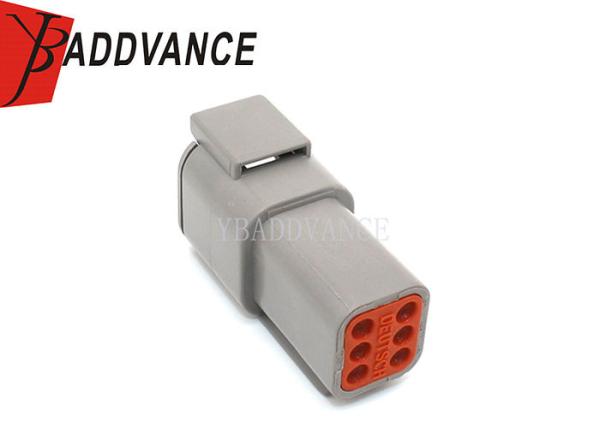

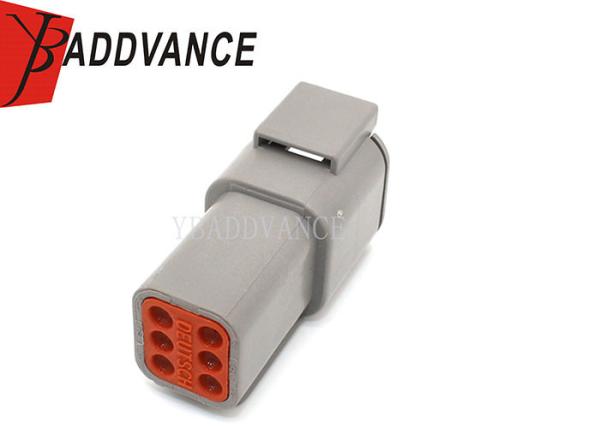

6 Position Male Deutsch DTM TE Connectivity Connector DTM04-6P

Description

6 Position Male Deutsch DTM TE Connectivity Connector

DEUTSCH DTM housings are available in 2, 3, 4, 6, 8, and 12 pin counts and use size 20 DEUTSCH contacts

It is a 6-way environmentally sealed Connector Housing designed specifically for cable to cable applications.
The DTM connector housing is used in harsh environment applications where even a small degradation in connection may be critical.

Height : 23.8 mm
Length: 1.72 inch
Pitch : 4 mm
Width: 19.2mm

The DTM connector line was developed to fill the need for lower amperage, multi-pin, inexpensive connectors.

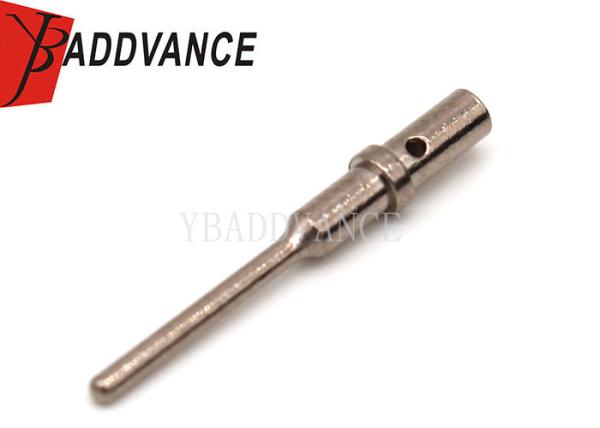

The DTM Series offers the designer the ability to use multiple size 20 contacts, each with 7.5 amp continuous capacity, within a single shell.

Material : Thermoplastic Housing / Silicone Rubber Grommet

High quality items at very reasonable price,excellent high quality products all tested to ensure correct fitment and for quality assurance

Specification

Item name

6 Position Male Deutsch DTM TE Connectivity Connector DTM04-6P
P/N DTM04-6P

Wire Size

 20-22AWG

Operating Temperature range

 -55℃~125℃

Insulation resistance

 100M Min.

MOQ

 100 units/lot
Key words

6 pin Deutsch Connector
Design Tooling

Sending us samples or drawing to design it
Delivery Time

About 5-8 work days
Sealed/Unsealed

sealed

Leak current

 Initial50kPa Min.after durability tests30kPa Min.
The number of hole 6 way
Color Grey
Warranty 1 year
Application Automtoive Motorcycles

Product Picture Details

6 Position Male TE Connectivity Deutsch Connectors DTM04-6P Grey Color

6 Position Male TE Connectivity Deutsch Connectors DTM04-6P Grey Color

6 Position Male TE Connectivity Deutsch Connectors DTM04-6P Grey Color
