Rectangular Housing Deutsch DTM Connector 3 Pin DTM06-3S ATM06-3S ISO 9001 Certified
Rectangular Housing Deutsch DTM Connector 3 Pin DTM06-3S ATM06-3S ISO 9001 Certified
Rectangular Housing Deutsch DTM Connector 3 Pin DTM06-3S ATM06-3S ISO 9001 Certified
Rectangular Housing Deutsch DTM Connector 3 Pin DTM06-3S ATM06-3S ISO 9001 Certified
Rectangular Housing Deutsch DTM Connector 3 Pin DTM06-3S ATM06-3S ISO 9001 Certified
Rectangular Housing Deutsch DTM Connector 3 Pin DTM06-3S ATM06-3S ISO 9001 Certified
Rectangular Housing Deutsch DTM Connector 3 Pin DTM06-3S ATM06-3S ISO 9001 Certified
Rectangular Housing Deutsch DTM Connector 3 Pin DTM06-3S ATM06-3S ISO 9001 Certified
Rectangular Housing Deutsch DTM Connector 3 Pin DTM06-3S ATM06-3S ISO 9001 Certified
Rectangular Housing Deutsch DTM Connector 3 Pin DTM06-3S ATM06-3S ISO 9001 Certified
Rectangular Housing Deutsch DTM Connector 3 Pin DTM06-3S ATM06-3S ISO 9001 Certified
Rectangular Housing Deutsch DTM Connector 3 Pin DTM06-3S ATM06-3S ISO 9001 Certified
Specifications
Brand Name :
YBADDVANCE
Model Number :
DTM06-3S
Certification :
ISO9001
Place of Origin :
China(mainland)
MOQ :
100 units
Price :
Negotiation
Payment Terms :
T/T, Western Union,PayPal , credit card
Supply Ability :
50,000 units/moth
Delivery Time :
About 5-8 work days
Packaging Details :
Inside packing :100 units / lot put into bags.Outside packing :carton 5 layer
Color :
Grey
P/N :
DTM06-3S
Type :
deutsch 3 pin connector
Gender :
Female
Feature :
Waterproof
Way :
3 hole
Martial :
PBT/PA66
HS code :
8536909000
Description

3 Pin Deutsch DTM Series Rectangular Housing Connector DTM06-3S

Description

3 Pin Deutsch DTM Series Rectangular Housing Connector

1 row , 3 way

Plug Housing: DTM06-3S
Wedgelock: WM-3S
Terminals: 0462-201-20141

DEUTSCH DTM housings are available in 2, 3, 4, 6, 8, and 12 pin counts and use size 20 DEUTSCH contacts

DTM housings feature an integrated latch for mating.

The connectors have a maximum current capacity of 7.5 Amps and a temperature range of -55°C -125°C.

Series : DTM Series
Configuration : 3 Way Housing + 1 Wedgelock＋3 terminal+3 Wire seals
Wire Range : 20-16 Awg
Material : Thermoplastic Housing / Silicone Rubber Grommet

High quality items at very reasonable price,excellent high quality products all tested to ensure correct fitment and for quality assurance

Specification

Item name

3 Pin Deutsch DTM Series Rectangular Housing Connector DTM06-3S
P/N DTM06-3S

Wire Size

 20-22AWG

Operating Temperature range

 -40℃~125℃

Insulation resistance

 100M Min.

MOQ

 100 units/lot
Key words

3 pin Deutsch Connector
Design Tooling

Sending us samples or drawing to design it
Delivery Time

About 5-8 work days
Sealed/Unsealed

sealed

Leak current

 Initial50kPa Min.after durability tests30kPa Min.
The number of hole 3 way
Color Grey
Warranty 1 year
Application Automtoive Motorcycles

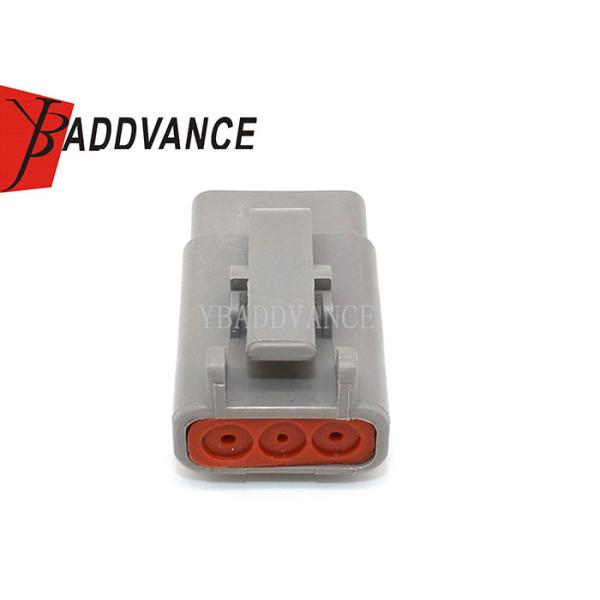

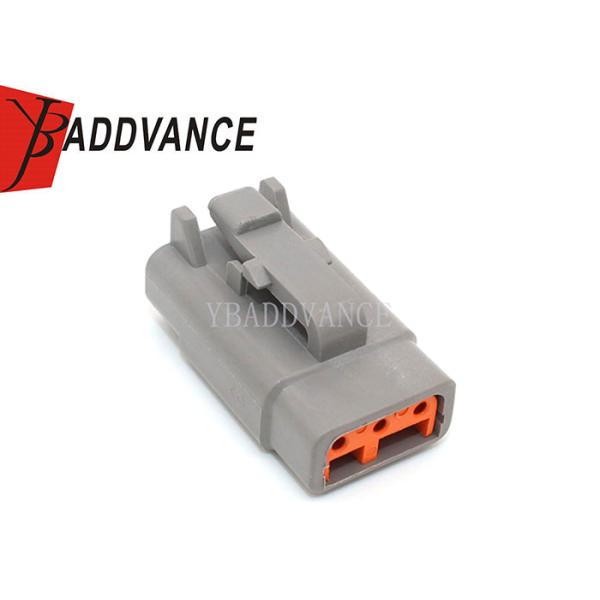

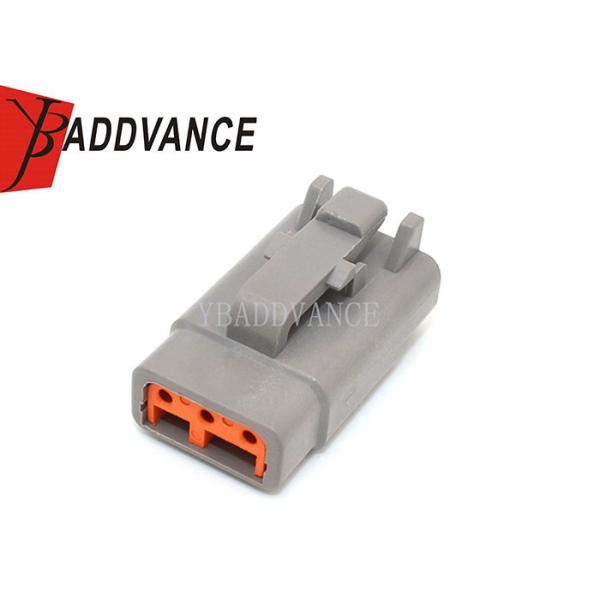

Product Picture Details

Rectangular Housing Deutsch DTM Connector 3 Pin DTM06-3S ATM06-3S ISO 9001 Certified

Rectangular Housing Deutsch DTM Connector 3 Pin DTM06-3S ATM06-3S ISO 9001 Certified

Rectangular Housing Deutsch DTM Connector 3 Pin DTM06-3S ATM06-3S ISO 9001 Certified
