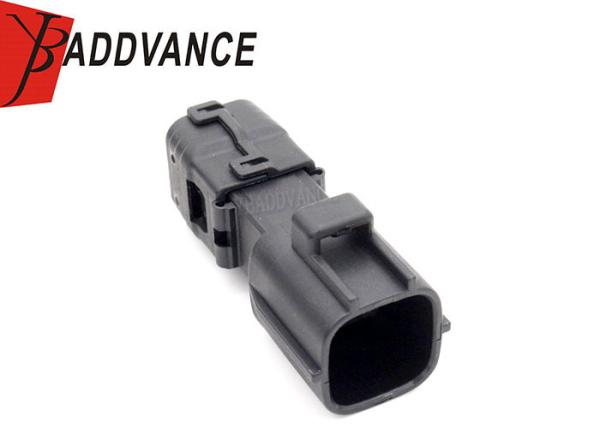

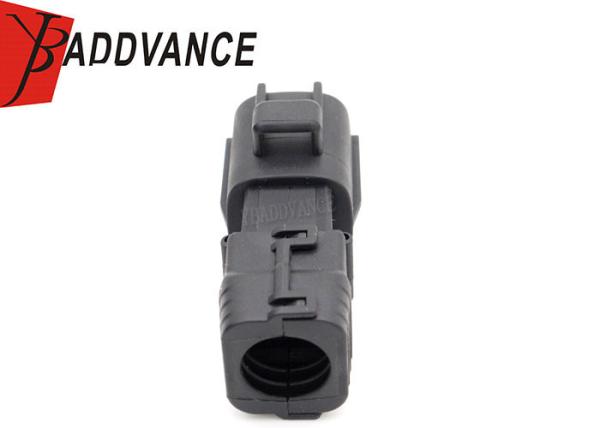

6188-0472 Sumitomo 4 Pin Connector Sealed Male Connector Plug Black
6188-0472 Sumitomo 4 Pin Connector Sealed Male Connector Plug Black
6188-0472 Sumitomo 4 Pin Connector Sealed Male Connector Plug Black
6188-0472 Sumitomo 4 Pin Connector Sealed Male Connector Plug Black
6188-0472 Sumitomo 4 Pin Connector Sealed Male Connector Plug Black
6188-0472 Sumitomo 4 Pin Connector Sealed Male Connector Plug Black
6188-0472 Sumitomo 4 Pin Connector Sealed Male Connector Plug Black
6188-0472 Sumitomo 4 Pin Connector Sealed Male Connector Plug Black
Specifications
Brand Name :
YBADDVANCE
Model Number :
6188-0472
Certification :
ISO9001
Place of Origin :
China(mainland)
MOQ :
100 UNITS
Price :
USD 0.5-0.7 Per set with crimp terminals
Payment Terms :
T/T, Western Union,paypal,credit card
Supply Ability :
50,000 units/month
Delivery Time :
About 5-8 work days
Packaging Details :
Inside packing：100 units/lot put into bags. Outside packing：carton 5 layers.
Keywords :
Sumitomo 4 Pin Connector
Material :
Plastic PA66
Operating Temperature range :
-40℃~120℃
Color :
Black
Sealed/Unsealed :
Sealed
Male/Female :
Male
Sumitomo Part Nu :
6188-0472
Number of position :
4 Pin
Leak current :
10μA Max.
Insulation resistance :
100MΩ Min.
Description

6188-0472 Sumitomo 4 Pin Connector Sealed Male Connector Plug Black

Product Description

It's 4 Pin male connector black color with crimp terminals.YBADDVANCE supplier make our own tooling to replace sumitomo brand connectors.The connectors can replace your factory wire harnesses and the samples are available if you need to test it.

Specification

Keywords 4 Pin sealed male connector
Original Number 6188-0472
Type Waterproof connector
Male/Female Male
Material PA66
Number of Rows 2
Contact resistance

Initial
3mΩ Max.
after durability tests
10mΩ Max
Leak current 10μA Max.
Insulation resistance 100MΩ Min.
seal

Initial
98kPa Min.
after durability tests
98kPa Min.
Quality Control All goods will be 100% inspected before shipment
Color Black
Operating Temperature range -40℃~120℃
Sample We can provide you samples before place an order
Including Connector housing,terminals,rubber seals
Main products Electrical Connectors,wire harnesses and fuel injector repair kits..
Delivery Time About 3-7 days
Replacement Brand TE/AMP,Sumitomo,bosh,delphi,kostal,FCI,FEP,furukawa and so on..
Design Ability Please send us drawing or samples to design OEM&ODM
Market Germany,Finland,UK,USA,CANADA,ITALY and so on...
Gross weight 1.5kgs/100 pieces
Shipping express DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL

More details about pictures

6188-0472 Sumitomo 4 Pin Connector Sealed Male Connector Plug Black

6188-0472 Sumitomo 4 Pin Connector Sealed Male Connector Plug Black
