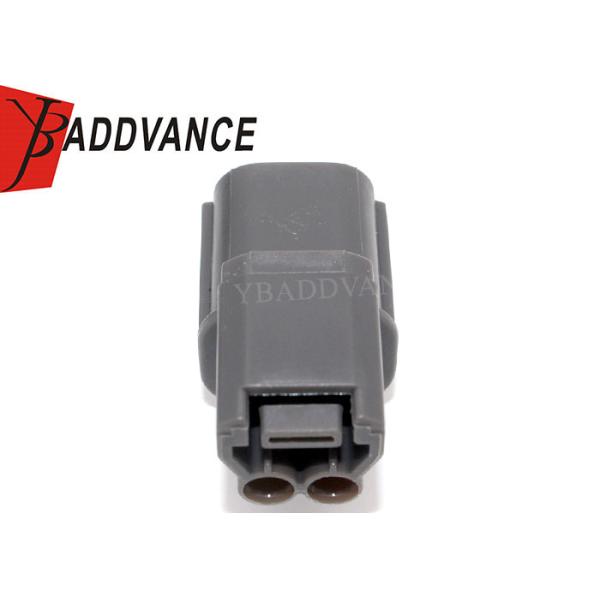

2 Pin HW 090 Male Connector 6181-0070 Fit For OBD1 Honda Vtec Solenoid Connectors
2 Pin HW 090 Male Connector 6181-0070 Fit For OBD1 Honda Vtec Solenoid Connectors
2 Pin HW 090 Male Connector 6181-0070 Fit For OBD1 Honda Vtec Solenoid Connectors
2 Pin HW 090 Male Connector 6181-0070 Fit For OBD1 Honda Vtec Solenoid Connectors
2 Pin HW 090 Male Connector 6181-0070 Fit For OBD1 Honda Vtec Solenoid Connectors
2 Pin HW 090 Male Connector 6181-0070 Fit For OBD1 Honda Vtec Solenoid Connectors
2 Pin HW 090 Male Connector 6181-0070 Fit For OBD1 Honda Vtec Solenoid Connectors
2 Pin HW 090 Male Connector 6181-0070 Fit For OBD1 Honda Vtec Solenoid Connectors
2 Pin HW 090 Male Connector 6181-0070 Fit For OBD1 Honda Vtec Solenoid Connectors
2 Pin HW 090 Male Connector 6181-0070 Fit For OBD1 Honda Vtec Solenoid Connectors
Specifications
Brand Name :
YBADDVANCE
Model Number :
6181-0070
Certification :
ISO9001
Place of Origin :
China(mainland)
MOQ :
100 UNITS
Price :
Negotiation
Payment Terms :
T/T, Western Union,paypal,credit card
Supply Ability :
50,000 units/month
Delivery Time :
About 5-8 work days
Packaging Details :
Inside packing：100 units/lot put into bags. Outside packing：carton 5 layers.
Wire Gauge :
0.75 mm²
Gender :
Male
Mating Part No. :
6189-0129
Sumitomo Part No. :
6181-0070
TPA No. :
6918-0323
Tab size(mm) :
2.3mm(090)
Faminly :
HW sealed series (old series)
Material :
PBT
Leak current :
100μA Max.
Insulation resistance :
100MΩ Min.
Description

2 Pin HW 090 Male Connector 6181-0070 Fit For OBD1 Honda Vtec Solenoid Connectors

Product Description

2 Pin HW Sealed Series Male Connector Kit 6181-0070 with Retainer, Terminals, & Seals

Terminal wire size .5 - 1.3 mm (16-22 AWG)

YBADDVANCE Made with the same OEM connectors, terminals and seals as the factory harness

Terminal
2.3mm 1500-0105
2.3mm 1500-0134

Wire seals
2.3mm 7165-0385
2.3mm 7165-0118
2.3mm 7165-0119


What's Included:

1XMale 2 Way Connector
1XHarness Lock
2X Wire Terminal 18-16 AWG
2XWire Seal

Specification

Keywords 2 pin sumitomo male connector
Sumitomo Part Number 6181-0070
Series HW sealed 2.3mm 090 series
Gender male
Material PBT
Number of Rows 1 row
Number of Pin

2 pin
Leak current 100μA Max.
Insulation resistance 100MΩ Min.
Seal Initial
49.0kPa Min.
after durability tests
29.4kPa Min.
Quality Control All goods will be 100% inspected before shipment
Color Dark Gray
Operating Temperature range -40℃~120℃
Sample We can provide you samples before place an order
Including Connector housing,terminals,rubber seals
Main products Electrical Connectors,wire harnesses and fuel injector repair kits..
Delivery Time About 3-7 days
Replacement Brand TE/AMP,Sumitomo,bosh,delphi,kostal,FCI,FEP,furukawa and so on..
Design Ability Please send us drawing or samples to design OEM&ODM
Market Germany,Finland,UK,USA,CANADA,ITALY and so on...
Gross weight 1kgs/100 pieces
Shipping express DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL

More details about pictures

2 Pin HW 090 Male Connector 6181-0070 Fit For OBD1 Honda Vtec Solenoid Connectors

2 Pin HW 090 Male Connector 6181-0070 Fit For OBD1 Honda Vtec Solenoid Connectors

2 Pin HW 090 Male Connector 6181-0070 Fit For OBD1 Honda Vtec Solenoid Connectors
