2 Hole Female Weather Pack Electrical Connectors 280 Sealed Series 15300027
2 Hole Female Weather Pack Electrical Connectors 280 Sealed Series 15300027
2 Hole Female Weather Pack Electrical Connectors 280 Sealed Series 15300027
2 Hole Female Weather Pack Electrical Connectors 280 Sealed Series 15300027
2 Hole Female Weather Pack Electrical Connectors 280 Sealed Series 15300027
2 Hole Female Weather Pack Electrical Connectors 280 Sealed Series 15300027
2 Hole Female Weather Pack Electrical Connectors 280 Sealed Series 15300027
2 Hole Female Weather Pack Electrical Connectors 280 Sealed Series 15300027
Specifications
Brand Name :
YBADDVANCE
Model Number :
15300027
Certification :
ISO9001
Place of Origin :
China(mainland)
MOQ :
100 units
Price :
Negotiation
Payment Terms :
T/T, Western Union,PayPal , credit card
Supply Ability :
50,000 units/moth
Delivery Time :
About 5-8 work days
Packaging Details :
Inside packing :100 units / lot put into bags.Outside packing :carton 5 layer
Color :
Black
Martial :
PBT/PA66
P/N :
15300027
WARRANTY :
1 year
HS code :
8536909000
Gender :
Male
Type :
automotive weather pack connectors
Feature :
Waterproof
Way :
2 hole
PLACE OF ORIGIN :
Shaanxi,China
Description

2 Hole Female Metri-Pack 280 Sealed Series Connectors 15300027

Description

2 Hole Female Metri-Pack 280 Sealed Series Connectors

Metri-Pack 280 sealed connectors with triple rib silicone rubber seals for environmental protection and a standard ISO 2.8mm configuration.

These Metri-Pack 280 sealed connectors have a low energy, low voltage capability, a maximum continuous current of 30 A.

Height : 25 mm

Width: 25.2 mm

Depth: 29.9 mm

Minimum Operating Temperature: -40°C
Maximum Operating Temperature: +125°C

Following are YBADDVANCE Connection Type :

Wire to Wire
Wire to Board
Wire to Device

Fits wires from 0.5mm - 1.2mm (18 - 22 AWG)

These connectors come with the terminals and seals

High quality items at very reasonable price,excellent high quality products all tested to ensure correct fitment and for quality assurance

Specification

Item name

2 Hole Female Metri-Pack 280 Sealed Series Connectors 15300027
P/N 15300027

Wire Size

 18-22AWG

Operating Temperature range

 -40℃~125℃

Insulation resistance

 100M Min.

MOQ

 100 units/lot
Key words

2 pin sealed Connector
Design Tooling

Sending us samples or drawing to design it
Delivery Time

About 5-8 work days
Sealed/Unsealed

sealed

Leak current

 Initial50kPa Min.after durability tests30kPa Min.
The number of hole 2 way
Color Black
Warranty 1 year
Application Automoive Motorcycles

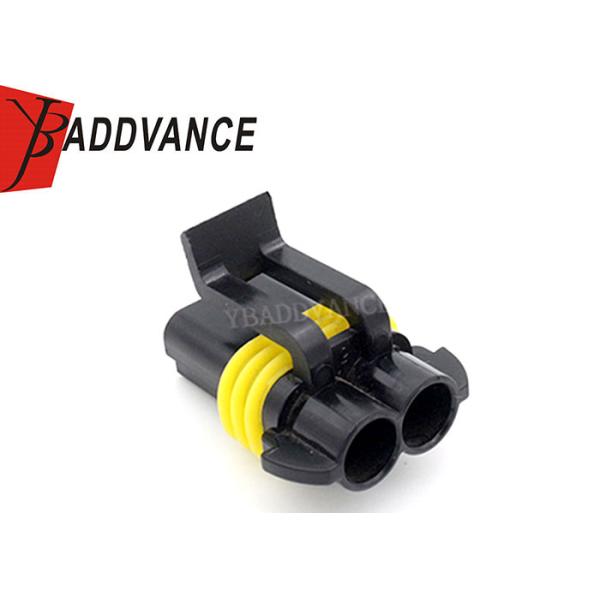

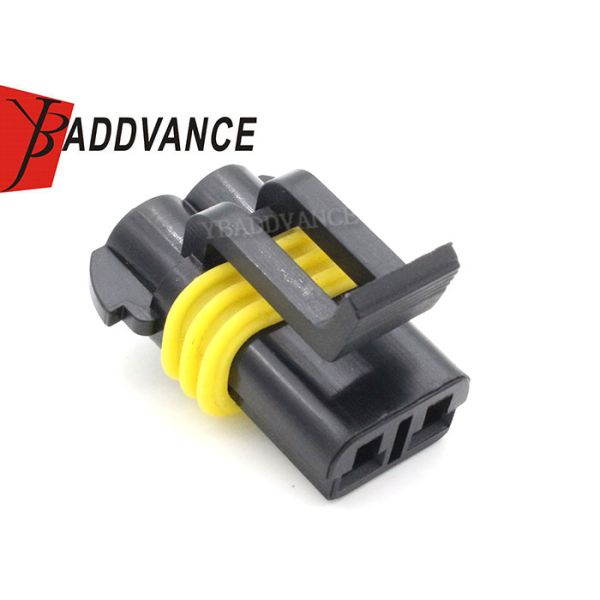

Product Picture Details

2 Hole Female Weather Pack Electrical Connectors 280 Sealed Series 15300027

2 Hole Female Weather Pack Electrical Connectors 280 Sealed Series 15300027
