2 Pin Female RH 0.64mm (025) Bottom Slot Housing Connector
2 Pin Female RH 0.64mm (025) Bottom Slot Housing Connector
2 Pin Female RH 0.64mm (025) Bottom Slot Housing Connector
2 Pin Female RH 0.64mm (025) Bottom Slot Housing Connector
2 Pin Female RH 0.64mm (025) Bottom Slot Housing Connector
2 Pin Female RH 0.64mm (025) Bottom Slot Housing Connector
2 Pin Female RH 0.64mm (025) Bottom Slot Housing Connector
2 Pin Female RH 0.64mm (025) Bottom Slot Housing Connector
2 Pin Female RH 0.64mm (025) Bottom Slot Housing Connector
2 Pin Female RH 0.64mm (025) Bottom Slot Housing Connector
Specifications
Brand Name :
YBADDVANCE
Model Number :
bc7021Y-0.6-21
Certification :
ISO9001
Place of Origin :
China(mainland)
MOQ :
100 units
Price :
Negotiation
Payment Terms :
T/T, Western Union,PayPal , credit card
Supply Ability :
50,000 units/moth
Delivery Time :
About 5-8 work days
Packaging Details :
Inside packing :100 units / lot put into bags.Outside packing :carton 5 layer
P/N :
bc7021Y-0.6-21
Martial :
PBT/PA66
Type :
Sealed connector
Gender :
Female
Way :
2 hole
HS code :
8536909000
Feature :
Waterproof
Color :
Black
WARRANTY :
1 year
PLACE OF ORIGIN :
Shaanxi,China
Description

2 Pin Female RH 0.64mm (025) Bottom Slot Housing Connector​

Description

2 Pin Female RH 0.64mm (025) Bottom Slot Housing Connector

Number of Positions: 2
Number of Rows: 1

Tab Width mm(inches): 0.64(025)

Series : RH Series Connectors

It included : 1 Housing connector +2 Terminals +2 Seals +1 Lock

The connector has bottom slot , please check it carefully before you purchse it

Specification

Item name

2 Pin Female RH 0.64mm (025) Bottom Slot Housing Connector
Part Number bc7021Y-0.6-21

Wire Size

 18-20AWG

Operating Temperature range

 -40℃~125℃

Insulation resistance

 100M Min.

MOQ

 100 units/lot
Key words

2 pin waterproof Connector
Design Tooling

Sending us samples or drawing to design it
Delivery Time

About 5-8 work days
Sealed/Unsealed

sealed

Leak current

 Initial50kPa Min.after durability tests30kPa Min.
The number of hole 2 way
Color Black
Warranty 1 year
Application Automoive Motorcycles

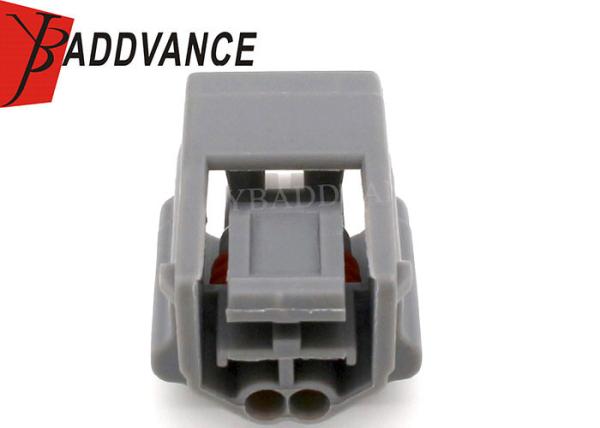

Product Picture Details

2 Pin Female RH 0.64mm (025) Bottom Slot Housing Connector

2 Pin Female RH 0.64mm (025) Bottom Slot Housing Connector

2 Pin Female RH 0.64mm (025) Bottom Slot Housing Connector
