3 Pin 3-way Male Bosh Diesel Injector Connector Plugs 1928404227
3 Pin 3-way Male Bosh Diesel Injector Connector Plugs 1928404227
3 Pin 3-way Male Bosh Diesel Injector Connector Plugs 1928404227
3 Pin 3-way Male Bosh Diesel Injector Connector Plugs 1928404227
3 Pin 3-way Male Bosh Diesel Injector Connector Plugs 1928404227
3 Pin 3-way Male Bosh Diesel Injector Connector Plugs 1928404227
Specifications
Brand Name :
YBADDVANCE
Model Number :
1928404227
Certification :
ISO9001
Place of Origin :
China(mainland)
MOQ :
100 UNITS
Price :
USD 0.5-0.7 Per set with crimp terminals
Payment Terms :
T/T, Western Union,paypal,credit card
Supply Ability :
50,000 units/month
Delivery Time :
About 5-8 work days
Packaging Details :
Inside packing：100 units/lot put into bags. Outside packing：carton 5 layers.
Part Number :
1928404227
Keywords :
3 way male connector
Length :
43.9 mm
Width :
19.4 mm
Height :
23.8 mm
Temperature range min :
-40°C
Temperature range max :
150°C
Series :
Bosh Connector
Leak current :
100μA Max.
Insulation resistance :
100MΩ Min.
Description

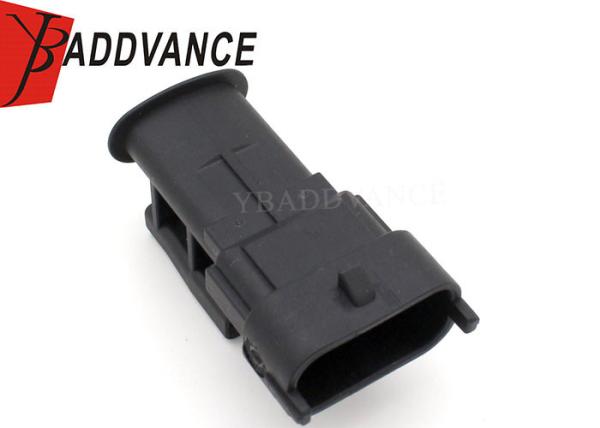

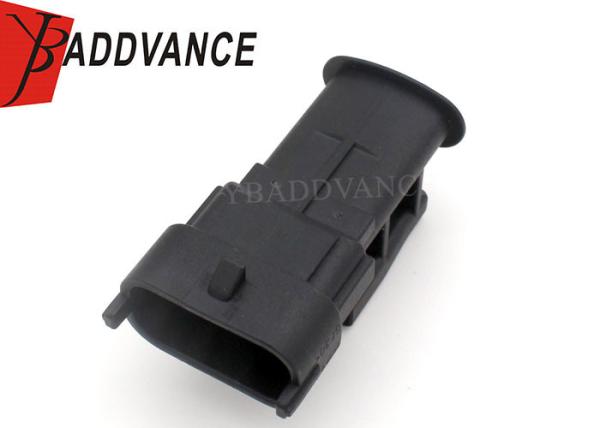

3 Pin 3-way Male Bosh Diesel Injector Connector Plugs 1928404227

Product Description

3 Pin male diesel injector connector from YBADDVANCE supplier and come with the following kits

1 X Connector housing

3 X Wire seals

3 X crimp terminals

Number of Positions : 3
Color : Black
Length : 43.9 mm
Width : 19.4 mm
Height : 23.8 mm
Temperature range min : -40°C
Temperature range max : 150°C
Degree of Protection : IP 54K, 69K

Specification

Keywords 3 way male connector
Degree of Protection IP 54K, 69K
Type Bosh sealed connector
Male/Female male
Material PBT
Application For diesel injectors
Contact resistance

Initial
3mΩ Max.
after durability tests
10mΩ Max.
Leak current 100μA Max.
Insulation resistance 100MΩ Min.
seal

Initial
49.0kPa Min.
after durability tests
29.4kPa Min.
Quality Control All goods will be 100% inspected before shipment
Color Black
Operating Temperature range -40℃~150℃
Sample We can provide you samples before place an order
Including Connector housing,terminals,rubber seals
Main products Electrical Connectors,wire harnesses and fuel injector repair kits..
Delivery Time About 3-7 days
Replacement Brand TE/AMP,Sumitomo,bosh,delphi,kostal,FCI,FEP,furukawa and so on..
Design Ability Please send us drawing or samples to design OEM&ODM
Market Germany,Finland,UK,USA,CANADA,ITALY and so on...
Gross weight 1kgs/100 pieces
Shipping express DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL

More details about pictures

3 Pin 3-way Male Bosh Diesel Injector Connector Plugs 1928404227

3 Pin 3-way Male Bosh Diesel Injector Connector Plugs 1928404227

3 Pin 3-way Male Bosh Diesel Injector Connector Plugs 1928404227
