13603422 13603408 Automotive Electrical Connectors 20 Pin Female Connector For Transmission GM LS1 LS6 97-06
13603422 13603408 Automotive Electrical Connectors 20 Pin Female Connector For Transmission GM LS1 LS6 97-06
13603422 13603408 Automotive Electrical Connectors 20 Pin Female Connector For Transmission GM LS1 LS6 97-06
13603422 13603408 Automotive Electrical Connectors 20 Pin Female Connector For Transmission GM LS1 LS6 97-06
13603422 13603408 Automotive Electrical Connectors 20 Pin Female Connector For Transmission GM LS1 LS6 97-06
13603422 13603408 Automotive Electrical Connectors 20 Pin Female Connector For Transmission GM LS1 LS6 97-06
13603422 13603408 Automotive Electrical Connectors 20 Pin Female Connector For Transmission GM LS1 LS6 97-06
13603422 13603408 Automotive Electrical Connectors 20 Pin Female Connector For Transmission GM LS1 LS6 97-06
Specifications
Brand Name :
YBADDVANCE
Model Number :
13603422 13603408
Certification :
ISO9001
Place of Origin :
China(mainland)
MOQ :
100 UNITS
Price :
negotiation
Payment Terms :
T/T, Western Union,paypal,credit card
Supply Ability :
50,000 units/month
Delivery Time :
About 5-8 work days
Packaging Details :
Inside packing：100 units/lot put into bags. Outside packing：carton 5 layers.
Part-No. :
13603422 13603408
Pin :
20 pin
STYLE :
Automotive Electrical Connectors
Gender :
Female
HS CODE :
8536909000
Color :
Black Gray
Sealed/Unsealed :
Sealed
MOQ :
100 pcs
Gross weight :
2kgs/100pcs
Application :
For GM LS1 LS6 97-06
Description

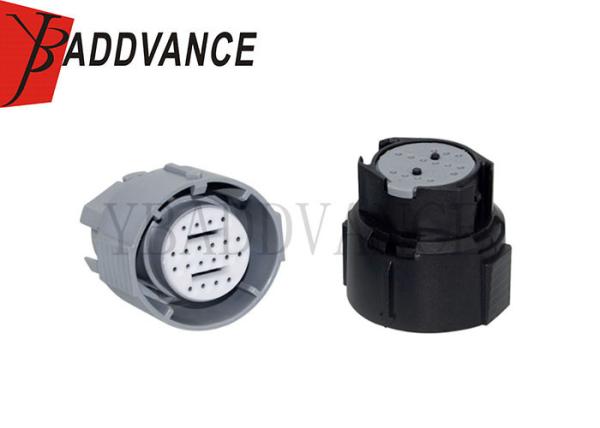

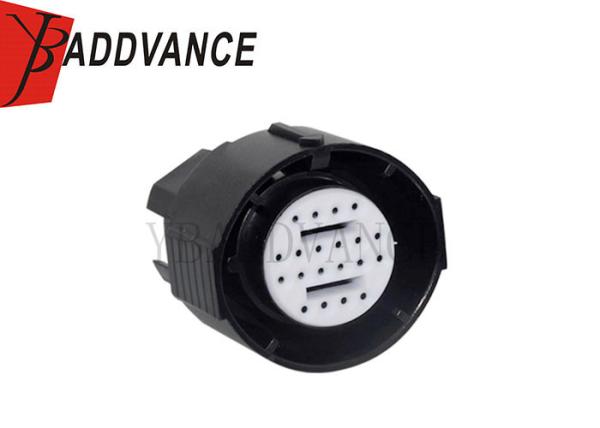

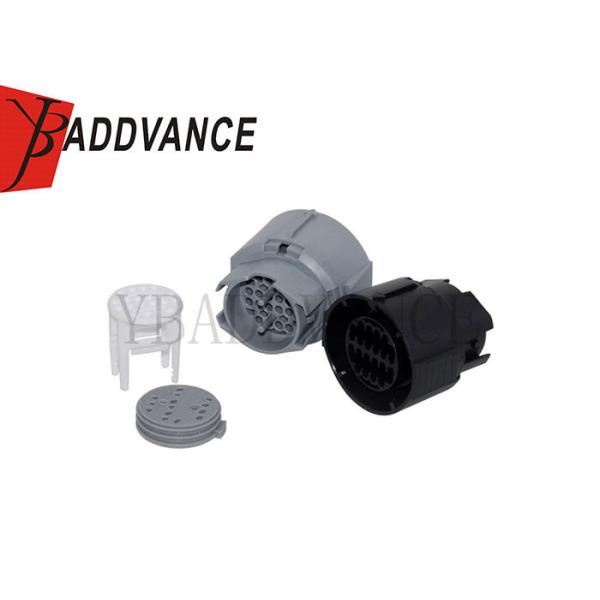

13603422 13603408 20 Pin Female Connector For The Transmission GM LS1 LS6 97-06

Description

13603422 13603408 20 Pin Female Connector Black Gray For The Transmission

This part come with the following types:

Original number:13603422 13603408

Pin n/p: 20 pin

Gender:Female

Material :PBT

Terminal:Copper Alloy, Brass, Phosphor Bronze.

Color:Black gray


Application:For GM LS1 LS6 97-06

Specification

Product Name 20 Pin Female Connector
Delivery Time About 3-7 days
Way 20 Way
Wire Size 16-22AWG
P/N 13603422 13603408
Gender Female
MOQ 100 units/lot
Sealed/Unsealed Sealed
Color Black gray
Gross weight 1.5kgs/100 pieces
Shipping express DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL
Design Ability Please send us drawing or samples to design OEM&ODM
Operating Temperature range -40~120
Contact resistance Initial8m Max.after durability tests16m Ma
Leak current Initial50kPa Min.after durability tests30kPa Min.
Insulation resistance 100MΩ Min.
Including Connector housing,terminals,rubber seals
Replacement Brand TE/AMP,Sumitomo,bosh,delphi,kostal,FCI,FEP,furukawa and so on..
Material PBT,Plastic PA66,pbt gf30 and so on...

Competitive Advantages

1. Good after-sale service.
2. There are more than 1000 pairs of mold that designed by ourself.
3. We 100% promise to provide you the Highest Quality Components. Some of items are original ,but most are from our own factory.
4. We have a professional team that includes salesman,engineers,workshop workers and our own shipping agency.
5. Our products have been exported to United States,Canada,Italy,Latvia,Netherlands,Germany,Norway, Poland, Finland, Spain, UK, France, Russia,Brazil, Mexico, Australia, New zealand,Japan, Korea, Thailand, Indonesia, Malaysia,Singapore,and many other countries.

Hot products

Sumitomo Connector Pin number Gender Application
6189-0647 4 Pin Female For T-PRS-Switch
6189-7396 / 90980-12A88 1 Pin Female For Lexus Toyota
6195-0038 8 Pin DL 090 Female
6187-2171 2 Pin Female For Automotive
6189-0134 6918-0332 8 Pin HW 090 Female
So on.. ... ... ...
Deutsch Connector Pin number Gender
DTM06-3S-E007 3 Pin Female connector
DTM06-2S-EE03 2 Pin Female connector
DT04-8P 8 Pin Male connector
DTM04-12P 12 Pin Male connector
So on.. ... ... ...
