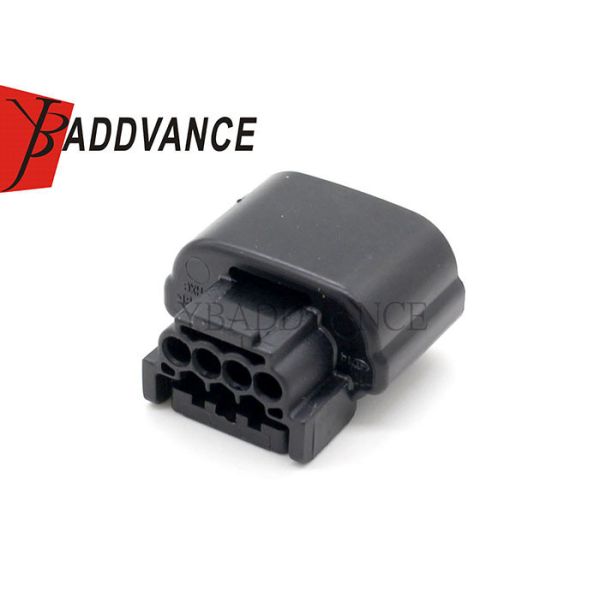

6189-6948 4 Pin TS 025 22 Awg Sumitomo Automotive Connectors
6189-6948 4 Pin TS 025 22 Awg Sumitomo Automotive Connectors
6189-6948 4 Pin TS 025 22 Awg Sumitomo Automotive Connectors
6189-6948 4 Pin TS 025 22 Awg Sumitomo Automotive Connectors
6189-6948 4 Pin TS 025 22 Awg Sumitomo Automotive Connectors
6189-6948 4 Pin TS 025 22 Awg Sumitomo Automotive Connectors
6189-6948 4 Pin TS 025 22 Awg Sumitomo Automotive Connectors
6189-6948 4 Pin TS 025 22 Awg Sumitomo Automotive Connectors
6189-6948 4 Pin TS 025 22 Awg Sumitomo Automotive Connectors
6189-6948 4 Pin TS 025 22 Awg Sumitomo Automotive Connectors
Specifications
Brand Name :
YBADDVANCE
Model Number :
6189-6948
Certification :
ISO9001
Place of Origin :
China(mainland)
MOQ :
100 UNITS
Price :
negotiation
Payment Terms :
T/T, Western Union,paypal,credit card
Supply Ability :
50,000 units/month
Delivery Time :
About 5-8 work days
Packaging Details :
Inside packing：100 units/lot put into bags. Outside packing：carton 5 layers.
Part-No. :
6189-6948
Pin :
4 pin
STYLE :
Sumitomo Automotive Connectors
Gender :
Female
HS CODE :
8536909000
Color :
Gray
Sealed/Unsealed :
Sealed
MOQ :
100 pcs
Gross weight :
2kgs/100pcs
Application :
For 24-22 Awg Wire
Description

6189-6948 4 Pin TS 025 Sealed Series For 24-22 Awg Wire Sumitomo Connector

Description

This part come with the following types:

Original number:6189-6948

Material:Housing:PBT+G,PA66+GF;Terminal:Copper Alloy, Brass, Phosphor Bronze.

Male or Female:Female

Number of Positions:4 Pin

Operating Temperature range:-40℃~120℃

Typical Application:IAC valve on many Honda motorcycle and power-sport vehicles

Function:Automotive Electrical Wiring Harness

Certification:TUV,T S16949,ISO14001 system and RoHS.

Payment term:30% deposit in advance,70% before shipment,100% TT in advance

Delivery Time:Enough stock and strong production capacity ensure timely delivery.


Application: For Automotive

Specification

Product Name 4 Pin TS 025 Sealed Series Sumitomo Connector
Delivery Time About 3-7 days
Way 4 Way
Wire Size 24-22AWG
P/N 6189-6948
Gender Female
MOQ 100 units/lot
Sealed/Unsealed Sealed
Color Gray
Gross weight 1.5kgs/100 pieces
Shipping express DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL
Design Ability Please send us drawing or samples to design OEM&ODM
Operating Temperature range -40~120
Contact resistance Initial8m Max.after durability tests16m Ma
Leak current Initial50kPa Min.after durability tests30kPa Min.
Insulation resistance 100MΩ Min.
Including Connector housing,terminals,rubber seals
Replacement Brand TE/AMP,Sumitomo,bosh,delphi,kostal,FCI,FEP,furukawa and so on..
Material PBT,Plastic PA66,pbt gf30 and so on...

Hot products

Sumitomo Connector Pin number Gender Application
6189-0647 4 Pin Female For T-PRS-Switch
6189-7396 / 90980-12A88 1 Pin Female For Lexus Toyota
6195-0038 8 Pin DL 090 Female
6187-2171 2 Pin Female For Automotive
6189-0134 6918-0332 8 Pin HW 090 Female
So on.. ... ... ...
Deutsch Connector Pin number Gender
DTM06-3S-E007 3 Pin Female connector
DTM06-2S-EE03 2 Pin Female connector
DT04-8P 8 Pin Male connector
DTM04-12P 12 Pin Male connector
So on.. ... ... ...

More details about pictures

6189-6948 4 Pin TS 025 22 Awg Sumitomo Automotive Connectors6189-6948 4 Pin TS 025 22 Awg Sumitomo Automotive Connectors
