2 Way Male Female Tyco AMP Connectors 282104-1 282080-1 Black Color
2 Way Male Female Tyco AMP Connectors 282104-1 282080-1 Black Color
2 Way Male Female Tyco AMP Connectors 282104-1 282080-1 Black Color
2 Way Male Female Tyco AMP Connectors 282104-1 282080-1 Black Color
2 Way Male Female Tyco AMP Connectors 282104-1 282080-1 Black Color
2 Way Male Female Tyco AMP Connectors 282104-1 282080-1 Black Color
2 Way Male Female Tyco AMP Connectors 282104-1 282080-1 Black Color
2 Way Male Female Tyco AMP Connectors 282104-1 282080-1 Black Color
2 Way Male Female Tyco AMP Connectors 282104-1 282080-1 Black Color
2 Way Male Female Tyco AMP Connectors 282104-1 282080-1 Black Color
2 Way Male Female Tyco AMP Connectors 282104-1 282080-1 Black Color
2 Way Male Female Tyco AMP Connectors 282104-1 282080-1 Black Color
Specifications
Brand Name :
YBADDVANCE
Model Number :
282104-1 282080-1
Certification :
ISO9001
Place of Origin :
China(mainland)
MOQ :
100 units
Price :
Negotiation
Payment Terms :
T/T, Western Union,PayPal , credit card
Supply Ability :
50,000 units/moth
Delivery Time :
About 5-8 work days
Packaging Details :
Inside packing :100 units / lot put into bags.Outside packing :carton 5 layer
P/N :
282104-1 282080-1
Way :
2 way
Color :
Black
Gender :
Female
WARRANTY :
1 year
Type :
Sealed Connector
Martial :
PBT/PA66
HS code :
8536909000
Feature :
Waterproof
PLACE OF ORIGIN :
Shaanxi,China
Description

282104-1 282080-1 2 Way Male Female AMP Superseal 1.5 Series Connector

Description

2 Way Male Female AMP Superseal 1.5 Series Connector

Male :

Length : 41.8 mm
Width : 19.5mm
Height: 14.2mm

Female :
Width : 9.3 mm
Length : 32.2mm
Height: 15.3 mm

Connector series: Superseal 1.5

The Series Plug Connector is particularly well suited to applications in areas where the connector not only needs to be watertight

but also resistant to aggressive ambient factors such as ozone, salts, petrol, diesel, brake fluid and engine oils.

Specification

Item name

282104-1 282080-1 2 Way Male Female AMP Superseal 1.5 Series Connector
P/N 282104-1 282080-1

Wire Size

 18-22AWG

Operating Temperature range

 -40℃~125℃

Insulation resistance

 100M Min.

MOQ

 100 units/lot
Key words

2 pin Sealed Connector
Design Tooling

Sending us samples or drawing to design it
Delivery Time

About 5-8 work days
Sealed/Unsealed

sealed

Leak current

 Initial50kPa Min.after durability tests30kPa Min.
The number of hole 2 way
Color Black
Warranty 1 year
Application Automoive Motorcycles

Product Picture Details

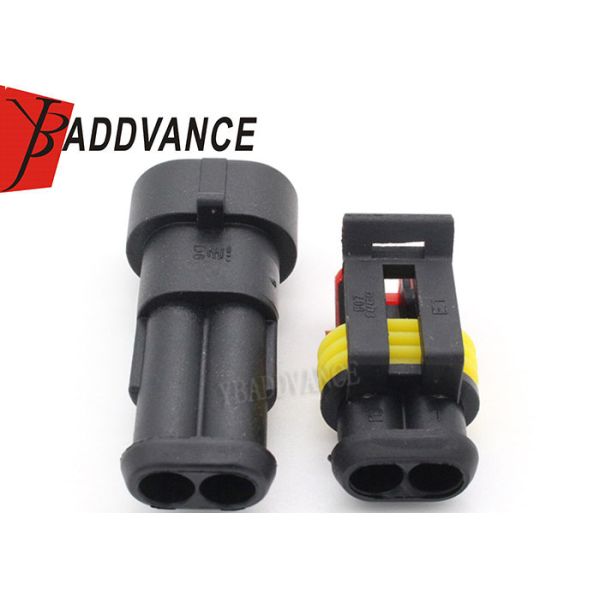

2 Way Male Female Tyco AMP Connectors 282104-1 282080-1 Black Color

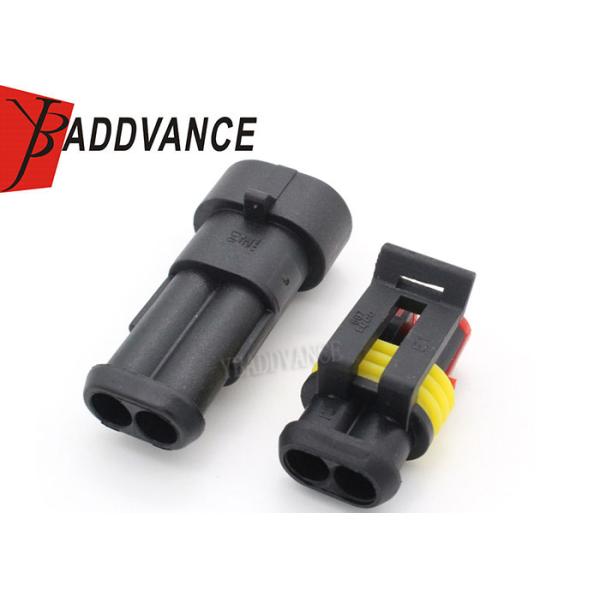

2 Way Male Female Tyco AMP Connectors 282104-1 282080-1 Black Color

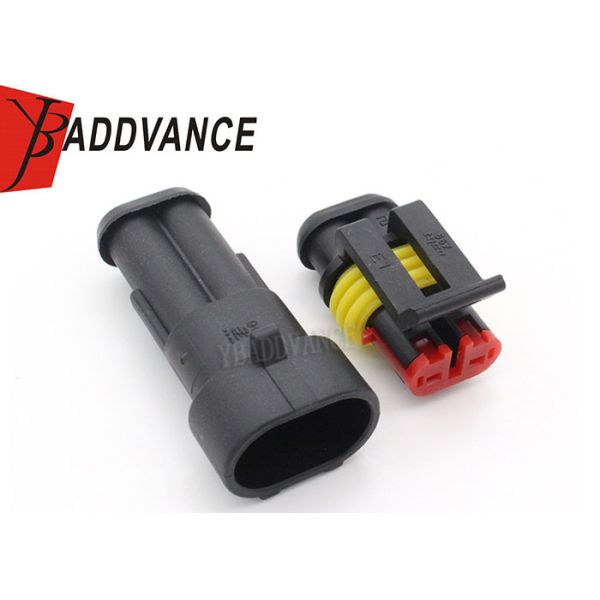

2 Way Male Female Tyco AMP Connectors 282104-1 282080-1 Black Color
