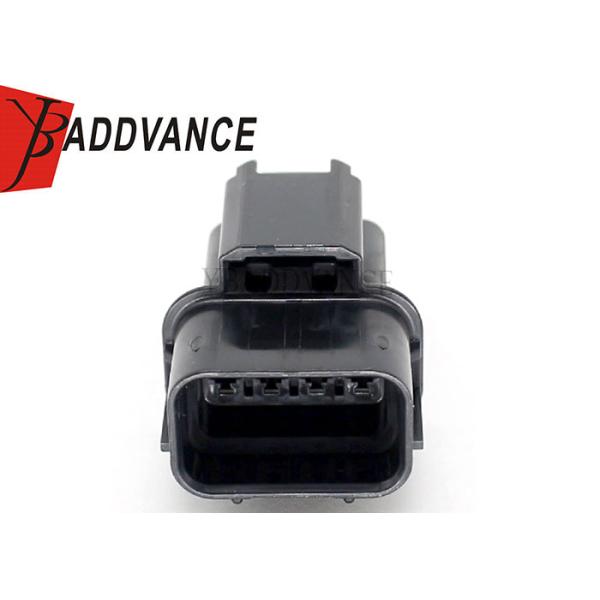

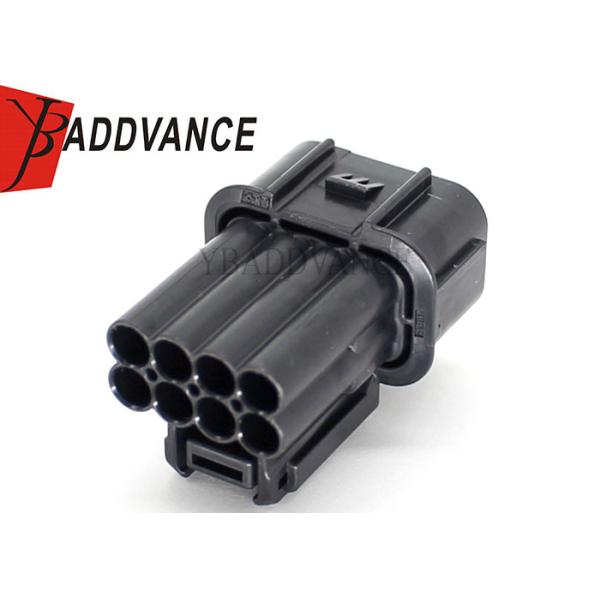

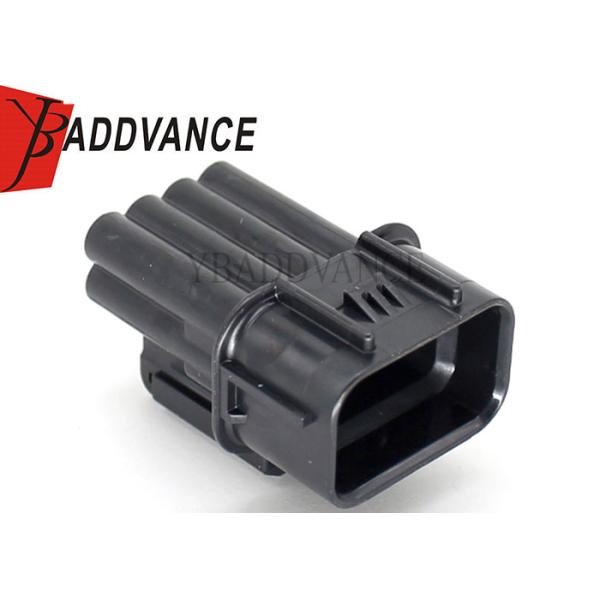

6181-6850 8 Pin Male Sumitomo Automotive Connectors HX Sealed 060 Series
6181-6850 8 Pin Male Sumitomo Automotive Connectors HX Sealed 060 Series
6181-6850 8 Pin Male Sumitomo Automotive Connectors HX Sealed 060 Series
6181-6850 8 Pin Male Sumitomo Automotive Connectors HX Sealed 060 Series
6181-6850 8 Pin Male Sumitomo Automotive Connectors HX Sealed 060 Series
6181-6850 8 Pin Male Sumitomo Automotive Connectors HX Sealed 060 Series
6181-6850 8 Pin Male Sumitomo Automotive Connectors HX Sealed 060 Series
6181-6850 8 Pin Male Sumitomo Automotive Connectors HX Sealed 060 Series
6181-6850 8 Pin Male Sumitomo Automotive Connectors HX Sealed 060 Series
6181-6850 8 Pin Male Sumitomo Automotive Connectors HX Sealed 060 Series
Specifications
Brand Name :
YBADDVANCE
Model Number :
6181-6850
Certification :
ISO9001
Place of Origin :
China(mainland)
MOQ :
100 units
Price :
Negotiation
Payment Terms :
T/T, Western Union,PayPal , credit card
Supply Ability :
50,000 units/moth
Delivery Time :
About 5-8 work days
Packaging Details :
Inside packing :100 units / lot put into bags.Outside packing :carton 5 layer
P/N :
6181-6850
Way :
8 way
WARRANTY :
1 year
Gender :
Female
Color :
Black
HS code :
8536909000
Feature :
Waterproof
Type :
Sealed Connector
Martial :
PBT/PA66
PLACE OF ORIGIN :
Shaanxi,China
Description

6181-6850 8 Pin Male Sumitomo HX Sealed 060 Series Connector

Description

8 Pin Male Sumitomo HX Sealed 060 Series Connector

Pitch : 1.5mm

Width: 26.2 mm

Height : 22.75mm

Length : 35.5mm

Mating connector: 6189-7423

Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C

Specification

Item name

6181-6850 8 Pin Male Sumitomo HX Sealed 060 Series Connector
P/N 6181-6850

Wire Size

 18-22AWG

Operating Temperature range

 -40℃~125℃

Insulation resistance

 100M Min.

MOQ

 100 units/lot
Key words

8 pin Sealed Connector
Design Tooling

Sending us samples or drawing to design it
Delivery Time

About 5-8 work days
Sealed/Unsealed

sealed

Leak current

 Initial50kPa Min.after durability tests30kPa Min.
The number of hole 8 way
Color Black
Warranty 1 year
Application Automoive Motorcycles

Product Picture Details

6181-6850 8 Pin Male Sumitomo Automotive Connectors HX Sealed 060 Series

6181-6850 8 Pin Male Sumitomo Automotive Connectors HX Sealed 060 Series

6181-6850 8 Pin Male Sumitomo Automotive Connectors HX Sealed 060 Series
