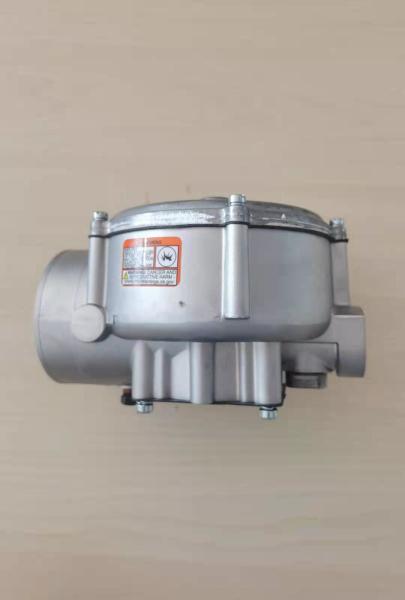

IMPCO 200m-2-2 Propane Lpg Carburetor Single Diaphragm Air Valve
IMPCO 200m-2-2 Propane Lpg Carburetor Single Diaphragm Air Valve
Specifications
Brand Name :
IMPCO
Model Number :
200M-2-2
Certification :
UL
Place of Origin :
USA
MOQ :
24
Price :
Depending on quantity
Payment Terms :
T/T
Supply Ability :
1200pcs per 8weeks
Delivery Time :
8 weeks
Packaging Details :
carton
Product Name :
Mixer
Fuel Type :
LPG Vapor or Natural Gas
Mounting Position :
Vertical
Diaphragm Material :
Hydrin (Standard), Silicone (Optional)
HP/kW Rating :
128.0kW / 160.3kW
Flow Rate :
276 CFM / 345 CFM
MPN :
200M22
Model :
Mixer
Description
IMPCO STYLE 200M-2-2 PROPANE MIXER CARBURETOR SILICONE AFTERMARKET 200 CA200M-2
200M-2-2 Miexr Features:
Genuine Impco Feed Back 200M-2-2 mixer with Silicon Diaphragm

The Model 200 is a single diaphragm air-valve carburetor/mixer. It offers a 90° air inlet to provide low
overhead clearance, and is available with several air horn and throttle valve options. This unit is available for
The IMPCO Model 200M-2-2 is a single diaphragm air-valve mixer. It offers a 90° air inlet to provide low overhead clearance, and is available with several air horn and throttle valve options. This unit is available for LPG Vapor or Natural Gas for applications with airflow requirements up to 345 CFM.
200M-2-2 Miexr specifications:
SPECIFICATIONS
Fuel Type LPG Vapor or Natural Gas
Inlet Pressure -1.5” w.c.
Operating Temperature Range -40ºF to +250ºF
Mounting Position Vertical
Diaphragm Material Hydrin (Standard), Silicone (Optional)
HP/kW Rating 172 hp (128.0 kW) @ 276 CFM (130 L/s) and 1.5” Hg
manifold depression
215 hp (160.3 kW) @ 345 CFM (162.8 L/s) and 2.0” Hg manifold depression
IMPCO 200m-2-2 Propane Lpg Carburetor Single Diaphragm Air Valve

IMPCO 200m-2-2 Propane Lpg Carburetor Single Diaphragm Air Valve
IMPCO 200m-2-2 Propane Lpg Carburetor Single Diaphragm Air Valve

About US:

Guangqing (Anhui) Gas technologies Co., Ltd. started operating in 2008, as authorized distributor of IMPCO for over 12 years, have been providing to our customers fuel combustion system and full range of off-road &on-road parts on forklift trucks, light/ heavy- duty trucks, buses, generators. With leading quality and service, GQ have built tight bond with our customers based on a long-term cooperation, covering 90% OEM in China forklift market.
