200M-2-2 Single Diaphragm LPG Gas Mixer 1.5 Hg Manifold Depression
200M-2-2 Single Diaphragm LPG Gas Mixer 1.5 Hg Manifold Depression
Specifications
Brand Name :
IMPCO
Model Number :
200M-2-2
Certification :
UL
Place of Origin :
USA
MOQ :
24
Price :
Depending on quantity
Payment Terms :
T/T
Supply Ability :
1200pcs per 8weeks
Delivery Time :
8 weeks
Packaging Details :
carton
Product Name :
Mixer
Fuel Type :
LPG Vapor or Natural Gas
Mounting Position :
Vertical
Diaphragm Material :
Hydrin (Standard), Silicone (Optional)
HP/kW Rating :
128.0kW / 160.3kW
Flow Rate :
276 CFM / 345 CFM
Description

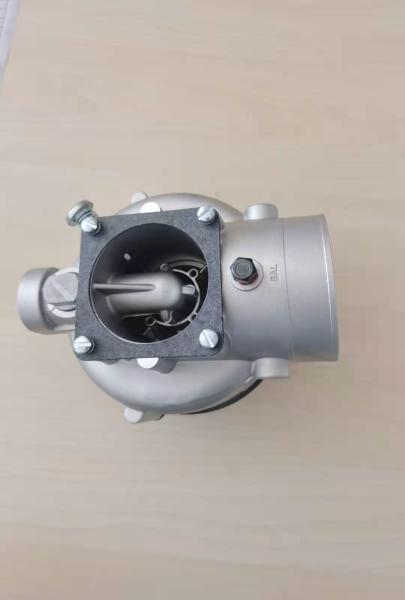

IMPCO 200M 2 2 Single Diaphragm Air-Valve Mixer
200M-2-2 Miexr Brief Introduction:
Impco part number 200M-2-2 is a single diaphragm air-valve mixer. It offers a 3-1/16"(77.8mm) 90° air inlet to provide low overhead clearance. This unit is available for LPG Vapor or Natural Gas for applications with air flow requirements up to 345 CFM (162.8 L/s). The 200M-2-2 mixer provides a convenient 1/8" balance port at the air inlet.
200M-2-2 Miexr specifications:
SPECIFICATIONS
Fuel Type LPG Vapor or Natural Gas
Inlet Pressure -1.5” w.c.
Operating Temperature Range -40ºF to +250ºF
Mounting Position Vertical
Diaphragm Material Hydrin (Standard), Silicone (Optional)
HP/kW Rating 172 hp (128.0 kW) @ 276 CFM (130 L/s) and 1.5” Hg
manifold depression
215 hp (160.3 kW) @ 345 CFM (162.8 L/s) and 2.0” Hg manifold depression
200M-2-2 Single Diaphragm LPG Gas Mixer 1.5

200M-2-2 Single Diaphragm LPG Gas Mixer 1.5
200M-2-2 Single Diaphragm LPG Gas Mixer 1.5
