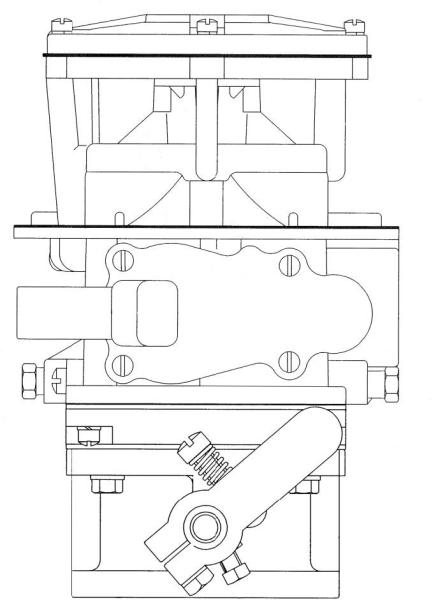

Hydrin CT425 2 IMPCO Diaphragm Type Carburetor
Hydrin CT425 2 IMPCO Diaphragm Type Carburetor
Specifications
Brand Name :
IMPCO
Model Number :
Model 400VF
Certification :
UL
Place of Origin :
USA
MOQ :
24
Price :
Depending on quantity
Payment Terms :
T/T
Supply Ability :
1200pcs per 8weeks
Delivery Time :
8 weeks
Packaging Details :
carton
Part Description :
Carburetor
Part Number :
CT425-2
Brand :
IMPCO
Fuel Type :
LPG Vapor,Natural Gas
Diaphragm Material :
Hydrin(Standard),Silicone(optional)
Mounting Position :
Vertical
HP/KW Rating :
287 hp (214.0 kW) @ 460 CFM (217.1 L/s); 333 hp (248.0 kW) @ 533 CFM (252.0 L/s)
Inlet Pressure :
+8.0” w.c. (1.99 kPa)
Description
The Model CT425-2 Is A Single-Diaphragm Air Valve Carburetor. It Offers A Down Draft Air Inlet That Can Be Used For Remo
The Model CT425-2 is a single-diaphragm air valve carburetor. It offers a down draft air inlet
that can be used for remote air filtration or open-element type air filters.It is for feedback applications with the‘FB’designation. The FB mixer is indicated by the “-CT” in the part number.
SPECIFICATIONS
Fuel Type LPG Vapor, Natural Gas
Inlet Pressure +8.0” w.c. (1.99 kPa) B5
Operating Temperature Range -40ºF to +250ºF (-40ºC to 121ºC)
Mounting Position Vertical
Diaphragm Material Hydrin (Standard), Silicone (Optional)
HP/(kW) Rating 287 hp (214.0 kW) @ 460 CFM (217.1 L/s) and 1.5” Hg manifold depression
333 hp (248.0 kW) @ 533 CFM (252.0 L/s) and 2.0” Hg manifold depression

Hydrin CT425 2 IMPCO Diaphragm Type CarburetorHydrin CT425 2 IMPCO Diaphragm Type CarburetorHydrin CT425 2 IMPCO Diaphragm Type Carburetor
