IMPCO RK-CA55 , Model CA55 Carburetor Repair Kit , Standard Air Valve
CA55 Standard Carburetor/MixerREPAIR KIT INSTRUCTIONS

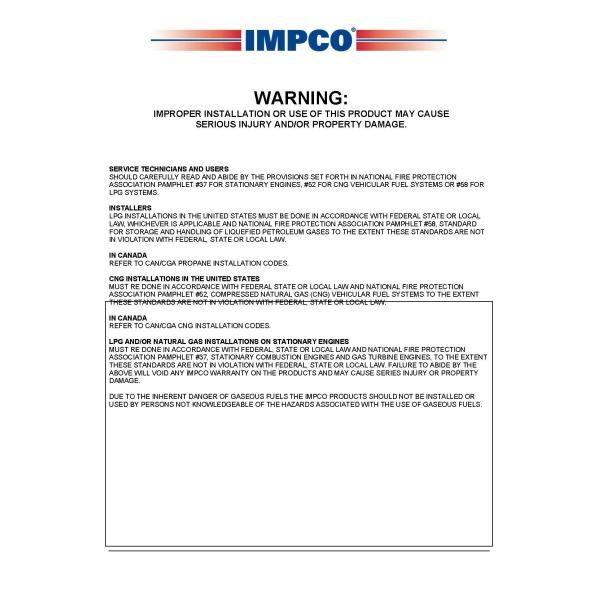

Important: Any maintenance, service or repair should be performed by trained and experienced service technicians. Proper tools and equipment should be used to prevent injury to the servicing technician, property or system components. Service repairs should always be performed in a safe environment and the technician should always wear protective clothing to prevent injury.
The IMPCO PPI-55 repair kit instructions will provide the technician information to successfully repair the CA55 Carburetor. Always inspect the major casting pieces for damage, corrosion or cracks before attempting a service repair. Be sure the repair kit part number you are using is correct for the carburetor/mixer being serviced.
REBUILD INSTRUCTIONS Disassembly
Air Valve RKCA55 Standard Carburetor IMPCO Repair Kits

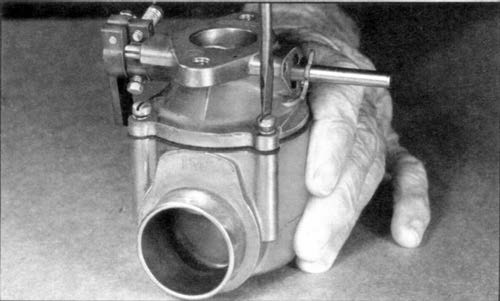

1. Remove the carburetor from the engine, then remove 4 screws (Sl-3) holding throttle body to mixer bowl.
Air Valve RKCA55 Standard Carburetor IMPCO Repair Kits

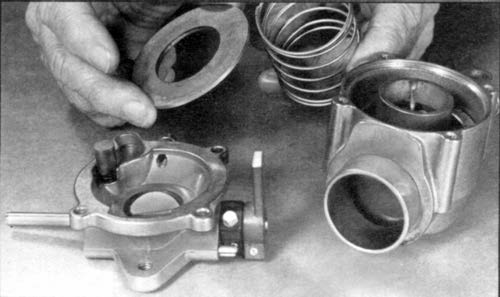

2. Remove the throttle body. Note that the gasket retains idle cutoff piston in place (shown under finger tip).
Note: Not all 55 Series Carburetors are equipped with the cutoff piston.
Air Valve RKCA55 Standard Carburetor IMPCO Repair Kits
3. Remove the gasket which will release the Idle cutoff piston and spring.
Air Valve RKCA55 Standard Carburetor IMPCO Repair Kits
4. Remove the check valve plate and air valve spring. Lift the air/gas valve from mixer bowl.
Air Valve RKCA55 Standard Carburetor IMPCO Repair Kits

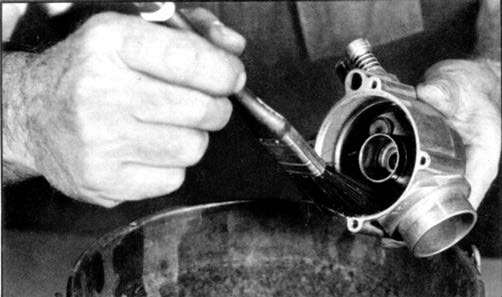

5. Clean the mixer bowl assembly in safety solvent. Do not use carburetor cleaner as it will attack synthetic rubber seals.

Reassembly

Air Valve RKCA55 Standard Carburetor IMPCO Repair Kits

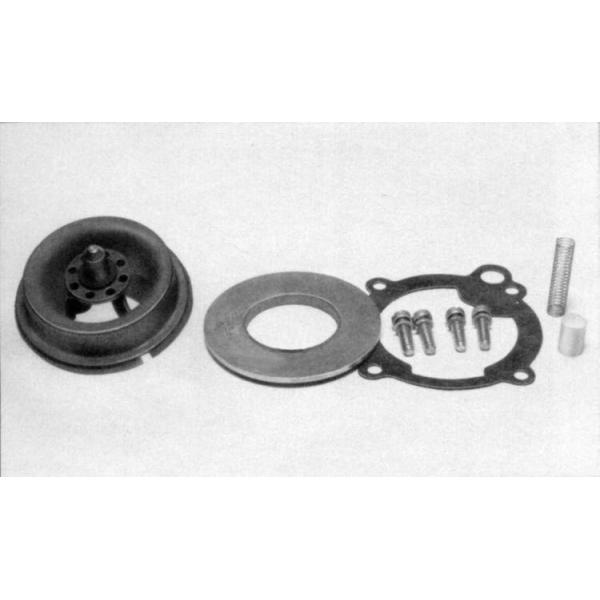

1. The RK-CA55 kit includes:
• AV1-14925 Air/Gas Valve Assy (RK-55-2 kit supplies the AV1-14926 “lean” valve.)
• AP2-14700 Plate, Check Valve Assy
• P4-1 Piston, Idle Cutoff
• S2-44 Spring, Idle Cutoff
• S1-3 Screws (4), 10-24 x 5/8”
• G1-92 Gasket
• PPI-55 Repair Kit Instructions
Air Valve RKCA55 Standard Carburetor IMPCO Repair Kits
2. Place the air/gas valve assembly in the mixer bowl.
Air Valve RKCA55 Standard Carburetor IMPCO Repair Kits

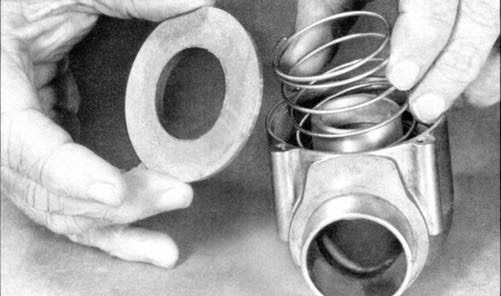

3. Place the air/valve spring and check valve plate in the mixer bowl.
Air Valve RKCA55 Standard Carburetor IMPCO Repair Kits

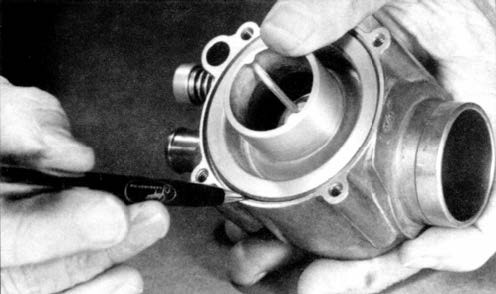

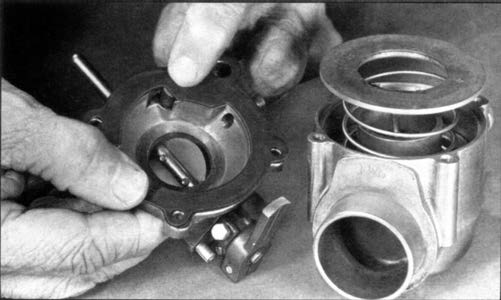

4. This illustration shows the mixer bowl assembled with the check valve assembly centered towards air horn. The idle cutoff piston and spring are shown in place ready for assembly to the mixer bowl.
Air Valve RKCA55 Standard Carburetor IMPCO Repair Kits

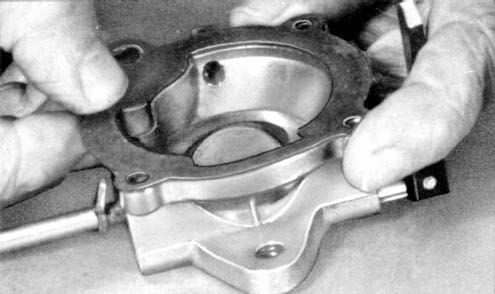

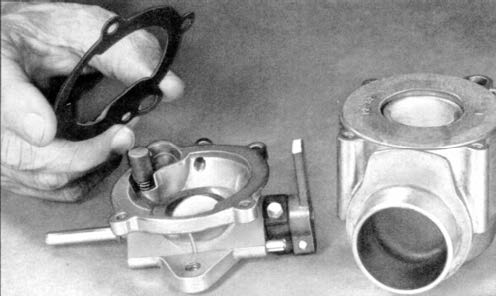

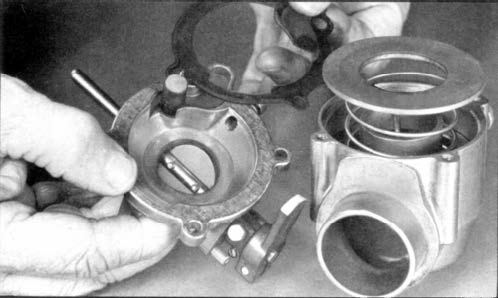

5.Place the gasket on the throttle body retainingthe idle cutoff piston in its recess (under thumb,as shown in the illustration).
Air Valve RKCA55 Standard Carburetor IMPCO Repair Kits

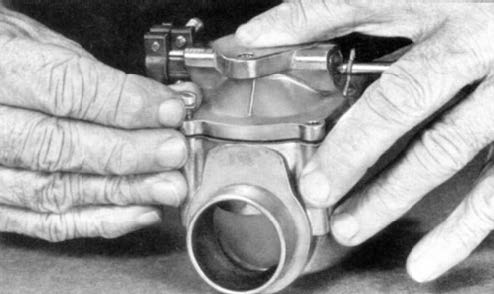

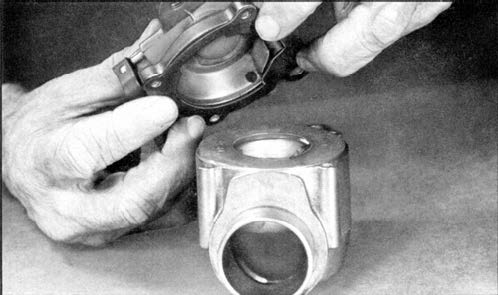

6.While holding the gasket and idle cutoff pistonin place, turn the throttle body over. Note cutoutof the gasket designed to clear the check valveassembly on plate.
Air Valve RKCA55 Standard Carburetor IMPCO Repair Kits

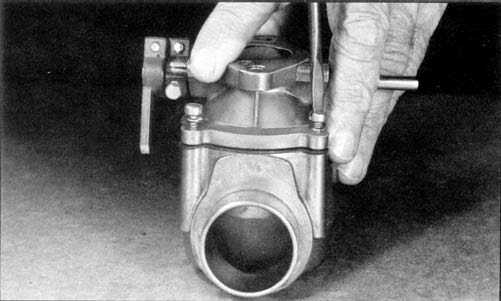

7.Lower the throttle body gently onto the mixerbowl making sure idle cutoff piston does notescape from its recess. Once the throttle body isflush on the mixer bowl, align the holes and startthe 4 screws.
Air Valve RKCA55 Standard Carburetor IMPCO Repair Kits
8.Tighten 4 screws to 30 in lbs (3.4 N•m)
Air Valve RKCA55 Standard Carburetor IMPCO Repair Kits
