Natural Gas 80Hp Positive Flow 59.7kW PJ IMPCO Regulator
Natural Gas 80Hp Positive Flow 59.7kW PJ IMPCO Regulator
Natural Gas 80Hp Positive Flow 59.7kW PJ IMPCO Regulator
Natural Gas 80Hp Positive Flow 59.7kW PJ IMPCO Regulator
Specifications
Brand Name :
IMPCO
Model Number :
MODEL PJ
Certification :
Inquire for specific ECE approval
Place of Origin :
USA
MOQ :
24
Price :
Depending on quantity
Payment Terms :
T/T
Supply Ability :
1200pcs per 8weeks
Delivery Time :
8 weeks
Packaging Details :
carton
Part Description :
Regulator
Part Number :
Model PJ
Brand :
IMPCO
Fuel Type :
Natural Gas
Mounting Position :
Vertical
HP/KW Rating :
59.7kW
Applications. :
Industrial, Mobile, and Automotive
Description

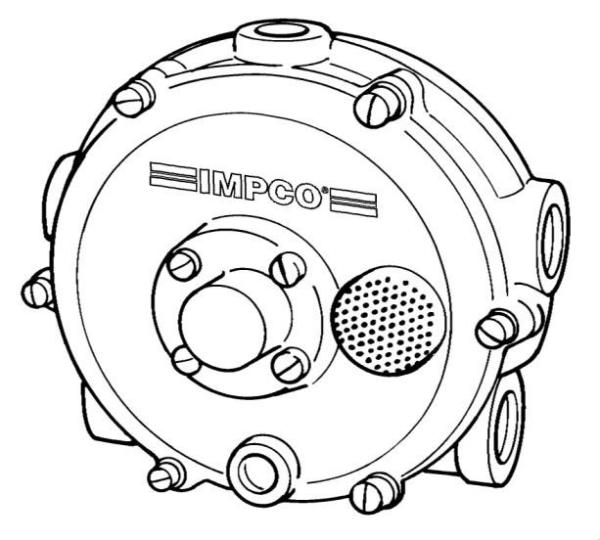

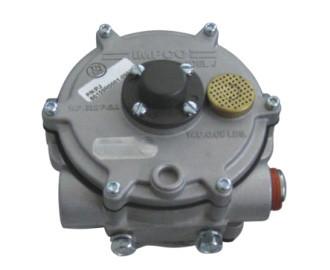

IMPCO Regulator Model PJ , Positive Pressure, Two Stage Regulator , Natural Gas , Positive Flow Up To 80 Hp

Model PJ is a positive pressure, two stage regulator. It is designed for positive pressure Natural Gas fuel systems where liquid vaporization and engine coolant heating are not required, however, additional fuel temperature and mixture stability may be gained through the use of engine coolant.
This regulator is able to provide positive flow in applications up to 80 hp (59.7 kW). Fixed regulators can be converted in the field to adjustable with the AC1-74 kit. Fixed pressure regulators are preferred in applications that are not subject to fuel quality variations or to deter unauthorized tampering. There is a primary pressure test port and “left” or “right” fuel outlets.

SPECIFICATIONS
Fuel Type Natural Gas
Inlet Pressure
Maximum 312 psi (21.51 Bar)
Minimum 30 psi (207 kPa)
Outlet Pressure (Nominal) +5.0” w.c. (1.25 kPa) B9
HP/kW 80 hp (59.7 kW)
Operating Temperature Range -40°F to +250°F (-40°C to +121°C)
Fuel Filtration Required 40 micron
Heating Chamber Source Optional
Mounting Position Vertical recommended
Applications Mobile, industrial and automotive
Certification Inquire for specific ECE approval
