LPG Vapor 90 Degree Air Inlet 345CFM Impco 200 Mixer
LPG Vapor 90 Degree Air Inlet 345CFM Impco 200 Mixer
LPG Vapor 90 Degree Air Inlet 345CFM Impco 200 Mixer
LPG Vapor 90 Degree Air Inlet 345CFM Impco 200 Mixer
LPG Vapor 90 Degree Air Inlet 345CFM Impco 200 Mixer
LPG Vapor 90 Degree Air Inlet 345CFM Impco 200 Mixer
LPG Vapor 90 Degree Air Inlet 345CFM Impco 200 Mixer
LPG Vapor 90 Degree Air Inlet 345CFM Impco 200 Mixer
Specifications
Brand Name :
IMPCO
Model Number :
Model 200
Certification :
UL
Place of Origin :
USA
MOQ :
24
Payment Terms :
T/T
Supply Ability :
1200pcs per 8weeks
Delivery Time :
8 weeks
Packaging Details :
carton
Price :
Depending on quantity
Material :
Aluminum
Fuel Type :
LPG Vapor or Nature Gas, Bi-Fueled with Gasoline
Operating Temperature Range :
.-40°F to +250°F (-40°C to +121°C)
HP/KW Rating :
172hp(128.0kW) ; 215hp (160.3kW)
Flow Rate :
276CFM(130L/s); 345CFM (162.8L/s)
Inlet Pressure :
-1.5” w.c. (-0.37 kPa)
Mounting Position :
Vertical
Diaphragm Material :
Hydrin(standard); Silicone (Optional)
Description

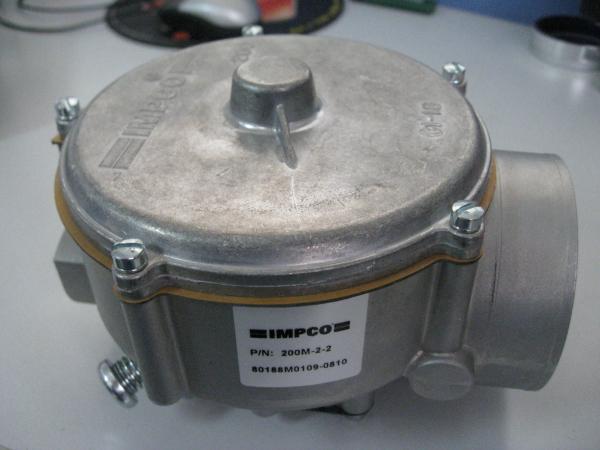

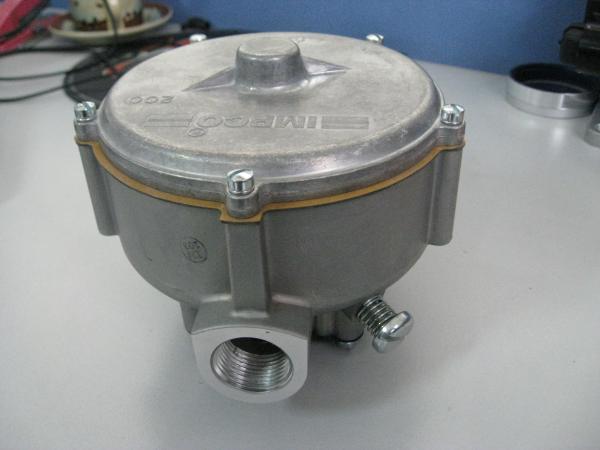

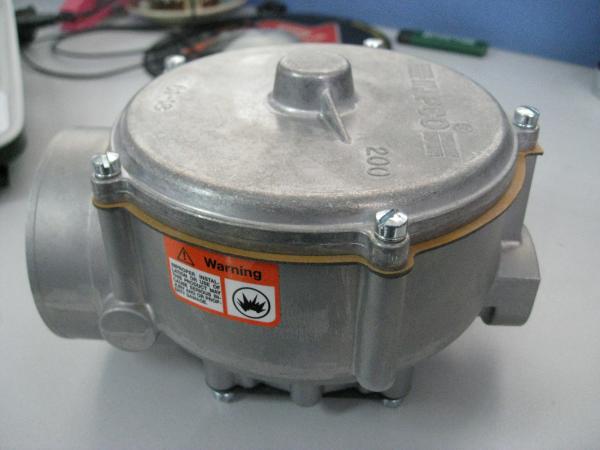

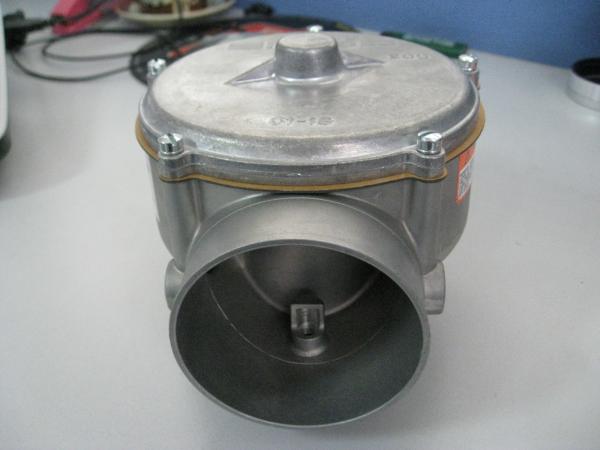

IMPCO Mixer Model 200 , Single Diaphragm Air-Valve , 90° Air Inlet , Airflow 345 CFM
Model 200
DESCRIPTION
The Model 200 is a single diaphragm air-valve carburetor/mixer. It offers a 90° air inlet to provide low overhead clearance, and is available with several air horn and throttle valve options. This unit is available for LPG Vapor or Natural Gas for applications with airflow requirements up to 345 CFM (162.8 L/s). All DG model mixers reduce airflow by 30%.
The Model 200 is also available for feedback applications with the ’FB’ designation. The 200 mixer provides a convenient 1/8” balance port at the air inlet. Additional low speed idle mixture control can be obtained to lean air/fuel mixtures through the use of optional shims.
SPECIFICATIONS
Fuel Type LPG Vapor or Natural Gas
Inlet Pressure -1.5” w.c. (-0.37 kPa)
Operating Temperature Range -40ºF to +250ºF (-40ºC to 121ºC)
Mounting Position Vertical
Diaphragm Material Hydrin (Standard), Silicone (Optional)
HP/kW Rating 172 hp (128.0 kW) @ 276 CFM (130 L/s) and 1.5” Hg
manifold depression
215 hp (160.3 kW) @ 345 CFM (162.8 L/s) and 2.0” Hg manifold depression
LPG Vapor 90 Degree Air Inlet 345CFM Impco 200 Mixer
LPG Vapor 90 Degree Air Inlet 345CFM Impco 200 MixerLPG Vapor 90 Degree Air Inlet 345CFM Impco 200 Mixer
LPG Vapor 90 Degree Air Inlet 345CFM Impco 200 Mixer
