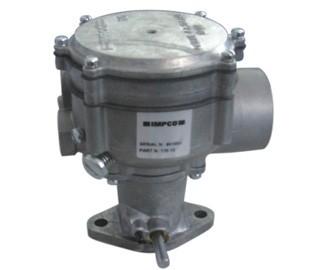

Model 110 170CFM 106hp IMPCO Mid Size Engine Mixers
Model 110 170CFM 106hp IMPCO Mid Size Engine Mixers
Specifications
Brand Name :
IMPCO
Model Number :
Model 110
Certification :
UL
Place of Origin :
USA
MOQ :
24
Price :
Depending on quantity
Payment Terms :
T/T
Supply Ability :
1200pcs per 8weeks
Delivery Time :
8 weeks
Packaging Details :
carton
Fuel Type :
LPG Vapor or Natural Gas
Operating Temperature Range :
.-40°F to +250°F (-40°C to +121°C)
HP/KW Rating :
106hp(79.0kW)
Flow Rate :
170CFM(80L/s)
Inlet Pressure :
-1.5” w.c. (-0.37 kPa)
Mounting Position :
Vertical
Diaphragm Material :
Hydrin(standard); Silicone (Optional)
Description
IMPCO Mid Size Engine Model 110 Carburetor , For One/Two Cylinder Engines ,Used With LPG Vapor / Natural Gas
DESCRIPTION
The Model 110 carburetor/mixer is designed primarily for one and two cylinder engines where severe intake manifold pressure pulsations are present. However, its use is not limited to these applications. Improved mixture control and air-gas valve durability can also benefit other applications in intake systems where pressure pulsations could adversely affect a standard 100/125 model assembly.
The Model 110 can be used with LPG Vapor or Natural Gas in applications requiring up to 170 CFM (80.2 L/s). All mixers and complete carburetors use a standard air-gas metering valve that provides adequate fuel mixture range with the appropriate positive (Natural Gas) or negative (LPG Vapor) vaporizer/ regulator. It is possible to use other air-gas metering valves and body assemblies from the 100/125 model and may have to be ordered as a separate component part.
SPECIFICATIONS
Fuel Type LPG Vapor or Natural Gas
Inlet Pressure -1.5” w.c. (-0.37 kPa)
Operating Temperature Range -40ºF to +250ºF (-40ºC to 121ºC)
Mounting Position Vertical
Diaphragm Material Hydrin (Standard), Silicone (Optional)
HP/kW Rating 106 HP (79.0 kW) @ 170 CFM (80.2 L/s) and 2.0” Hg manifold depression

Model 110 170CFM 106hp IMPCO Mid Size Engine Mixers

Model 110 170CFM 106hp IMPCO Mid Size Engine MixersModel 110 170CFM 106hp IMPCO Mid Size Engine Mixers

Model 110 170CFM 106hp IMPCO Mid Size Engine Mixers
