FL 50046 FL 52826 IMPCO Lpg Lock Off Valve Fuel System Parts
FL 50046 FL 52826 IMPCO Lpg Lock Off Valve Fuel System Parts
Specifications
Brand Name :
IMPCO
Model Number :
FL-50046 / FL-52826
Certification :
UL
Place of Origin :
USA
MOQ :
20
Price :
Depending on quantity
Payment Terms :
T/T
Supply Ability :
1200pcs per 8weeks
Delivery Time :
8 weeks
Packaging Details :
carton
Product Name :
Lockoff Valve
Part Number :
FL-50046 / FL-52826
Brand :
IMPCO
Fuel Type :
LPG Vapor or Low Pressure Natural Gas
Mounting Position :
Vertical (coil up) ±10°
Inlet Pressure :
13.85” w.c. (3.45 kPa)
Flow Rate :
350 CFH (9,911 L/H) @ 3.45 kPa (Air)
Electrical Requirement :
Nominal - 15.5 Watts @ 12 VDC (1.3 Amps) ; Continuous Use (>20 mins) - 12 Watts @ 12 VDC (1.0 Amp)
Description
IMPCO FL-50046 / FL-52826 , low pressure normally closed 12 VDC safety shut-off valve , LPG Vapor or Natural Gas Vapor
DESCRIPTION

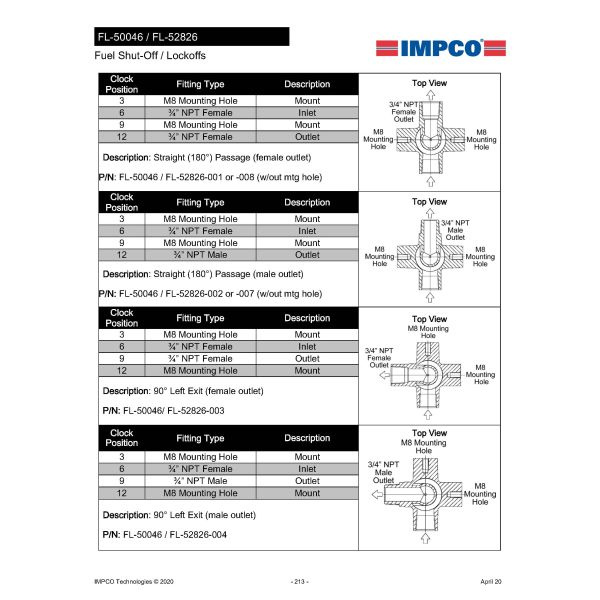

The FL-50046 / FL-52826 model is a low pressure normally closed 12 VDC safety shut-off valve suitable for use with LPG Vapor or Natural Gas Vapor. The valve is available in six different inlet/outlet configurations and provides two points for hard mounting. The coil assembly is hermetically sealed for excellent moisture
FL 50046 FL 52826 IMPCO Lpg Lock Off Valve Fuel System Parts
SPECIFICATIONS
Fuel Type LPG Liquid/Vapor or Low Pressure Natural Gas
Inlet Pressure (Maximum) 13.85” w.c. (3.45 kPa)
Flow Rate 350 CFH (9,911 L/H) @ 3.45 kPa (Air)
Operating Temperature Range 40°F to +250°F (-40°C to +121°C)
Electrical Requirement
Nominal 15.5 Watts @ 12 VDC (1.3 Amps)
Continuous Use (>20 mins) 12 Watts @ 12 VDC (1.0 Amp)
Operating Opening -40°F to +221°F (-40°C to 105°C)
Mounting Position Vertical (Coil Up) ±10°
Certification UL Recognized, Inquire for specific ECE approval

FL 50046 FL 52826 IMPCO Lpg Lock Off Valve Fuel System Parts

FL 50046 FL 52826 IMPCO Lpg Lock Off Valve Fuel System Parts

FL 50046 FL 52826 IMPCO Lpg Lock Off Valve Fuel System Parts
