Max 250psi Two Stage T60 IMPCO Regulator For LPG
Max 250psi Two Stage T60 IMPCO Regulator For LPG
Max 250psi Two Stage T60 IMPCO Regulator For LPG
Max 250psi Two Stage T60 IMPCO Regulator For LPG
Specifications
Brand Name :
IMPCO
Model Number :
T60 Regulator
Certification :
UL
Place of Origin :
USA
MOQ :
24
Payment Terms :
T/T
Supply Ability :
1200pcs per 8weeks
Delivery Time :
8 weeks
Packaging Details :
carton
Price :
Depending on quantity
Material :
Aluminum
Fuel Type :
LPG Vapor or Natural Gas
Operating Temperature Range :
-40°F to +250°F (-40°C to +121°C)
HP/KW Rating :
60hp(44.7 kW) LPG Liquid;40hp(29.8 kW)LPG Vapor;30 hp(22.4kW)Natural Gas
Applications. :
Stationary, mobile, industrial and automotive
Inlet Pressure (Maximum) :
Maximum 250 psi (17.23 Bar) Minimum 30 psi (207 kPa)
Mounting Position :
Vertical (outlet down) recommended
Diaphragm Material :
Hydrin
Description

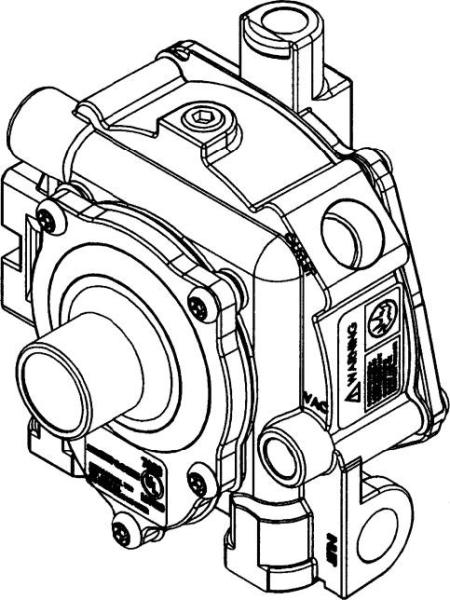

IMPCO T60 Is A Two Stage Regulator/Vaporizer For LPG Applications Up To 60 Hp (44.7 KW)
DESCRIPTION
The T60 is a two stage regulator/vaporizer for LPG applications up to 60 hp (44.7 kW). Various models feature built-in vacuum lock, idle adjustment, primers, various heating methods, and several mounting options. Newer models (post 2010 production) include an improved primary and secondary lever and seat design, and a standard freeze plug and idle screw. The idle screw has improved sensitivity and stability and is relocated to the cover. An idle screw cap and tamper resistant screws satisfy regulatory tamper resistance requirements. Optional dual mounting tabs are available and all mounting features and ports will remain the same.
SPECIFICATIONS
Fuel Type LPG Liquid/Vapor or Natural Gas
Inlet Pressure
Maximum 250 psi (17.23 Bar)
Minimum 30 psi (207 kPa)
Outlet Pressure (Nominal) +5.0” w.c. (1.25 kPa) B9
HP/kW 60 hp (44.7 kW) LPG Liquid
　 40 hp (29.8 kW) LPG Vapor
　 30 hp (22.4 kW) Natural Gas
Operating Temperature Range -40°F to +250°F (-40°C to +121°C)
Fuel Filtration Required 40 micron
Heating Chamber Source Required for LPG Liquid
Mounting Position Vertical (outlet down) recommended. Horizontal position can be used when fuel contamination can be controlled with HD-5 or HD-10 specified LPG fuel.
Diaphragm Hydrin
Applications Stationary, mobile, industrial and automotive
Certification UL (AU1502), Inquire for specific ECE approval
