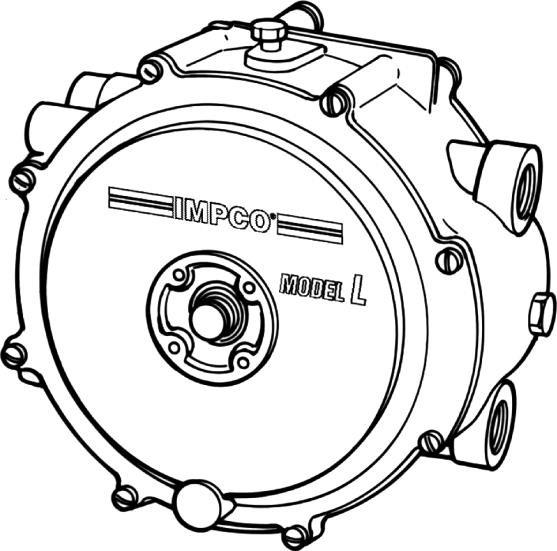

Aluminum 242.4 KW IMPCO Model L Converter Fuel System Parts
Aluminum 242.4 KW IMPCO Model L Converter Fuel System Parts
Aluminum 242.4 KW IMPCO Model L Converter Fuel System Parts
Aluminum 242.4 KW IMPCO Model L Converter Fuel System Parts
Specifications
Brand Name :
IMPCO
Model Number :
MODEL L Regulator
Certification :
UL
Place of Origin :
USA
MOQ :
24
Payment Terms :
T/T
Supply Ability :
1200pcs per 8weeks
Delivery Time :
8 weeks
Packaging Details :
carton
Price :
Depending on quantity
Material :
Aluminum
Fuel Type :
LPG Liquid/Vapor
Operating Temperature Range :
-40°F to +250°F (-40°C to +121°C)
HP/KW Rating :
325 hp (242.4 kW) peak, 200 hp (149.1 kW) continuous
Applications. :
Mobile, stationary, industrial and automotive
Inlet Pressure :
Maximum 312 psi (21.51 Bar); Minimum 30 psi (207 kPa)
Mounting Position :
Vertical, with outlet down
Diaphragm Material :
Silicone and Fluorosilicone
Description
IMPCO Model L , Two Stage Regulator. Up To 242.4 KW Peak Or 149.1 KW Continuous , One Negative Outlet Pressure
Model L
DESCRIPTION
The Model L is a two stage regulator/vaporizer. These units are coolant heated and are able to provide liquid vaporization to supply up to 325 hp (242.4 kW) peak or 200 hp (149.1 kW) continuous in industrial engine applications. The Model L regulator provides a negative outlet pressure of -1.5” w.c. (-0.37 kPa). No optional pressures are available. The Model L offers economical performance with full features; rear fuel inlet, and primary and secondary diagnostic test ports. Optional silicone diaphragm materials are also available.
SPECIFICATIONS
Fuel Type LPG Liquid/Vapor
Inlet Pressure
Maximum 312 psi (21.51 Bar)
Minimum 30 psi (207 kPa)
Outlet Pressure (Nominal) -1.5” w.c. (0.37 kPa)
HP/kW Rating 325 hp (242.4 kW) peak, 200 hp (149.1 kW) continuous
Operating Temperature Range -40°F to +250°F (-40°C to +121°C)
Fuel Filtration Required 40 micron
Heating Chamber Source Required for liquid LPG
Mounting Position Vertical recommended. Horizontal position can be used when fuel contamination can be controlled with HD-5 or HD-10 specified LPG fuel.
Applications Mobile, industrial and automotive
Certification UL (AU1502), Inquire for specific ECE approval
Aluminum 242.4 KW IMPCO Model L Converter Fuel System Parts
Aluminum 242.4 KW IMPCO Model L Converter Fuel System Parts
Aluminum 242.4 KW IMPCO Model L Converter Fuel System Parts
Aluminum 242.4 KW IMPCO Model L Converter Fuel System Parts
