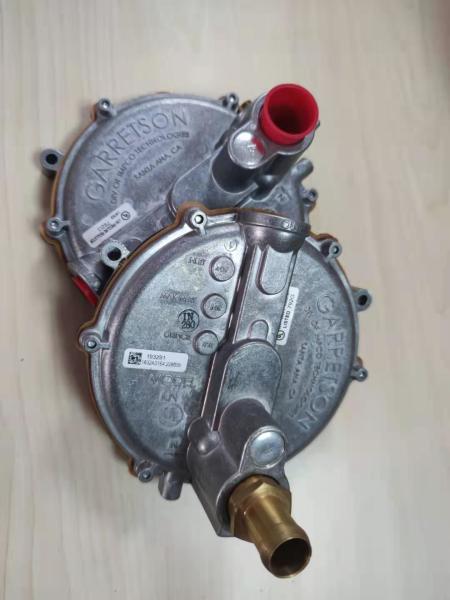

Model 039-291 18.6 KW Natural Gas Impco Propane Regulator
Model 039-291 18.6 KW Natural Gas Impco Propane Regulator
Specifications
Brand Name :
IMPCO
Model Number :
Model 039-291
Certification :
UL (AU1502), Inquire for specific ECE approval
Place of Origin :
USA
MOQ :
24
Price :
Depending on quantity
Payment Terms :
T/T
Supply Ability :
1200pcs per 8weeks
Delivery Time :
8 weeks
Packaging Details :
carton
Part Description :
Regulator
Part Number :
Model 039-291
Brand :
IMPCO
Operating Temperature Range :
-40°C to +121°C
Inlet Pressure :
3.44 kPa
HP/kW Rating :
LPG 29.8kW; Natural Gas 18.6 kW
Applications :
Stationary
Description
Natural Gas 18.6 kW KN 039-291 IMPCO Secondary Gas Regulator

IMPCO Gas Regulator :

A propane vaporizer increases the speed at which propane travels to machines that require it for power. A propane tank may not be large enough or have the technical capability to deliver propane at the appropriate speed or pressure, but a vaporizer corrects the problem. IMPCO manufactures various propane vaporizers. If a propane vaporizer malfunctions, it needs immediate troubleshooting to ensure it functions safely while also providing the other machine the fuel it needs.

We distribute an extensive selection of FORKLIFT LPG REGULATOR parts for all makes and models. We ship directly from various warehouses located all over North America to provide the fastest shipping at the most affordable prices.
KN 039-291 IMPCO Secondary Gas Regulator SPECIFICATIONS
Fuel Type LPG Vapor or Natural Gas Vapor
Inlet Pressure 3.44 kPa
Outlet Pressure (Nominal) -0.12 kPa
Initial Flow Pressure -0.05 to -0.35 w.c.
HP/kW Rating
LPG (Standard) 29.8 kW
LPG (High Flow) 37.3 kW
Natural Gas (Standard) 18.6 kW
Natural Gas (High Flow) 22.4 kW
Operating Temperature Range -40°C to +121°C
Mounting Position Vertical and as close to the carburetor as possible.
Diaphragm Material Silicone
Applications Stationary
Certification UL (AU1502), Inquire for specific ECE approval
How does a low pressure regulator work?
A pressure regulator reduces a supply (or inlet) pressure to a lower outlet pressure and works to maintain this outlet pressure, despite fluctuations in the inlet pressure. The reduction of the inlet pressure to a lower outlet pressure is the fundamental characteristics of pressure regulators.
Model KN 039-291 is a secondary regulator. It is suitable for use with low pressure, Natural Gas and LPG Vapor fuels. This regulator is typically used in service applications up to 30 kW.
We develop and manufactures dedicated fuel systems for industrial engines using clean burning fuels such as LPG, Propane, Natural Gas or Biogas. Our engineering focus is on optimal system integration with best possible vehicle performance and exhaust gas emissions.

KN 039-291 IMPCO Secondary Gas Regulator Features:

  • Low pressure demand regulator for natural gas or propane
  • Initial Flow Pressure -0.05 to -0.35 w.c.
  • Perfect for small engine applications
  • Includes primer

Model 039-291 18.6 KW Natural Gas Impco Propane RegulatorModel 039-291 18.6 KW Natural Gas Impco Propane Regulator
