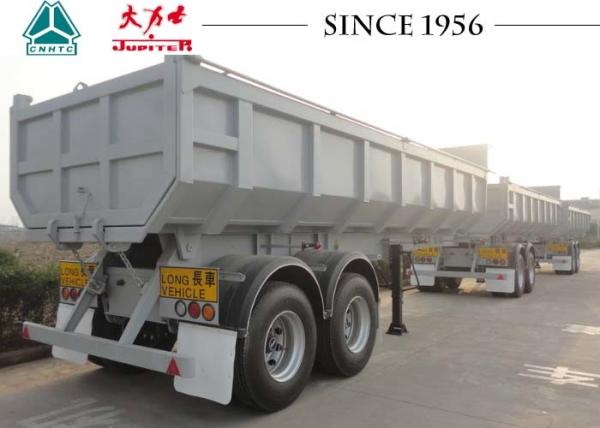

Heavy Duty Dual Axle Tipper Trailer , Tipper Semi Trailer 20-40 M³ Capacity
Heavy Duty Dual Axle Tipper Trailer , Tipper Semi Trailer 20-40 M³ Capacity
Heavy Duty Dual Axle Tipper Trailer , Tipper Semi Trailer 20-40 M³ Capacity
Heavy Duty Dual Axle Tipper Trailer , Tipper Semi Trailer 20-40 M³ Capacity
Heavy Duty Dual Axle Tipper Trailer , Tipper Semi Trailer 20-40 M³ Capacity
Heavy Duty Dual Axle Tipper Trailer , Tipper Semi Trailer 20-40 M³ Capacity
Specifications
Brand Name :
SUNSKY
Certification :
BV/CCC/CE/DOT/SGS
Place of Origin :
China
MOQ :
1 Units
Price :
Negotiable
Supply Ability :
500 Units Per Month
Delivery Time :
25 Working Days
Packaging Details :
No Packing
Type :
U Shpae
Volume :
20 to 40 m³
Axles :
Fuwa or Bpw Brand
Landing gear :
Jost Brand
Tires :
12R22.5 (Double Tires)
Brake system :
Re-6 emergency valve
Description

Cheap Price U Shape 2 Axle Tipping Trailer With 20 To 40 m³ Capacity

Why choose SUNSKY VEHICLE?

The tipper semi-trailers can be precisely designed as your needs – from the volume-optimized light to the heavy duty type for the extreme demands of heavy-duty construction work. You define the specifications, we implement them. With sophisticated and flexible modular system you can combine the body, rear wall, chassis, running gear and additional equipment as needed. The long-term performance and economy of these tipper trailers is unbeatable.

What's SUNSKY trailers' advantages?

1. Use famous brand Hvya cylinder. Greatly improve the efficiency of unloading and safety of lifting. Save your time and money.

2. Opting high tensile low carbon alloy Q345B Steel. I beam welded by automotive arc-submerge process. Easily maintain and keep a longer lifespan.

3.Heavy duty and extra durability design. We can design and produce the semi dump trailer as clients ’requirements.

4.Use advanced over load design and welding technology for the chassis. Ensure the strong of trailer body. Make sure the tipper trailer still in good condition even in small overloading. The payload can be design max to 70 tons.

Specification

Style 2-Axle U shape Tipper Trailer
Dimension(L*W*H) 9060*2600*3450 (mm)
Inner Size(L*W*H) 8110*2480*1490(mm)
Body materials BS700MC high tensible 4mm
Thickness 6mm/ 8mm
Payload(kgs) 30000
Volume(CBM) 20 TO 40 CBM
Tare weight(kgs) 9200
Kingpin JOST 3.5” bolt-in
Landing gear JOST 19”
Tire and rim 12R22.5 (7 sets)
Axle BPW brand 12Ton or Fuwa Brand
Suspension Spring suspension with 8 pcs of leaf spring
Brake system Dual line with WABCO brand Re-6 emergency relay valve, MBA brand T30/30 air chamber, 46L air tank
Air Chamber MBA T30/30
Electric system One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable
Hydraulic system HYVA Brand

Quality guarantee

1. Spare parts support services.

2. Two years free warranty terms for the I beam,three to six month free warranty terms for the Axles,suspension etc.

3. Able to custom-built design as your requirment,ensure to meet your local road regulation.

4. More than 30 years experiences in trailer and truck industrial,exported to more than 30 countries in Africa,Southeast Asia.
